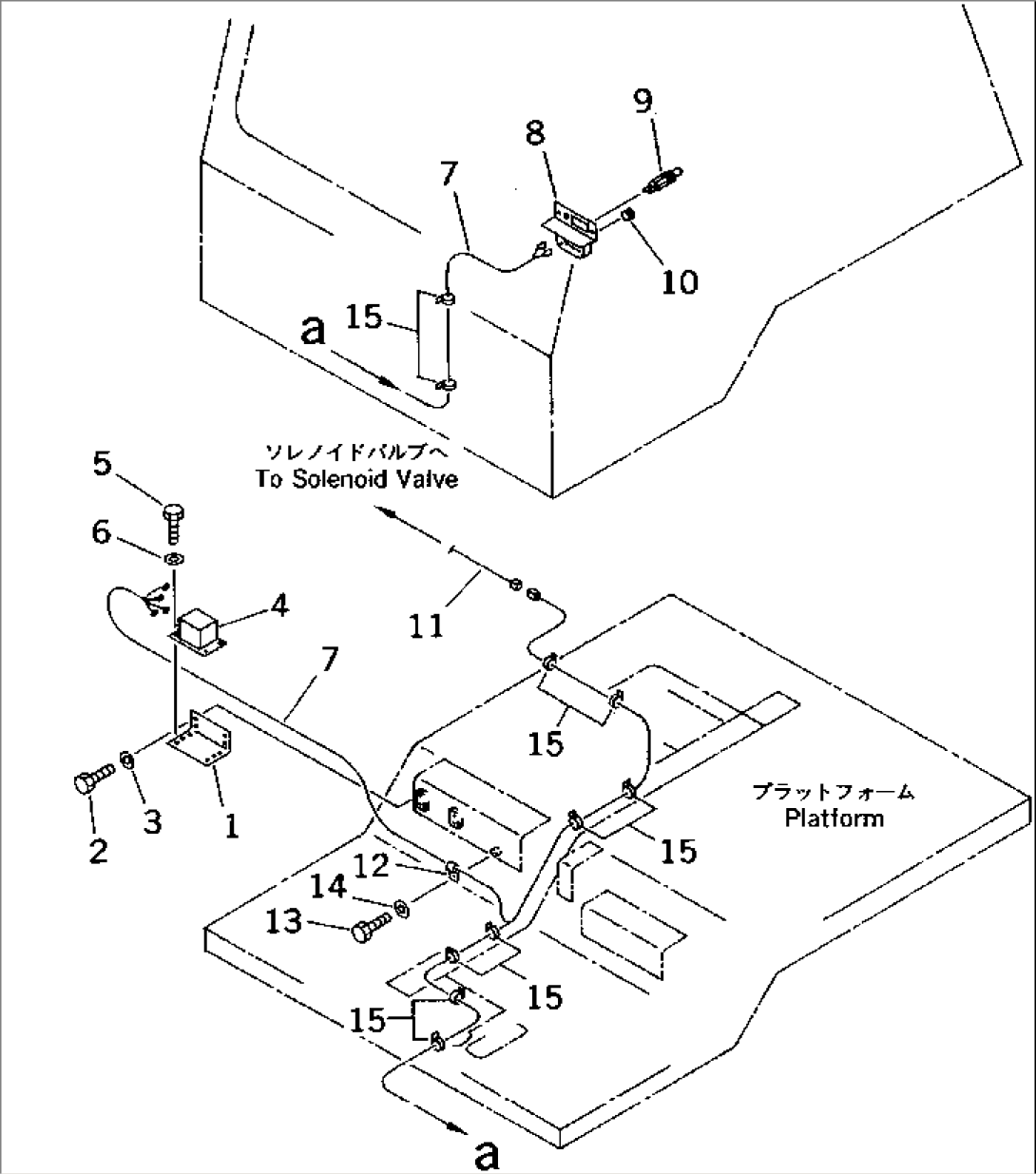

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-95-63360 | BRACKET | 2202- | |
| 2 | 01010-51020 | BOLT | 2202- | |
| 3 | 01643-31032 | WASHER | 2202- | |
| 4 | 581-96-19551 | TIMER | 2202- | |
| 5 | 01010-50616 | BOLT | 2202- | |
| 6 | 01643-30623 | WASHER | 2202- | |
| 7 | 561-95-63380 | WIRING HARNESS | 2202- | |
| 8 | 561-95-62330 | BRACKET | 2202- | |
| 9 | 561-95-63370 | SWITCH | 2202- | |
| 10 | 09415-01008 | CAP | 2202- | |
| 11 | 566-06-81890 | CABLE | 2202- | |
| 12 | 08036-10814 | CLIP | 2202- | |
| 13 | 01010-51016 | BOLT | 2202- | |
| 14 | 01643-31032 | WASHER | 2202- | |
| 15 | 08034-00519 | BAND | 2202- |
