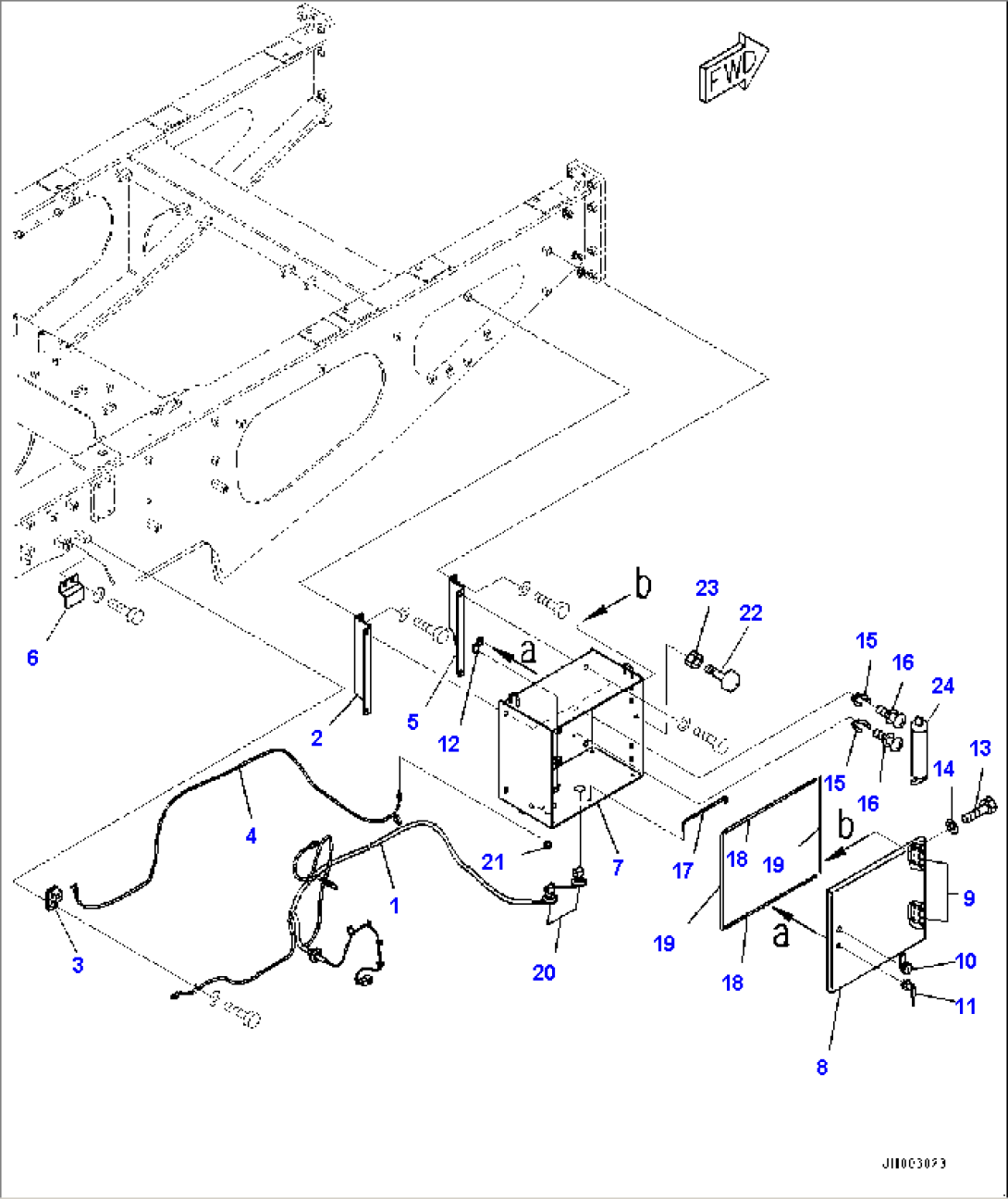

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8234-06-9151 | Wiring Harness | 2616-@ | |
| 2 | 8234-70-3130 | Bracket | 2616-@ | |
| 3 | 8234-70-3190 | Joint | 2616-@ | |
| 4 | 8240-70-9310 | Hose | 2616-@ | |
| 5 | 8240-70-9360 | Bracket | 2616-@ | |
| 6 | 8240-75-7150 | Cover | 2616-@ | |
| 7 | 8234-70-3112 | Case | 2833-@ | |
| 7 | 8234-70-3111 | Case | 2616-2832 | |
| 8 | 8234-70-3120 | Cover | 2616-@ | |
| 9 | 20Y-54-74161 | Hinge, Welded | 2616-@ | |
| 10 | 205-60-71220 | Lock Assembly | 2616-@ | |
| 11 | 8255-06-4790 | Handle | 2616-@ | |
| 12 | 8240-54-1470 | Plate | 2616-@ | |
| 13 | 01010-81025 | Bolt | 2616-@ | |
| 14 | 01643-31032 | Washer | 2616-@ | |
| 15 | 203-54-63230 | Clamp | 2616-@ | |
| 16 | 01023-10614 | Screw | 2616-@ | |
| 17 | 20Y-54-29232 | Bar | 2616-@ | |
| 18 | 8240-54-1481 | Seal | 2616-@ | |
| 19 | 8234-54-2370 | Seal | 2616-@ | |
| 20 | 08037-03614 | Grommet | 2616-2832 | |
| 21 | 08037-01610 | Grommet | 2616-@ | |
| 22 | 20Y-54-11611 | Stopper | 2616-@ | |
| 23 | 01580-11008 | Nut | 2616-@ | |
| 24 | 8234-70-3240 | Pump, Grease | 2616-@ |
