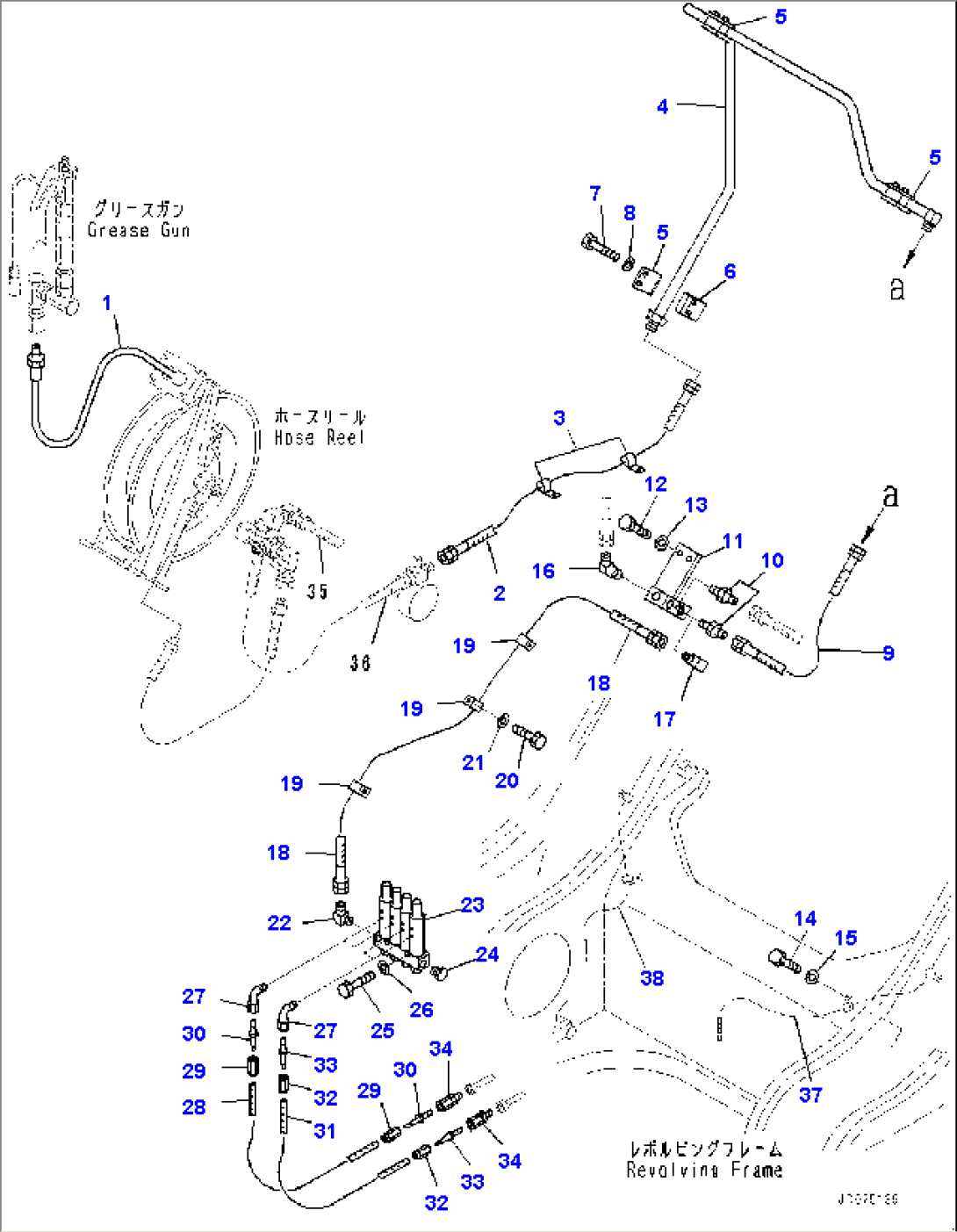

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21T-68-72450 | Hose | 35201- | |
| 2 | 07086-00411 | Hose, Taper Seal Type | 35201- | |
| 3 | 04434-52312 | Clip | 35417- | |
| 3 | 04434-52512 | Clip | 35201-35416 | |
| 4 | 21N-68-37560 | Tube | 35201- | |
| 5 | 203-973-5660 | Clamp | 35201- | |
| 6 | 203-973-5720 | Seat | 35201- | |
| 7 | 01010-81055 | Bolt | 35201- | |
| 8 | 01643-31032 | Washer | 35201- | |
| 9 | 07086-004A4 | Hose, Taper Seal Type | 35201- | |
| 10 | 07238-10424 | Connector | 35201- | |
| 11 | 21N-68-37570 | Block | 35201- | |
| 12 | 01010-81030 | Bolt | 35201- | |
| 13 | 01643-31032 | Washer | 35201- | |
| 14 | 01010-81020 | Bolt | 35201- | |
| 15 | 01643-31032 | Washer | 35201- | |
| 16 | 23S-44-34140 | Elbow | 35201- | |
| 17 | 195-04-12280 | Elbow | 35201- | |
| 18 | 07086-00416 | Hose, Taper Seal Type | 35201- | |
| 19 | 04434-52511 | Clip | 35201- | |
| 20 | 01010-81020 | Bolt | 35201- | |
| 21 | 01643-31032 | Washer | 35201- | |
| 22 | 566-01-61190 | Elbow | 35201- | |
| 23 | 561-95-37450 | Injector Assembly | 35201- | |
| 24 | 581-96-19590 | Plug | 35201- | |
| 25 | 01010-81050 | Bolt | 35201- | |
| 26 | 01643-31032 | Washer | 35201- | |
| 27 | 561-95-63250 | Elbow | 35201- | |
| 28 | 21N-68-32460 | Hose | 35201- | |
| 29 | 425-S95-2140 | Sleeve | 35201- | |
| 30 | 425-S95-2160 | Hose Stud | 35201- | |
| 31 | 425-S95-1280 | Hose | 35201- | |
| 32 | 425-S95-2140 | Sleeve | 35201- | |
| 33 | 425-S95-2160 | Hose Stud | 35201- | |
| 34 | 561-95-63310 | Connector | 35201- | |
| 37 | (21N-68-32540) | Hose | - | |
| 38 | (21N-68-32530) | Hose | - |
