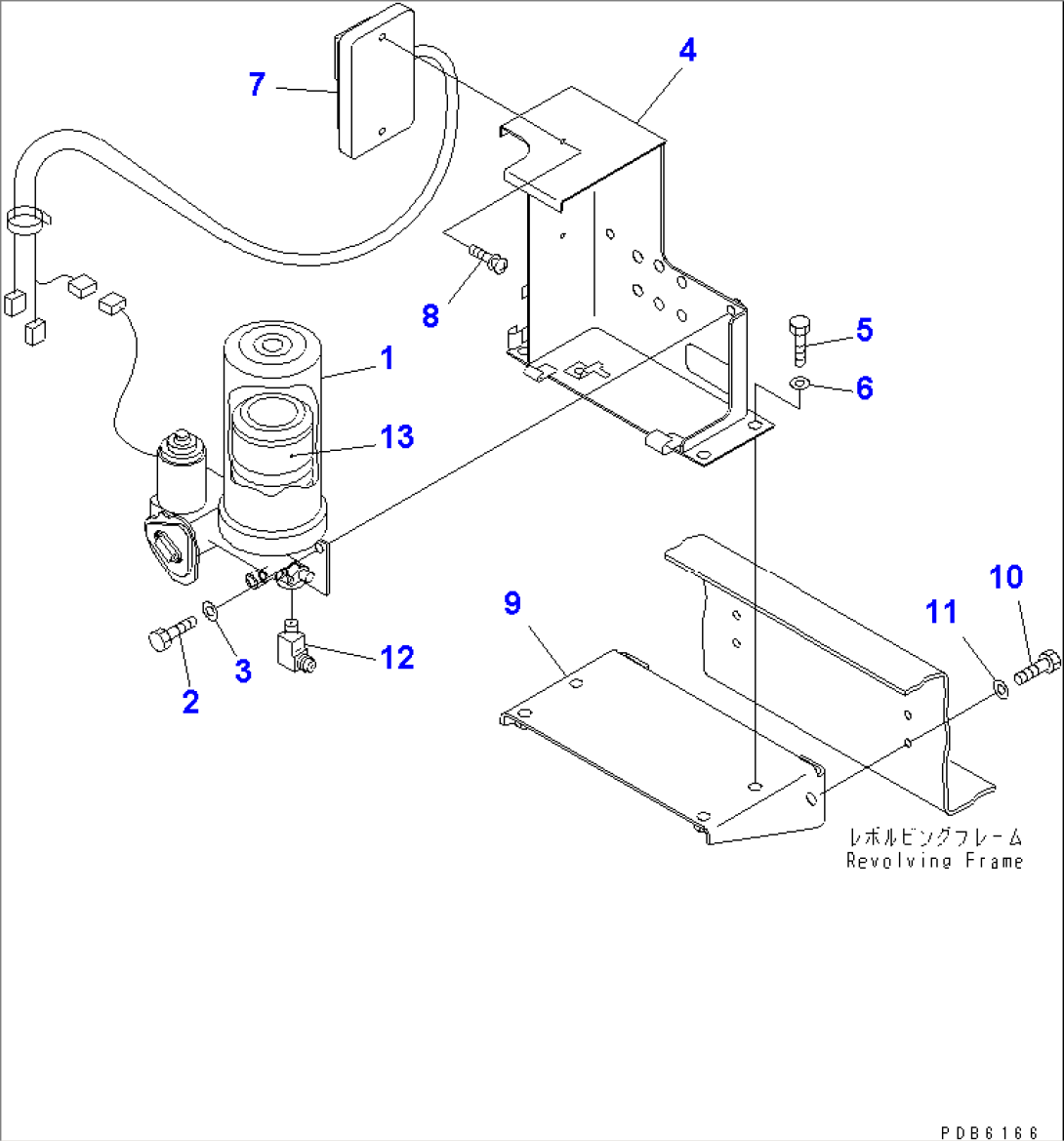

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-06-22571 | PUMP A. | 12689- | |
| 20Y-06-22570 | PUMP ASS'Y | 10001-12688 | ||
| 2 | 01010-81025 | BOLT | 10001- | |
| 3 | 01643-31032 | WASHER | 10001- | |
| 4 | 208-70-65110 | BRACKET | 10001- | |
| 5 | 01010-81230 | BOLT | 10001- | |
| 6 | 01643-31232 | WASHER | 10001- | |
| 7 | 208-70-65131 | CONTROLLER | 12689- | |
| 208-70-65130 | CONTROLLER | 10001-12688 | ||
| 8 | 01023-10512 | SCREW | 10001- | |
| 9 | 208-70-65120 | BRACKET | 10001- | |
| 10 | 01010-81230 | BOLT | 10001- | |
| 11 | 01643-31232 | WASHER | 10001- | |
| 12 | 203-62-12330 | ELBOW | 10001- | |
| 13 | 20Y-70-25480 | CARTRIDGE | 10001- |
