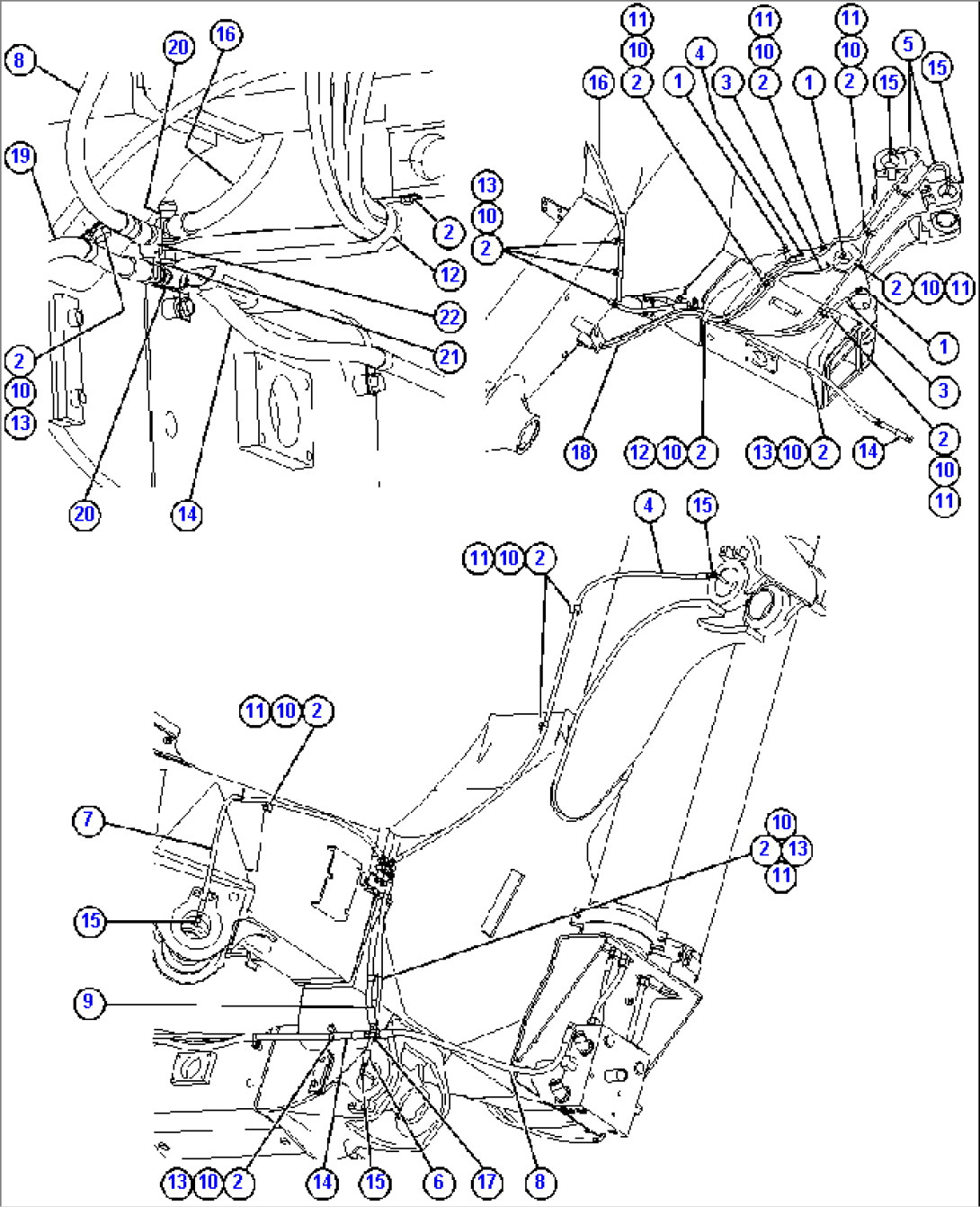

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | WB0252 | FITTING, ELBOW - 90 DEG | ||
| 2 | 01643-31032 | WASHER - M10 | ||
| 3 | HA5870 | HOSE (SEE REF NO 15 ON FOLLOWING PAGE) | ||
| 4 | HA5565 | HOSE (SEE REF NO 47 ON FOLLOWING PAGE) | ||
| 5 | HA5876 | HOSE (SEE REF NO 48 ON FOLLOWING PAGE) | ||
| 6 | HA5552 | HOSE (SEE REF NO 18 ON FOLLOWING PAGE) | ||
| 7 | HA5842 | HOSE (SEE REF NO 49 ON FOLLOWING PAGE) | ||
| 8 | HA6863 | HOSE (SEE REF NO 46 ON FOLLOWING PAGE) | ||
| 9 | HA5559 | HOSE (SEE REF NO 45 ON FOLLOWING PAGE) | ||
| 10 | MM0036 | CAPSCREW - M10 X 1.50 X 20 | ||
| 11 | VN9907 | CLAMP, VINYL | ||
| 12 | TF6924 | CLAMP, VINYL | ||
| 13 | TG2568 | CLAMP, VINYL | ||
| 14 | HA6449 | HOSE | ||
| 15 | WA6192 | FITTING, ELBOW - 90 DEG | ||
| 16 | HA6498 | HOSE | ||
| 17 | WB0418 | FITTING, TEE | ||
| 18 | VH5017 | TYRAP | ||
| 19 | HA5844 | HOSE | ||
| 20 | WB0384 | FITTING, TEE | ||
| 21 | WB0418 | FITTING, TEE | ||
| 22 | WB0375 | FITTING, ELBOW - 90 DEG |
