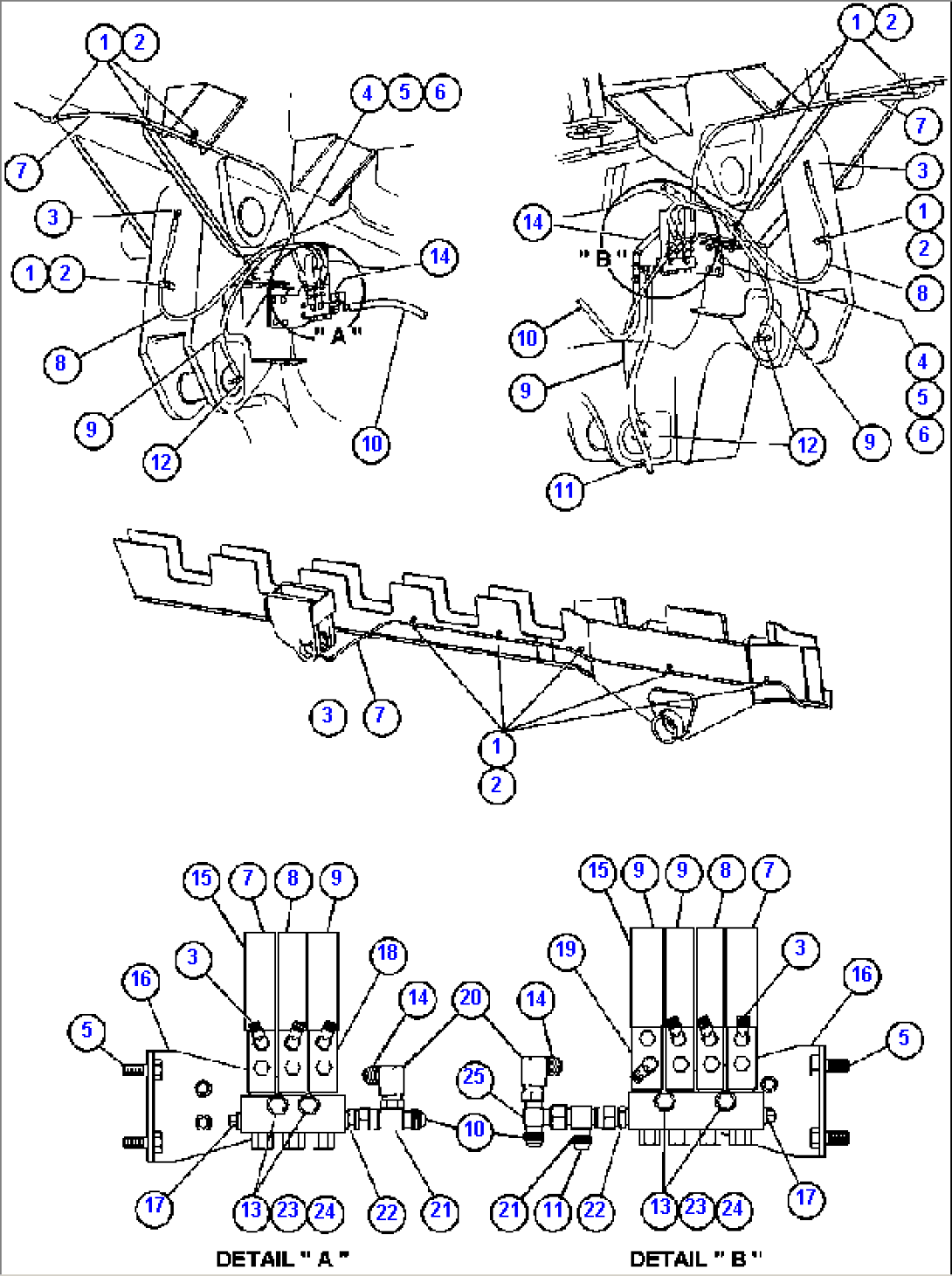

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | MM0036 | CAPSCREW - M10 X 1.50 X 20 | ||
| 2 | VN9907 | CLAMP, VINYL | ||
| 3 | WB0252 | FITTING, ELBOW - 90 DEG | ||
| 4 | EF8830 | BRACKET | ||
| 5 | MM0032 | CAPSCREW - M12 X 1.75 X 30 | ||
| 6 | MM0462 | FLAT WASHER - M12 | ||
| 7 | HA5903 | HOSE | ||
| 8 | HA5842 | HOSE | ||
| 9 | HA6834 | HOSE | ||
| 10 | HA6580 | HOSE | ||
| 11 | HA5568 | HOSE | ||
| 12 | WA6192 | FITTING, ELBOW - 90 DEG | ||
| 13 | MM0610 | CAPSCREW - M10 X 1.50 X 50 | ||
| 14 | HA6199 | HOSE | ||
| 15 | VW7990 | CAP, PROTECTIVE | ||
| 16 | EF8837 | BRACKET | ||
| 17 | C5770 | PLUG, PIPE | ||
| 18 | TA4410 | INJECTOR | ||
| 19 | VW7989 | INJECTOR | ||
| 20 | WB0375 | FITTING, ELBOW - 90 DEG | ||
| 21 | WB0384 | FITTING, TEE | ||
| 22 | WB0462 | FITTING, STRAIGHT | ||
| 23 | MM0178 | NUT - M10 X 1.50 | ||
| 24 | MM0461 | FLAT WASHER - M10 | ||
| 25 | WB0391 | FITTING, TEE |
