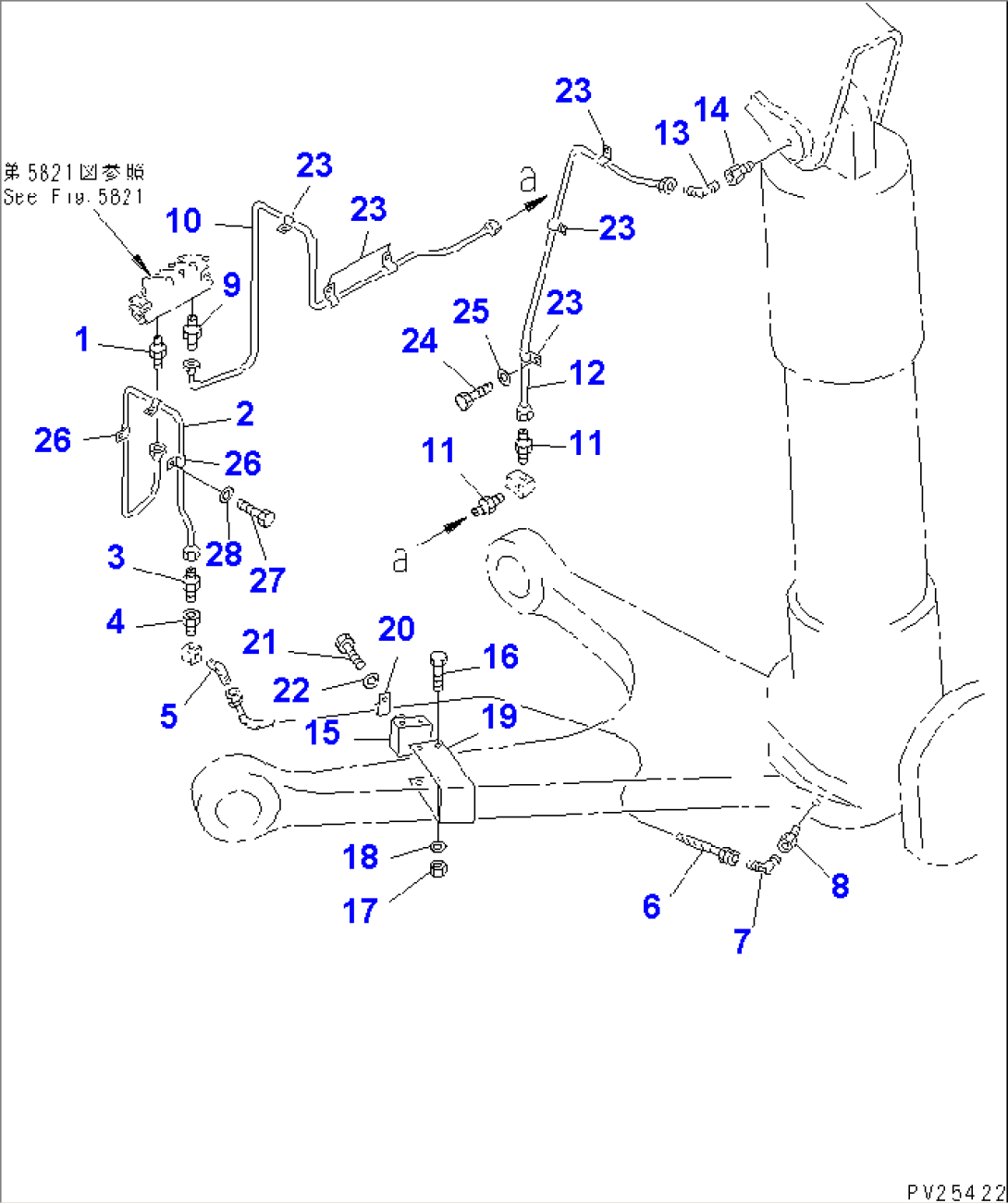

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-09-12110 | CONNECTOR | 1001- | |
| 2 | 566-95-6A370 | TUBE | 1001- | |
| 3 | 423-09-12110 | CONNECTOR | 1001- | |
| 4 | 07326-10201 | ADAPTER | 1001- | |
| 5 | 567-35-12160 | ELBOW | 1001- | |
| 6 | 07123-40210 | HOSE | 1001- | |
| 7 | 569-35-41470 | ELBOW | 1001- | |
| 8 | 562-95-13150 | NIPPLE | 1001- | |
| 9 | 423-09-12110 | CONNECTOR | 1001- | |
| 10 | 566-95-6A620 | TUBE | 1001- | |
| 11 | 423-09-12110 | CONNECTOR | 1001- | |
| 12 | 566-95-6A650 | TUBE | 1001- | |
| 13 | 421-09-12540 | ELBOW | 1001- | |
| 14 | 566-52-12210 | NIPPLE | 1001- | |
| 15 | 566-95-6A150 | BRACKET | 1001- | |
| 16 | 01010-51095 | BOLT | 1001- | |
| 17 | 01580-11008 | NUT | 1001- | |
| 18 | 01643-31032 | WASHER | 1001- | |
| 19 | 566-95-6A140 | BRACKET | 1001- | |
| 20 | 04434-51910 | CLIP | 1001- | |
| 21 | 01010-51020 | BOLT | 1001- | |
| 22 | 01643-31032 | WASHER | 1001- | |
| 23 | 04434-50610 | CLIP | 1001- | |
| 24 | 01010-51020 | BOLT | 1001- | |
| 25 | 01643-31032 | WASHER | 1001- | |
| 26 | 04434-50610 | CLIP | 1001- | |
| 27 | 01010-51020 | BOLT | 1001- | |
| 28 | 01643-31032 | WASHER | 1001- |
