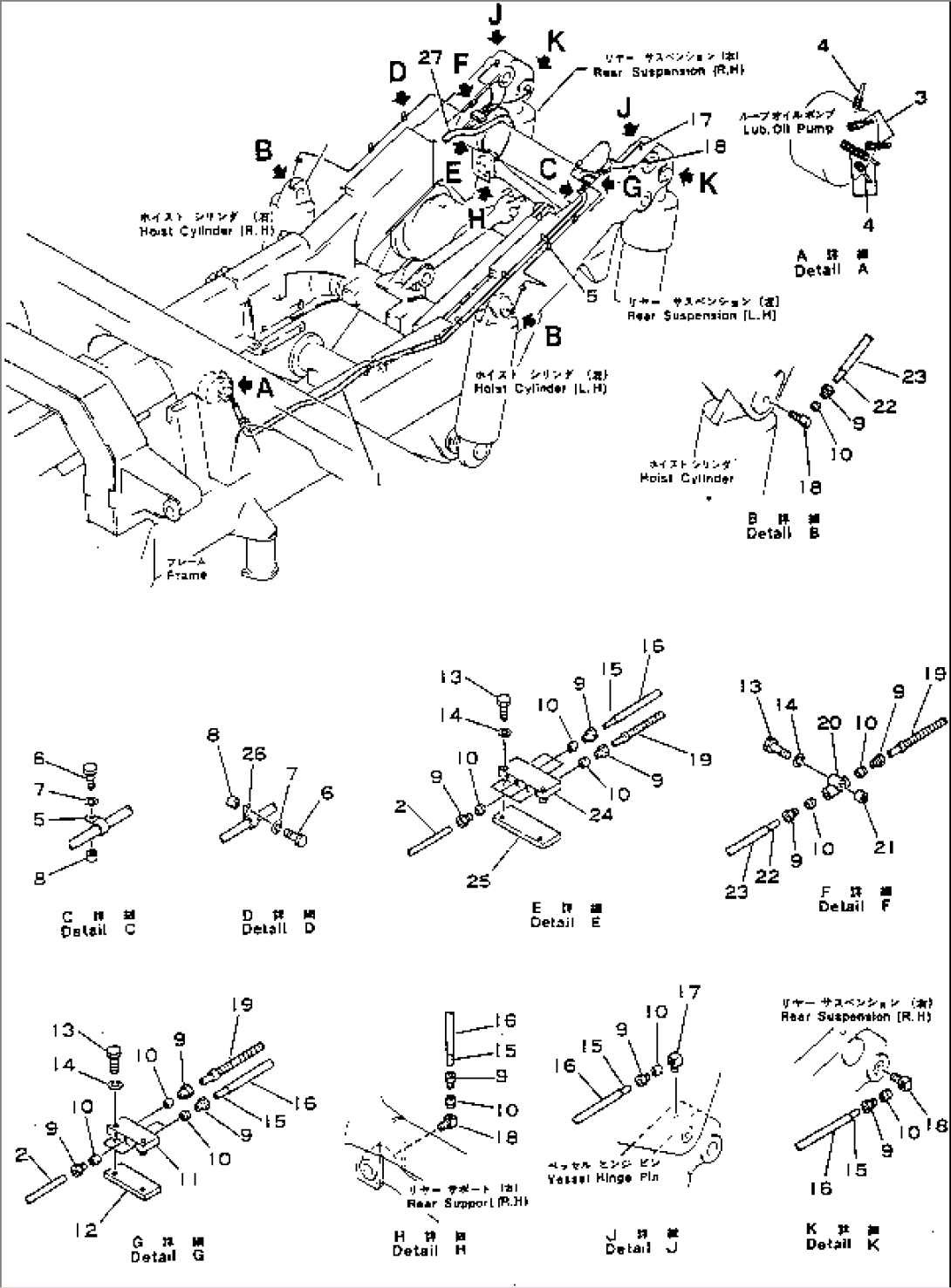

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-95-32001 | LUBRICATION ASS'Y | 1002- | ||
| 1 | 08015-01035 | CONDUIT | 1002- | |
| 2 | 566-95-32870 | TUBE | 1002- | |
| 3 | 566-95-32170 | PUMP ASS'Y,(BLUE) | 1002- | |
| 4 | 566-95-32190 | PUMP ASS'Y,(ORANGE) | 1002- | |
| 5 | 08036-02514 | CLIP | 1002- | |
| 6 | 01010-51016 | BOLT | 1002- | |
| 7 | 01602-21030 | WASHER | 1002- | |
| 8 | 01571-01016 | SEAT | 1002- | |
| 9 | 566-95-32380 | BUSHING | 1002- | |
| 10 | 566-95-32390 | SLEEVE | 1002- | |
| 11 | 566-95-32370 | JUNCTION,3-WAY | 1002- | |
| 12 | 566-95-32560 | SEAT | 1002- | |
| 13 | 01010-50625 | BOLT | 1002- | |
| 14 | 01602-20619 | WASHER | 1002- | |
| 15 | 566-95-32880 | TUBE | 1002- | |
| 16 | 566-95-32930 | TUBE | 1002- | |
| 17 | 566-95-32220 | ELBOW | 1002- | |
| 18 | 566-95-32260 | ELBOW | 1002- | |
| 19 | 566-95-32320 | HOSE,500MM | 1002- | |
| 20 | 566-95-32610 | JUNCTION,2-WAY | 1002- | |
| 21 | 01571-00609 | SEAT | 1002- | |
| 22 | 566-95-32490 | TUBE ASS'Y,(4X2000MM) | 1002- | |
| 23 | 566-95-32510 | TUBE ASS'Y,(6X2000M/M) | 1002- | |
| 24 | 566-95-32450 | JUNCTION,4-WAY | 1002- | |
| 25 | 566-95-32550 | SEAT | 1002- | |
| 26 | 08036-10814 | CLIP | 1002- | |
| 27 | (08015-01945) | CONDUIT | 1002- |
