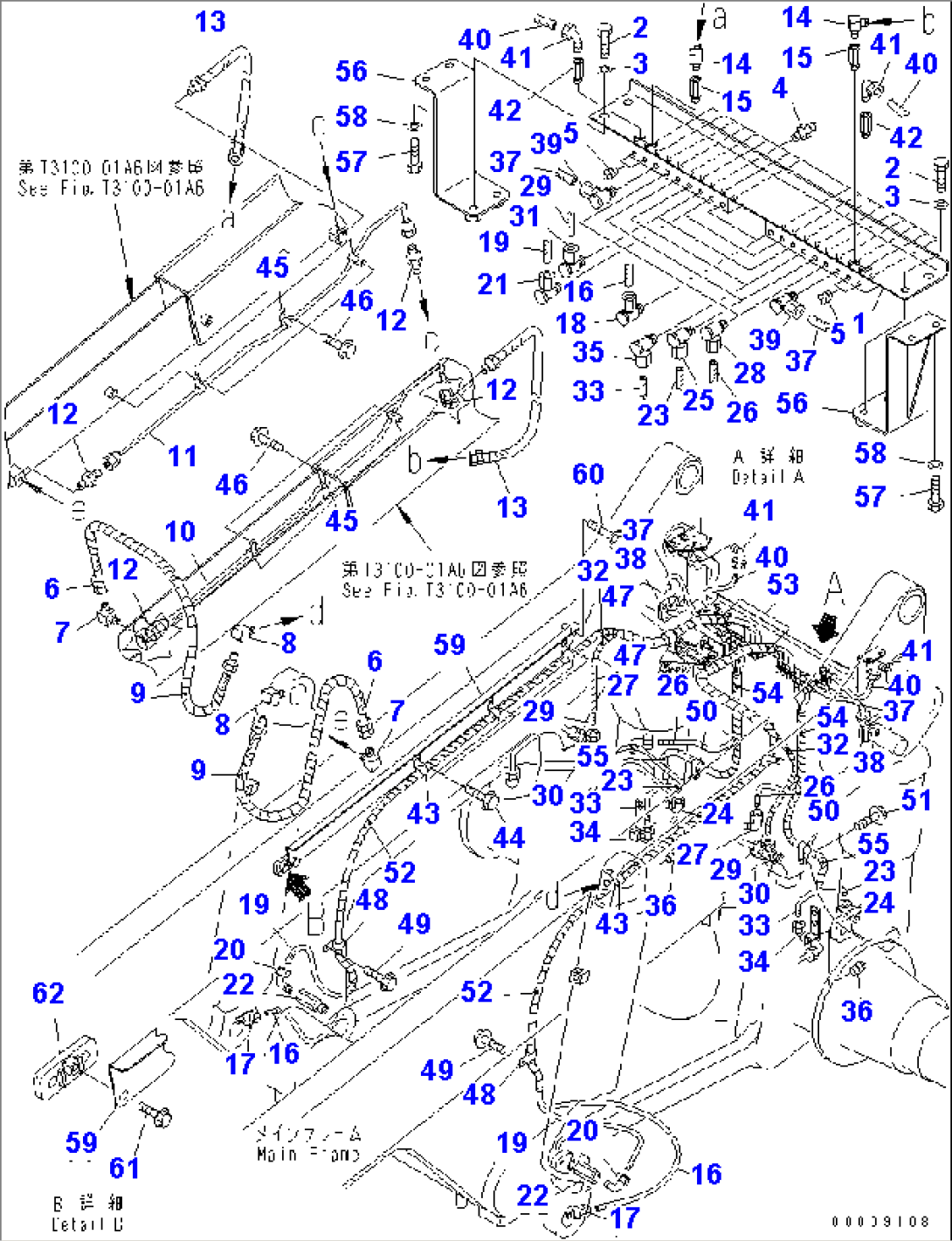

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-52-63130 | BRACKET | 7001- | |
| 2 | 01010-81025 | BOLT | 7001- | |
| 3 | 01643-31032 | WASHER | 7001- | |
| 4 | 07020-00000 | FITTING | 7001- | |
| 5 | 07042-70108 | PLUG | 7001- | |
| 6 | 425-70-13180 | HOSE | 7001- | |
| 7 | 426-70-13270 | ELBOW | 7001- | |
| 8 | 569-95-84690 | ELBOW | 7001- | |
| 9 | 08210-01207 | SPIRAL TUBE | 7001- | |
| 10 | 569-95-84660 | TUBE | 7001- | |
| 11 | 569-95-84650 | TUBE | 7001- | |
| 12 | 423-09-12110 | CONNECTOR | 7001- | |
| 13 | 418-S95-2651 | HOSE | 7001- | |
| 14 | 426-70-13270 | ELBOW | 7001- | |
| 15 | 562-95-13150 | NIPPLE | 7001- | |
| 16 | 569-95-84710 | HOSE | 7001- | |
| 17 | 581-22-12660 | NIPPLE | 7001- | |
| 18 | 569-95-63520 | CONNECTOR | 7001- | |
| 19 | 569-95-84710 | HOSE | 7001- | |
| 20 | 581-52-12410 | ELBOW | 7001- | |
| 21 | 569-95-63520 | CONNECTOR | 7001- | |
| 22 | 562-95-13150 | NIPPLE | 7001- | |
| 23 | 569-95-64340 | HOSE | 7001- | |
| 24 | 581-52-12410 | ELBOW | 7001- | |
| 25 | 569-95-63520 | CONNECTOR | 7001- | |
| 26 | 569-95-64310 | HOSE | 7001- | |
| 27 | 581-52-12410 | ELBOW | 7001- | |
| 28 | 569-95-63520 | CONNECTOR | 7001- | |
| 29 | 569-95-64340 | HOSE | 7001- | |
| 30 | 581-52-12410 | ELBOW | 7001- | |
| 31 | 569-95-63520 | CONNECTOR | 7001- | |
| 32 | 08210-00605 | SPIRAL TUBE | 7001- | |
| 33 | 569-95-64350 | HOSE | 7001- | |
| 34 | 581-52-12410 | ELBOW | 7001- | |
| 35 | 569-95-63520 | CONNECTOR | 7001- | |
| 36 | 07042-70108 | PLUG | 7001- | |
| 37 | 569-95-84720 | HOSE | 7001- | |
| 38 | 581-52-12410 | ELBOW | 7001- | |
| 39 | 569-95-63520 | CONNECTOR | 7001- | |
| 40 | 569-95-84720 | HOSE | 7001- | |
| 41 | 581-52-12410 | ELBOW | 7001- | |
| 42 | 562-95-13150 | NIPPLE | 7001- | |
| 43 | 04434-51410 | CLIP | 7001- | |
| 44 | 01435-01016 | BOLT | 7001- | |
| 45 | 04434-50610 | CLIP | 7001- | |
| 46 | 01435-01016 | BOLT | 7001- | |
| 47 | 04434-51812 | CLIP | 7001- | |
| 48 | 04434-51410 | CLIP | 7001- | |
| 49 | 01435-01016 | BOLT | 7001- | |
| 50 | 04434-51412 | CLIP | 7001- | |
| 51 | 01435-01220 | BOLT | 7001- | |
| 52 | 08210-00620 | SPIRAL TUBE | 7001- | |
| 53 | 08210-01208 | SPIRAL TUBE | 7001- | |
| 54 | 08210-01204 | SPIRAL TUBE | 7001- | |
| 55 | 08210-00609 | SPIRAL TUBE | 7001- | |
| 56 | 569-52-83140 | BRACKET | 7001- | |
| 57 | 01010-81020 | BOLT | 7001- | |
| 58 | 01643-31032 | WASHER | 7001- | |
| 59 | 569-52-83150 | BRACKET | 7001- | |
| 60 | 01435-01250 | BOLT | 7001- | |
| 61 | 01435-01220 | BOLT | 7001- | |
| 62 | 569-52-83180 | BRACKET | 7001- |
