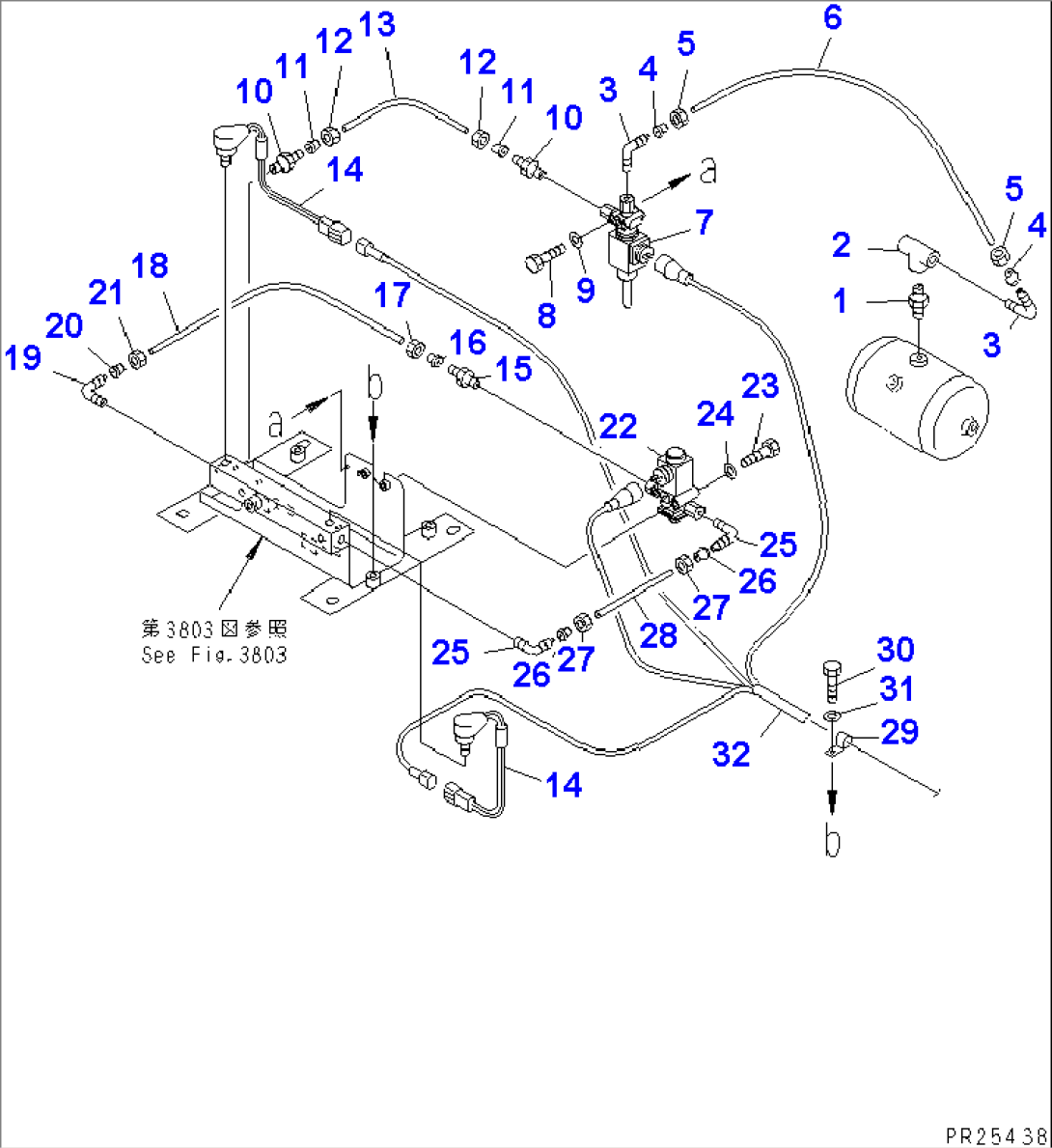

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07325-10200 | NIPPLE | 1001- | |
| 2 | 07324-10200 | TEE | 1001- | |
| 3 | 07834-00613 | ELBOW | 1001- | |
| 4 | 07831-00612 | SLEEVE | 1001- | |
| 5 | 07832-00614 | NUT | 1001- | |
| 6 | 07822-00607 | TUBE | 1001- | |
| 7 | 566-88-6H261 | VALVE | 2024- | |
| 7 | 566-88-6H260 | VALVE | 1001-2023 | |
| 8 | 01010-80855 | BOLT | 1001- | |
| 9 | 01643-30823 | WASHER | 1001- | |
| 10 | 07836-00613 | CONNECTOR | 1001- | |
| 11 | 07831-00612 | SLEEVE | 1001- | |
| 12 | 07832-00614 | NUT | 1001- | |
| 13 | 07822-00602 | TUBE | 1001- | |
| 14 | 569-06-61810 | SWITCH | 1001- | |
| 15 | 07836-00613 | CONNECTOR | 1001- | |
| 16 | 07831-00612 | SLEEVE | 1001- | |
| 17 | 07832-00614 | NUT | 1001- | |
| 18 | 07822-00603 | TUBE | 1001- | |
| 19 | 07834-00613 | ELBOW | 1001- | |
| 20 | 07831-00612 | SLEEVE | 1001- | |
| 21 | 07832-00614 | NUT | 1001- | |
| 22 | 561-88-65510 | VALVE | 1001- | |
| 23 | 01010-80860 | BOLT | 1001- | |
| 24 | 01643-30823 | WASHER | 1001- | |
| 25 | 07834-00613 | ELBOW | 1001- | |
| 26 | 07831-00612 | SLEEVE | 1001- | |
| 27 | 07832-00614 | NUT | 1001- | |
| 28 | 07822-00602 | TUBE | 1001- | |
| 29 | 04434-51210 | CLIP | 1001- | |
| 30 | 01010-81020 | BOLT | 1001- | |
| 31 | 01643-31032 | WASHER | 1001- | |
| 32 | 566-88-6H120 | WIRING HARNESS | 1001- |
