| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-44-87730 | BLOCK | 7169- | |
| 2 | 02782-10210 | ELBOW | 7169- | |
| 3 | 07002-21423 | O-RING | 7169- | |
| 4 | 02896-21008 | O-RING | 7169- | |
| 5 | 02781-0021D | UNION | 7169- | |
| 6 | 02789-00210 | PLUG | 7169- | |
| 7 | 01010-81070 | BOLT | 7169- | |
| 8 | 01643-31032 | WASHER | 7169- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 7 s/n 7001 8172
- Auto suspension piping
- Auto suspension piping (block)(#7169 )
Поиск по каталогу

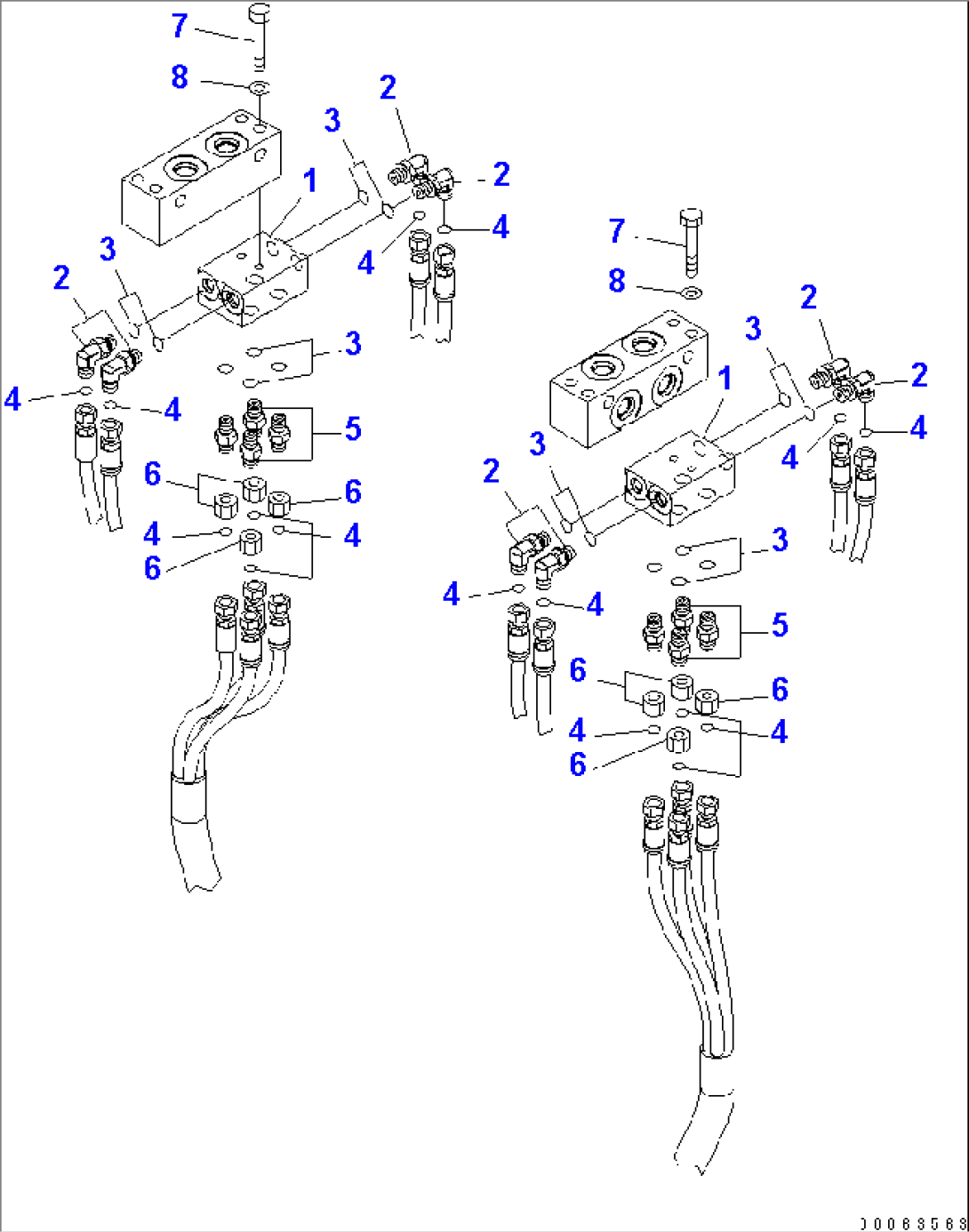

AUTO SUSPENSION PIPING (BLOCK)(#7169-)
