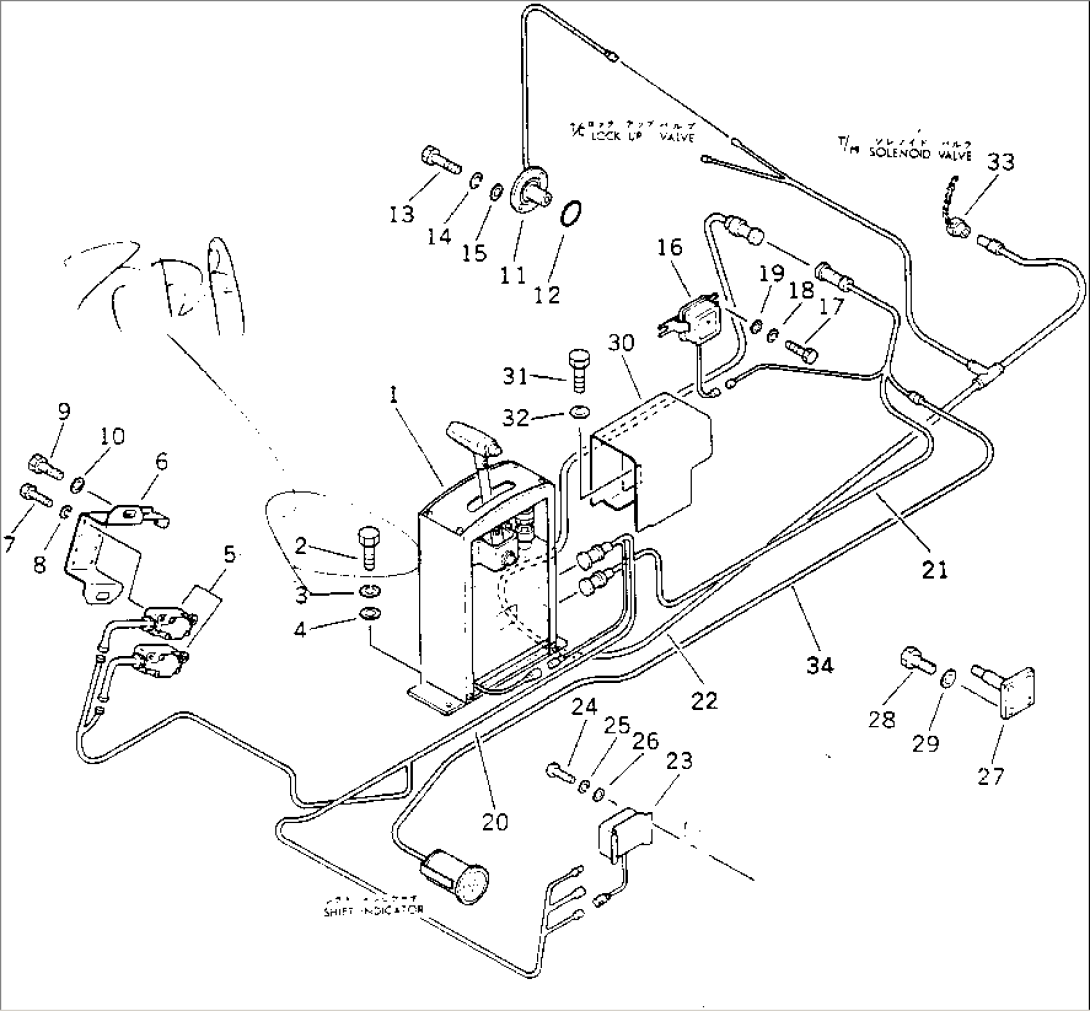

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7818-11-0001 | CONSOLE BOX ASS'Y | 1626- | |
| 1 | \0\7818-11-0000 | CONSOLE BOX ASS'Y | 1501-1625 | |
| 1 | \0\566-43-45300 | CONSOLE BOX ASS'Y | 1501-1625 | |
| 3 | 01602-21236 | WASHER | 1501- | |
| 4 | 01643-21232 | WASHER | 1501- | |
| 5 | 566-06-13763 | SWITCH | 1501- | |
| 6 | 566-43-45191 | BRACKET | 1501- | |
| 7 | 01010-50620 | BOLT | 1501- | |
| 8 | 01602-20619 | WASHER | 1501- | |
| 9 | 01010-51020 | BOLT | 1501- | |
| 10 | 01643-31032 | WASHER | 1501- | |
| 11 | 287-17-28610 | SENSOR,SPEED | 1501- | |
| 12 | 07000-63045 | O-RING | 1501- | |
| 13 | 01010-50830 | BOLT | 1501- | |
| 14 | 01602-20825 | WASHER | 1501- | |
| 15 | 01640-20816 | WASHER | 1501- | |
| 16 | 566-43-45171 | CONTROLLER | .- | |
| 16 | \0\566-43-45170 | CONTROLLER | 1501-. | |
| 17 | 01010-50616 | BOLT | 1501- | |
| 18 | 01602-20619 | WASHER | 1501- | |
| 19 | 01640-20610 | WASHER | 1501- | |
| 20 | 566-43-45132 | HARNESS | 1501- | |
| 21 | 566-43-45141 | HARNESS | 1501- | |
| 22 | 566-43-45290 | HARNESS | 1501- | |
| 23 | 566-43-45410 | RELAY | 1501- | |
| 24 | 01220-40425 | SCREW | 1501- | |
| 25 | 01601-20410 | WASHER | 1501- | |
| 26 | 01641-20405 | WASHER | 1501- | |
| 27 | 566-43-43211 | PIN | 1501- | |
| 28 | 01010-51225 | BOLT | 1501- | |
| 29 | 01643-31232 | WASHER | 1501- | |
| 30 | 566-43-45420 | COVER | 1501- | |
| 31 | 01010-51225 | BOLT | 1501- | |
| 32 | 01643-31232 | WASHER | 1501- | |
| 33 | 281-43-18270 | CAP | 1501- | |
| 34 | 566-43-45520 | WIRE HARNESS | 1501- |
