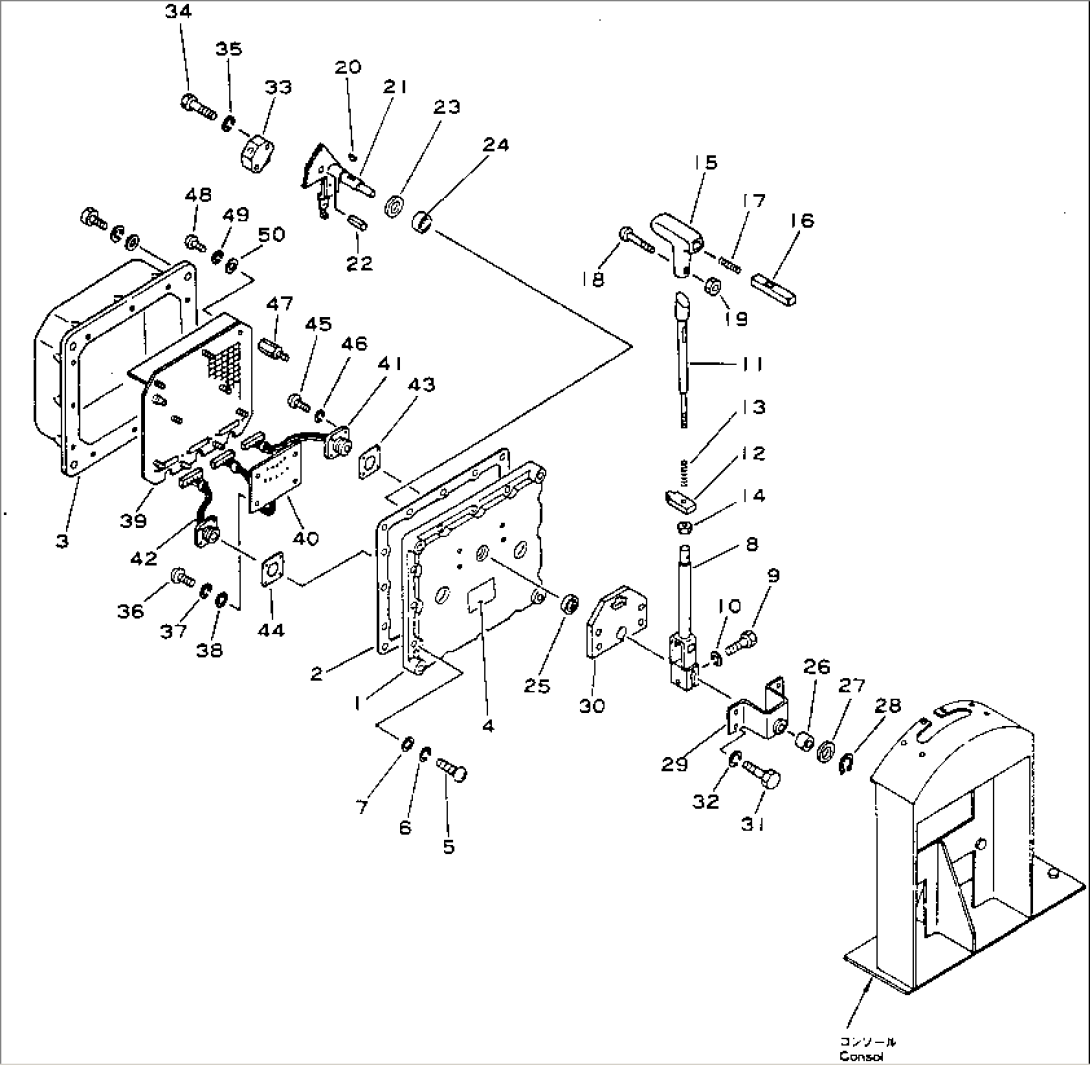

| Item | Part No. | Part Name | Qty | Serial No. |
| 569-17-21101 | CONTROLLER ASS'Y | 1002- | ||
| 1 | 287-17-21110 | BASE | 1002- | |
| 2 | 287-17-21120 | GASKET | 1002- | |
| 3 | 287-17-21130 | COVER | 1002- | |
| 4 | 287-17-21190 | PLATE | 1002- | |
| 5 | 01220-40620 | SCREW | 1002- | |
| 6 | 01602-20619 | WASHER | 1002- | |
| 7 | 01641-20608 | WASHER | 1002- | |
| 569-17-11200 | SHIFT LEVER ASS'Y | 1002- | ||
| 8 | 569-17-11220 | LEVER | 1002- | |
| 9 | 01010-50625 | BOLT | 1002- | |
| 10 | 01602-20619 | WASHER | 1002- | |
| 11 | 569-17-11230 | SHAFT | 1002- | |
| 12 | 287-17-11530 | PIN | 1002- | |
| 13 | 569-17-11240 | SPRING | 1002- | |
| 14 | 01580-10605 | NUT | 1002- | |
| 569-17-11210 | HANDLE | 1002- | ||
| 15 | \6\ | KNOB | 1002- | |
| 16 | \6\ | BUTTON | 1002- | |
| 17 | \6\ | SPRING | 1002- | |
| 18 | 569-17-11250 | SCREW | 1002- | |
| 19 | 569-17-11260 | NUT | 1002- | |
| 20 | 04010-00516 | KEY | 1002- | |
| 21 | 287-17-21220 | LEVER | 1002- | |
| 22 | 04025-01020 | PIN | 1002- | |
| 23 | 287-17-19710 | WASHER | 1002- | |
| 24 | 287-17-19440 | BEARING | 1002- | |
| 25 | 287-17-21390 | SEAL | 1002- | |
| 26 | 287-17-19430 | BEARING | 1002- | |
| 27 | 01643-12126 | WASHER | 1002- | |
| 28 | 04064-01210 | RING | 1002- | |
| 29 | 287-17-11261 | BRACKET | 1002- | |
| 30 | 287-17-11540 | PLATE | 1002- | |
| 31 | 01010-50620 | BOLT | 1002- | |
| 32 | 01602-20619 | WASHER | 1002- | |
| 33 | 287-17-11280 | DETENT | 1002- | |
| 34 | 01010-50620 | BOLT | 1002- | |
| 35 | 01602-20619 | WASHER | 1002- | |
| 36 | 01220-40410 | SCREW | 1002- | |
| 37 | 01601-20410 | WASHER | 1002- | |
| 38 | 01641-20405 | WASHER | 1002- | |
| 39 | 569-17-21311 | COMPUTER | 1002- | |
| 40 | 287-17-21340 | SENSOR | 1002- | |
| 41 | 287-17-21360 | HARNESS | 1002- | |
| 42 | 287-17-21350 | HARNESS | 1002- | |
| 43 | 287-17-11170 | GASKET | 1002- | |
| 44 | 287-17-11180 | GASKET | 1002- | |
| 45 | 01220-40310 | SCREW | 1002- | |
| 46 | 01601-20307 | WASHER | 1002- | |
| 47 | 287-17-21370 | SCREW | 1002- | |
| 48 | 01220-50310 | SCREW | 1002- | |
| 49 | 01601-40307 | WASHER | 1002- | |
| 50 | 01641-40305 | WASHER | 1002- |
