| Item | Part No. | Part Name | Qty | Serial No. |

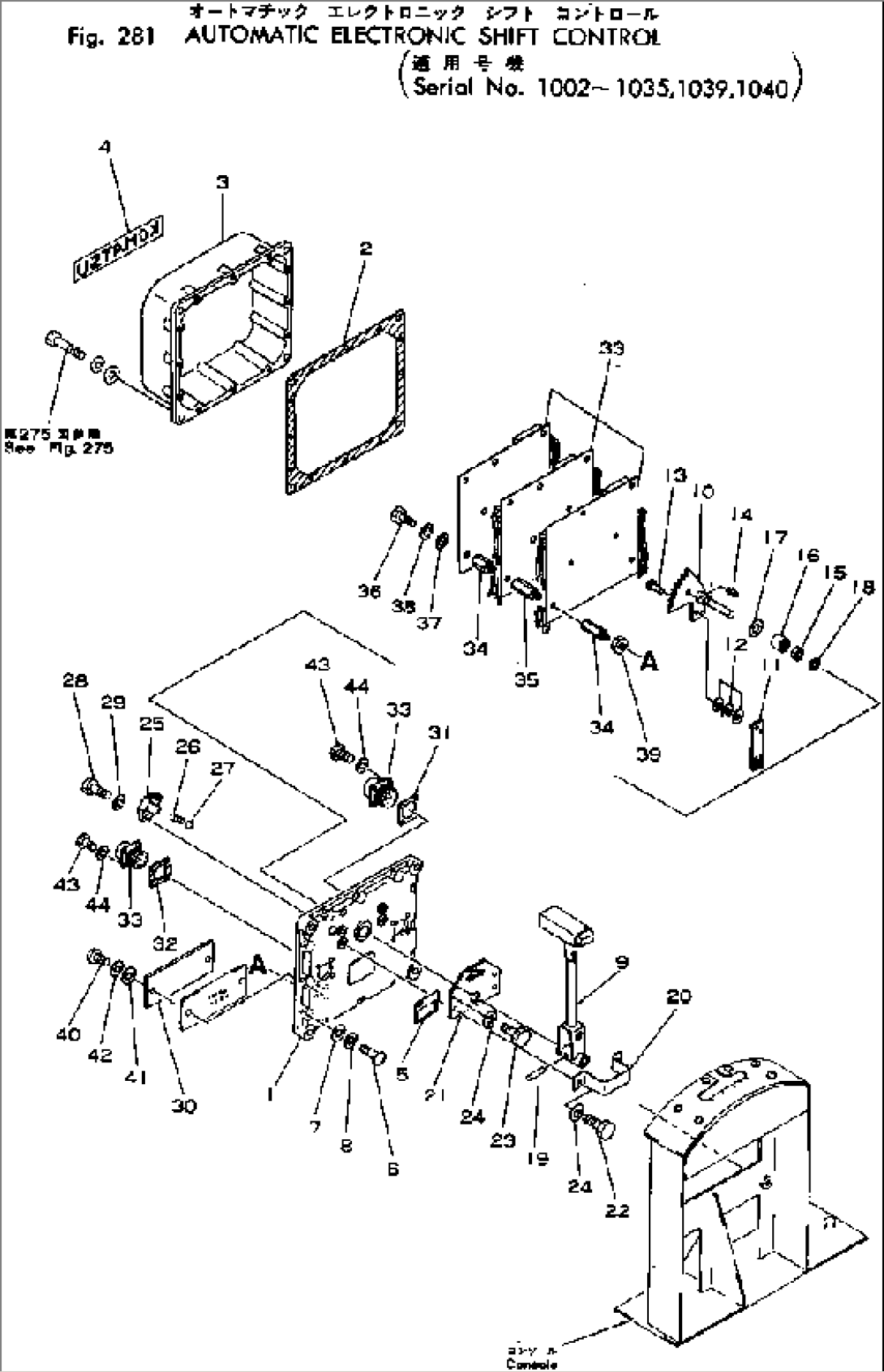

| 569-17-11100 | CONTROLLER ASS'Y | 1002-. | ||
| 1 | 287-17-11110 | BASE | 1002-. | |
| 2 | 287-17-11120 | GASKET | 1002-. | |
| 3 | 287-17-11130 | COVER | 1002-. | |
| 4 | 287-17-11140 | LOGO TYPE | 1002-. | |
| 5 | 287-17-11190 | PLATE | 1002-. | |
| 6 | 01220-40620 | SCREW | 1002-. | |
| 7 | 01641-20608 | WASHER | 1002-. | |
| 8 | 01602-20619 | WASHER | 1002-. | |
| 9 | 566-17-11210 | LEVER ASS'Y | 1002-. | |
| 287-17-11220 | LEVER | 1002-. | ||
| 10 | 287-17-11230 | LEVER | 1002-. | |
| 11 | 287-17-11240 | LEVER | 1002-. | |
| 12 | 01642-20405 | WASHER | 1002-. | |
| 13 | 04412-00418 | RIVET | 1002-. | |
| 14 | 04025-01020 | PIN | 1002-. | |
| 15 | 287-17-11250 | RETAINER | 1002-. | |
| 16 | 287-17-19410 | BEARING | 1002-. | |
| 17 | 287-17-19710 | WASHER | 1002-. | |
| 18 | 04064-01210 | RING | 1002-. | |
| 19 | 04025-00424 | PIN | 1002-. | |
| 20 | 287-17-11260 | BRACKET | 1002-. | |
| 21 | 566-17-11270 | PLATE | 1002-. | |
| 22 | 01010-50620 | BOLT | 1002-. | |
| 23 | 01010-50616 | BOLT | 1002-. | |
| 24 | 01602-20619 | WASHER | 1002-. | |
| 25 | 287-17-11280 | DETENT | 1002-. | |
| 26 | 195-15-15261 | SPRING | 1002-. | |
| 27 | 04260-00952 | BALL | 1002-. | |
| 28 | 01010-50620 | BOLT | 1002-. | |
| 29 | 01602-20619 | WASHER | 1002-. | |
| 30 | 287-17-11290 | SEAT | 1002-. | |
| 31 | 287-17-11170 | GASKET | 1002-. | |
| 32 | 287-17-11180 | GASKET | 1002-. | |
| 33 | 7841-43-9000 | CONTROLLER UNIT | 1002-. | |
| 34 | 08527-00415 | POLE | 1002-. | |
| 35 | 08527-00425 | POLE | 1002-. | |
| 36 | 01220-40410 | SCREW | 1002-. | |
| 37 | 01641-20405 | WASHER | 1002-. | |
| 38 | 01601-20410 | WASHER | 1002-. | |
| 39 | 01580-10403 | NUT | 1002-. | |
| 40 | 01220-40410 | SCREW | 1002-. | |
| 41 | 01641-20405 | WASHER | 1002-. | |
| 42 | 01601-20410 | WASHER | 1002-. | |
| 43 | 01220-40310 | SCREW | 1002-. | |
| 44 | 01601-20307 | WASHER | 1002-. |
