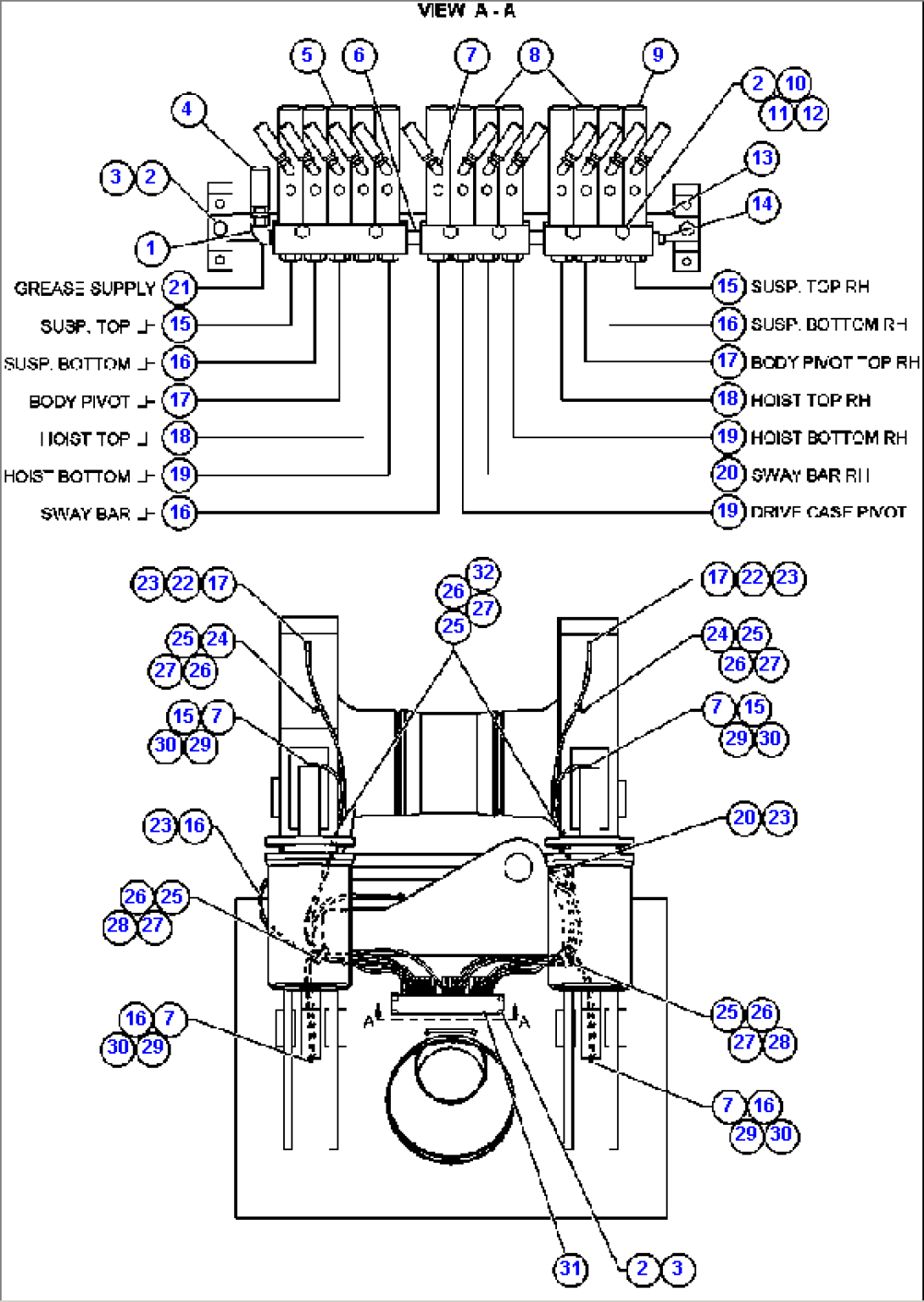

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | WB0262 | FITTING - 90 DEG | ||
| 2 | MM0471 | LOCKWASHER - M10 | ||
| 3 | MM0606 | CAPSCREW - M10 X 1.50 X 30 | ||
| 4 | HA6448 | HOSE | ||
| 5 | TA4411 | INJECTOR ASSEMBLY (1) | ||
| 6 | TB8803 | NIPPLE, CLOSE | ||
| 7 | WB0252 | FITTING - 90 DEG | ||
| 8 | VW7989 | INJECTOR ASSEMBLY (1) | ||
| 9 | VW7990 | CAP, INJECTOR | ||
| 10 | MM0461 | FLAT WASHER - M10 | ||
| 11 | MM0611 | CAPSCREW - M10 X 1.50 X 60 | ||
| 12 | MM0178 | NUT - M10 | ||
| 13 | EG0582 | PLATE, MOUNTING | ||
| 14 | C5770 | PLUG | ||
| 15 | HA0352 | HOSE | ||
| 16 | HA1413 | HOSE | ||
| 17 | VD4661 | HOSE | ||
| 18 | HA1438 | HOSE | ||
| 19 | HA2965 | HOSE | ||
| 20 | HA0570 | HOSE | ||
| 21 | HA6448 | HOSE | ||
| 22 | HC1580 | BUSHING, PIPE | ||
| 23 | WB0281 | FITTING - 45 DEG | ||
| 24 | VN9907 | CLAMP | ||
| 25 | MM0642 | STUD, WELD - M8 X 25 | ||
| 26 | MM0470 | LOCKWASHER - M8 | ||
| 27 | MM0177 | NUT - M8 | ||
| 28 | TC6058 | CLAMP | ||
| 29 | DC5608 | NIPPLE, CLOSE | ||
| 30 | C1231 | COUPLING, PIPE | ||
| 31 | EG0583 | PLATE COVE | ||
| 32 | VN9913 | CLAMP |
