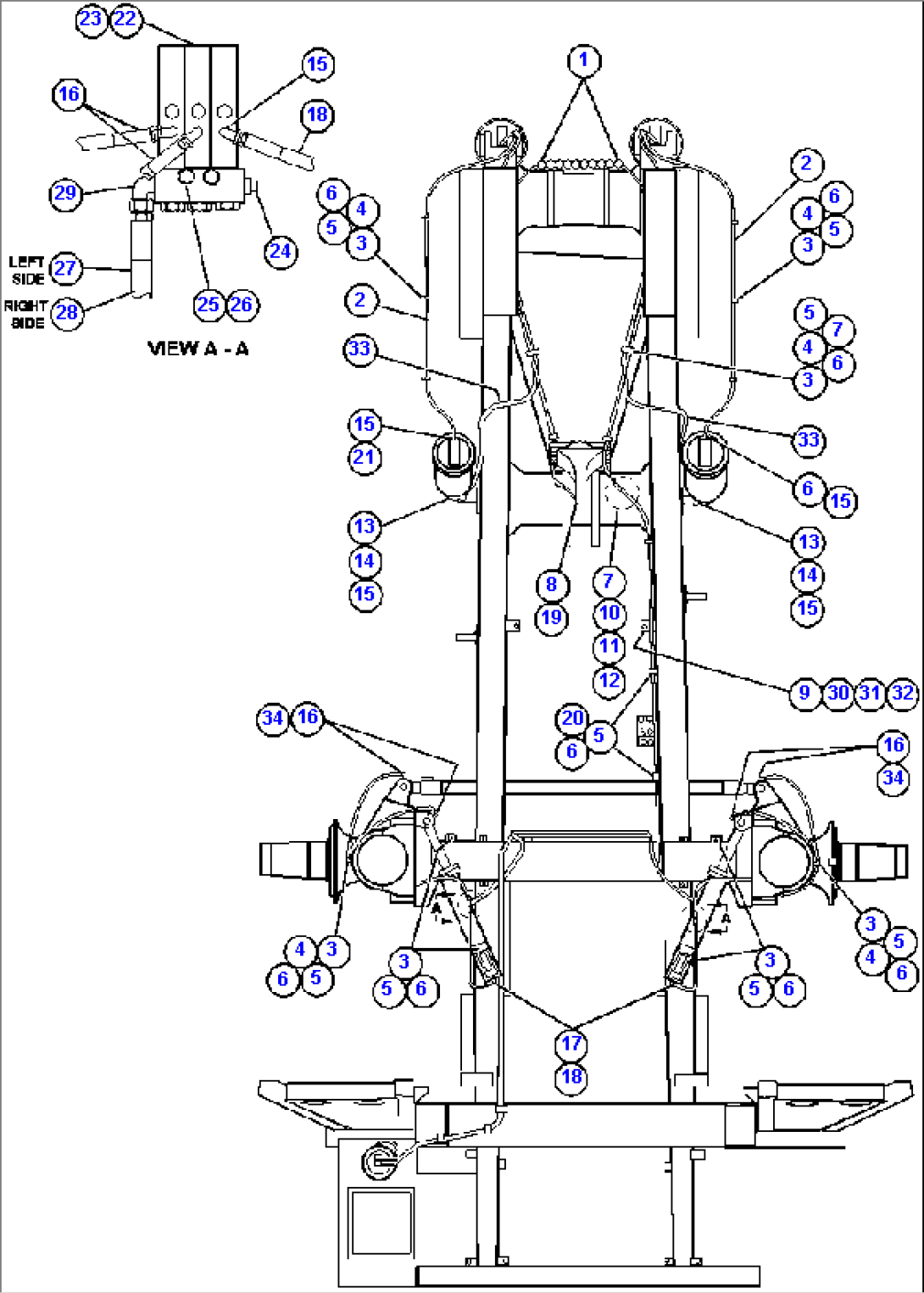

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VZ0598 | TYRAP | ||
| 2 | HA1438 | HOSE | ||
| 3 | VN9907 | CLAMP | ||
| 4 | MM0642 | STUD, WELD - M8 X 2.5 | ||
| 5 | MM0470 | LOCKWASHER - M8 | ||
| 6 | MM0177 | NUT - M8 | ||
| 7 | TF6925 | CLAMP | ||
| 8 | HA2965 | HOSE | ||
| 9 | EG1119 | BLOCK | ||
| 10 | HA6448 | HOSE | ||
| 11 | WB0403 | FITTING, UNION | ||
| 12 | HA7288 | HOSE | ||
| 13 | CD3705 | NIPPLE, LONG | ||
| 14 | C1231 | COUPLING, PIPE | ||
| 15 | WB0252 | FITTING - 90 DEG | ||
| 16 | HA3159 | HOSE | ||
| 17 | VM3972 | FITTING - 45 DEG | ||
| 18 | HA0570 | HOSE | ||
| 19 | WB0255 | FITTING - 90 DEG | ||
| 20 | TC6058 | CLAMP | ||
| 21 | WB0454 | ADAPTOR | ||
| 22 | TA4410 | INJECTOR ASSEMBLY (1) | ||
| 23 | VW7990 | CAP, INJECTOR | ||
| 24 | C5770 | PLUG | ||
| 25 | MM0609 | CAPSCREW - M10 X 1.50 X 45 | ||
| 26 | MM0471 | LOCKWASHER - M10 | ||
| 27 | HA5769 | HOSE - L.H. | ||
| 28 | HA5564 | HOSE - R.H. | ||
| 29 | WB0262 | FITTING - 90 DEG | ||
| 30 | WB1058 | REDUCER, O-RING | ||
| 31 | WB0576 | FITTING, O-RING | ||
| 32 | VN9908 | CLAMP | ||
| 33 | HA0994 | HOSE | ||
| 34 | WB0547 | FITTING - 45 DEG | ||
| NS|35 | NOTE: (1) ORDER VS1974 INJECTOR ASSEMBLY | |||
| NS|36 | FOR FIELD REPLACEMENT. |
