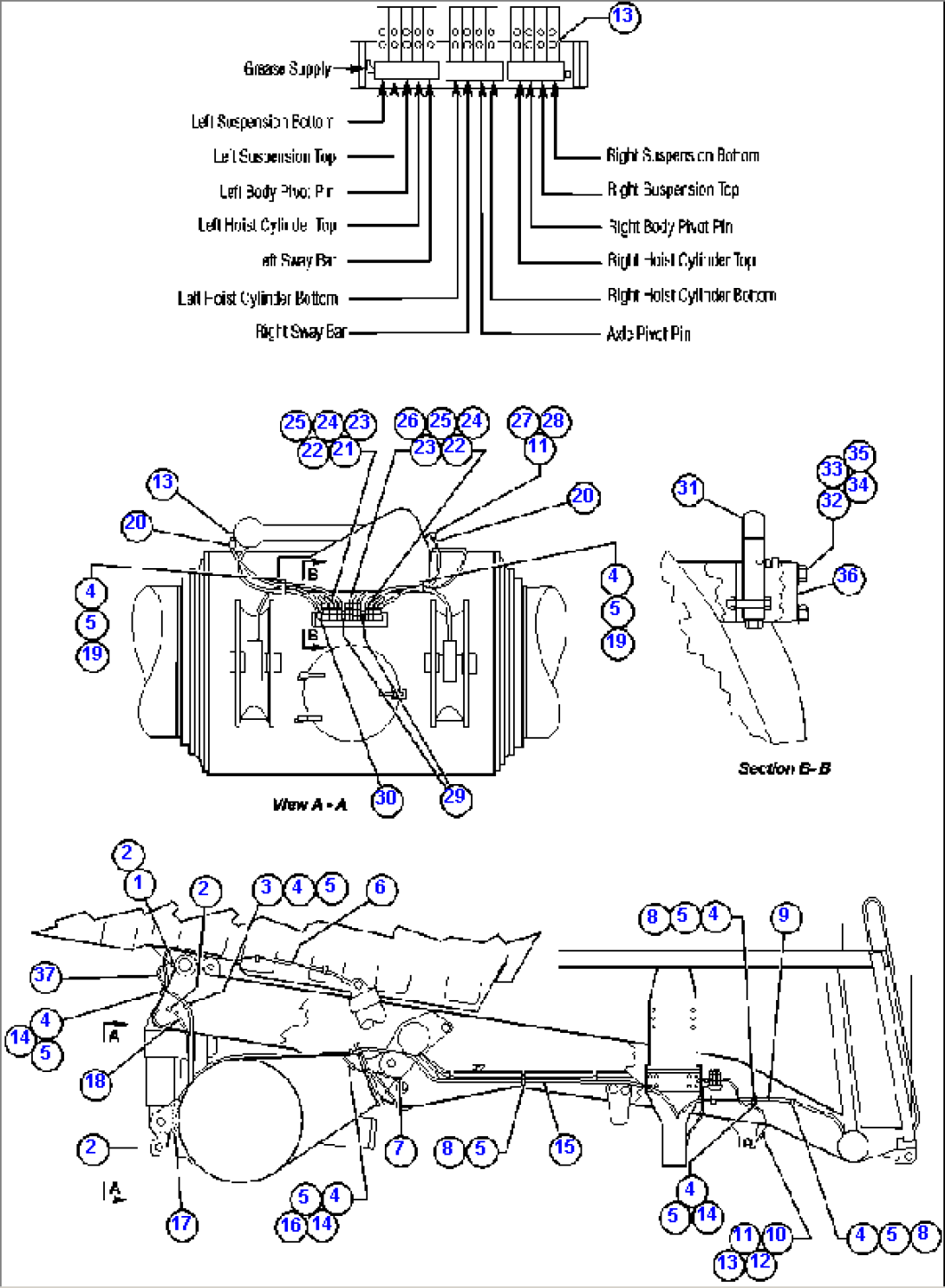

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HC1580 | BUSHING, PIPE | ||
| 2 | WB0454 | FITTING, STRAIGHT ADAPTOR | ||
| 3 | TR9441 | CLAMP | ||
| 4 | MM0177 | NUT - M8 X 1.25 | ||
| 5 | MM0470 | LOCKWASHER - M8 | ||
| 6 | HA1517 | HOSE | ||
| 7 | WB0284 | FITTING, ELBOW - 45 DEG | ||
| 8 | TG2568 | CLAMP | ||
| 9 | HA7554 | HOSE - FROM GREASE PUMP | ||
| 10 | TA1968 | HOSE | ||
| 11 | C1231 | COUPLING, PIPE | ||
| 12 | CD3705 | NIPPLE, PIPE | ||
| 13 | WB0252 | FITTING, ELBOW - 90 DEG | ||
| 14 | VN9907 | CLAMP | ||
| 15 | HA7288 | HOSE | ||
| 16 | MM0642 | STUD WELD - M8 X 25 | ||
| 17 | HA0989 | HOSE | ||
| 18 | HA1190 | HOSE | ||
| 19 | VL9602 | CLAMP | ||
| 20 | HA1413 | HOSE | ||
| 21 | TA4411 | INJECTOR (1) | ||
| 22 | MM0073 | CAPSCREW - M10 X 1.50 X 60 | ||
| 23 | MM0461 | FLAT WASHER - M10 | ||
| 24 | MM0178 | NUT - M10 X 1.50 | ||
| 25 | MM0471 | LOCKWASHER - M10 | ||
| 26 | VW7989 | INJECTOR (1) | ||
| 27 | WB0281 | FITTING, ELBOW - 45 DEG | ||
| 28 | D9862 | NIPPLE, LONG | ||
| 29 | TB8803 | NIPPLE, PIPE | ||
| 30 | WB0262 | FITTING, ELBOW - 90 DEG | ||
| 31 | VW7990 | CAP, PROTECTOR | ||
| 32 | TA1232 | SPACER | ||
| 33 | C1624 | CAPSCREW - 1/2" - 13NC X 4" | ||
| 34 | C1540 | LOCKWASHER - 1/2" | ||
| 35 | C1613 | CAPSCREW - 1/2" - 13NC X 1 1/4" | ||
| 36 | TA4407 | COVER, PLATE | ||
| 37 | VD4661 | HOSE - BODY PIVOT PIN |
