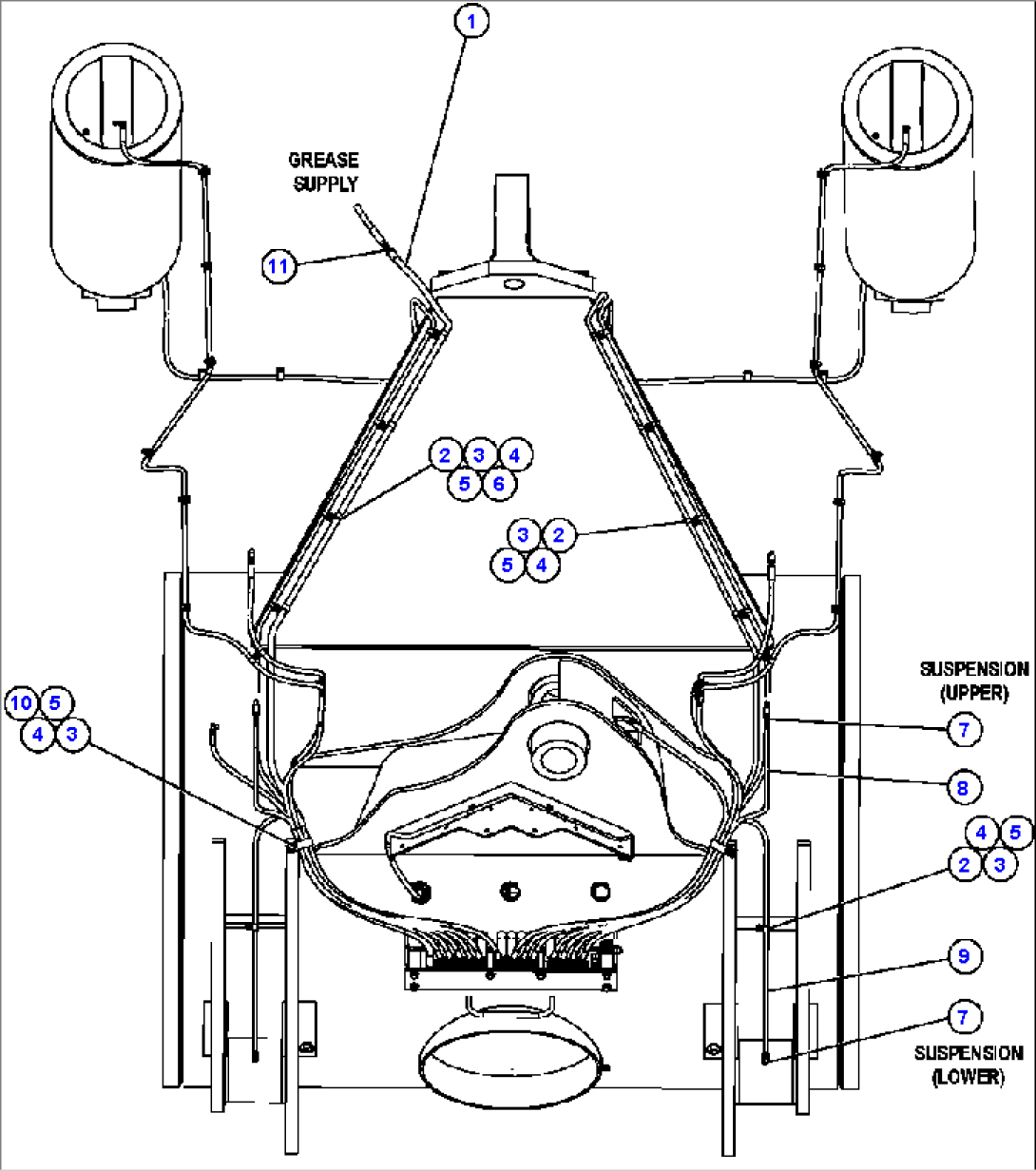

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HA6448 | HOSE | ||
| 2 | VN9907 | CLAMP, VINYL - 5/8" | ||
| 3 | MM0471 | LOCKWASHER - M10 | ||
| 4 | MM0178 | NUT - M10 X 1.50 | ||
| 5 | MM0713 | FLAT WASHER - M10 (HARDENED) (ZINC) | ||
| 6 | TC1565 | CLAMP, VINYL - 15/16" | ||
| 7 | WB0454 | FITTING, 37 DEG FLARE, STRAIGHT ADAPTER | ||
| 8 | HA1190 | HOSE | ||
| 9 | HA0989 | HOSE | ||
| 10 | VL9602 | CLAMP, VINYL - 2" | ||
| 11 | WB0403 | FITTING, 37 DEG FLARE, UNION |
