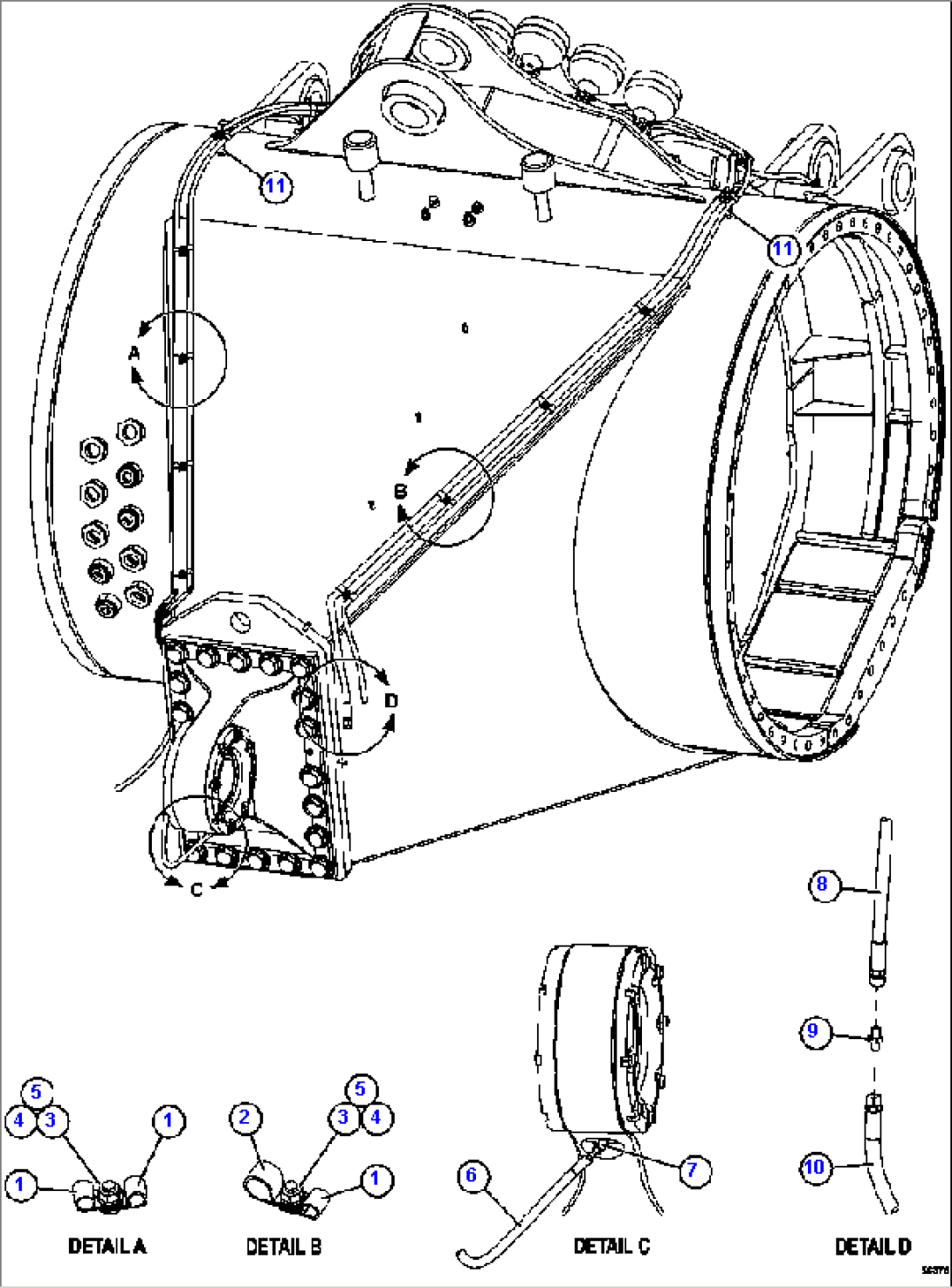

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VN9907 | CLAMP, VINYL - 5/8" | ||
| 2 | TC1565 | CLAMP, VINYL - 15/16" | ||
| 3 | MM0178 | NUT - M10 X 1.50 | ||
| 4 | MM0471 | LOCKWASHER - M10 | ||
| 5 | MM0713 | FLAT WASHER - M10 (HARDENED) | ||
| 6 | HA2995 | HOSE | ||
| 7 | WB0284 | FITTING, ELBOW - 45 DEG | ||
| 8 | HA6448 | HOSE | ||
| 9 | WB0403 | FITTING, UNION | ||
| 10 | HA7288 | HOSE | ||
| 11 | EK9883 | SPACER |
