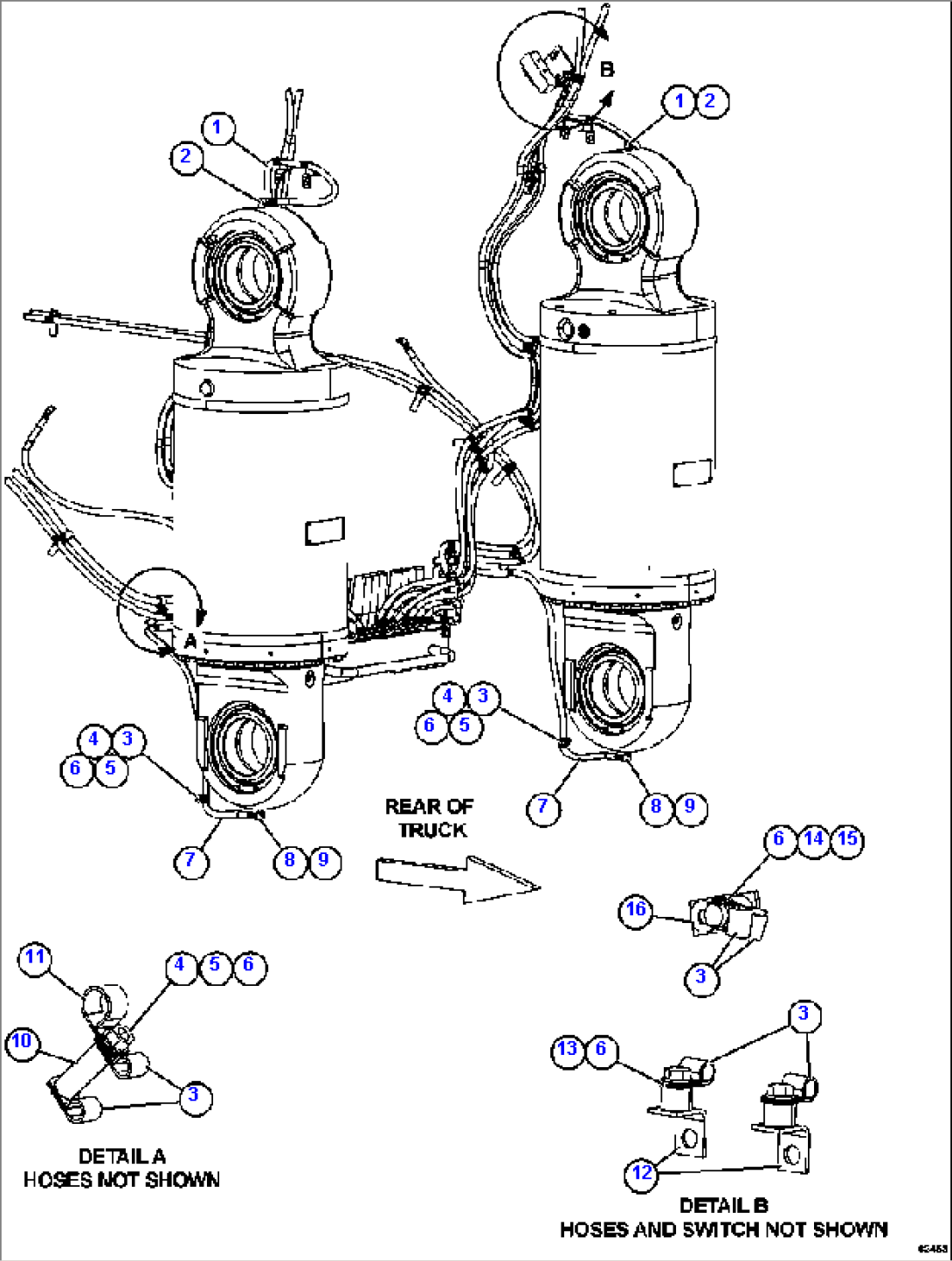

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HA0190 | HOSE | ||
| 2 | WB3097 | CLAMP, CUSHIONED - 1/2" | ||
| 3 | WB1300 | CLAMP, CUSHIONED - 5/8" | ||
| 4 | MM0178 | NUT - M10 X 1.50 | ||
| 5 | MM0471 | LOCKWASHER - M10 | ||
| 6 | MM0461 | FLAT WASHER - M10 | ||
| 7 | HA2988 | HOSE | ||
| 8 | WB0372 | FITTING, ELBOW - 90 DEG | ||
| 9 | PC2048 | FITTING, STRAIGHT | ||
| 10 | EK9883 | SPACER | ||
| 11 | WB3092 | CLAMP, CUSHIONED - 7/8" | ||
| 12 | XB0432 | BRACKET | ||
| 13 | MM0603 | CAPSCREW - M10 X 1.50 X 16 | ||
| 14 | MM0604 | CAPSCREW - M10 X 1.50 X 20 | ||
| 15 | 426-06-11570 | BRACKET | ||
| 16 | E3735 | FLAT WASHER - 5/16" |
