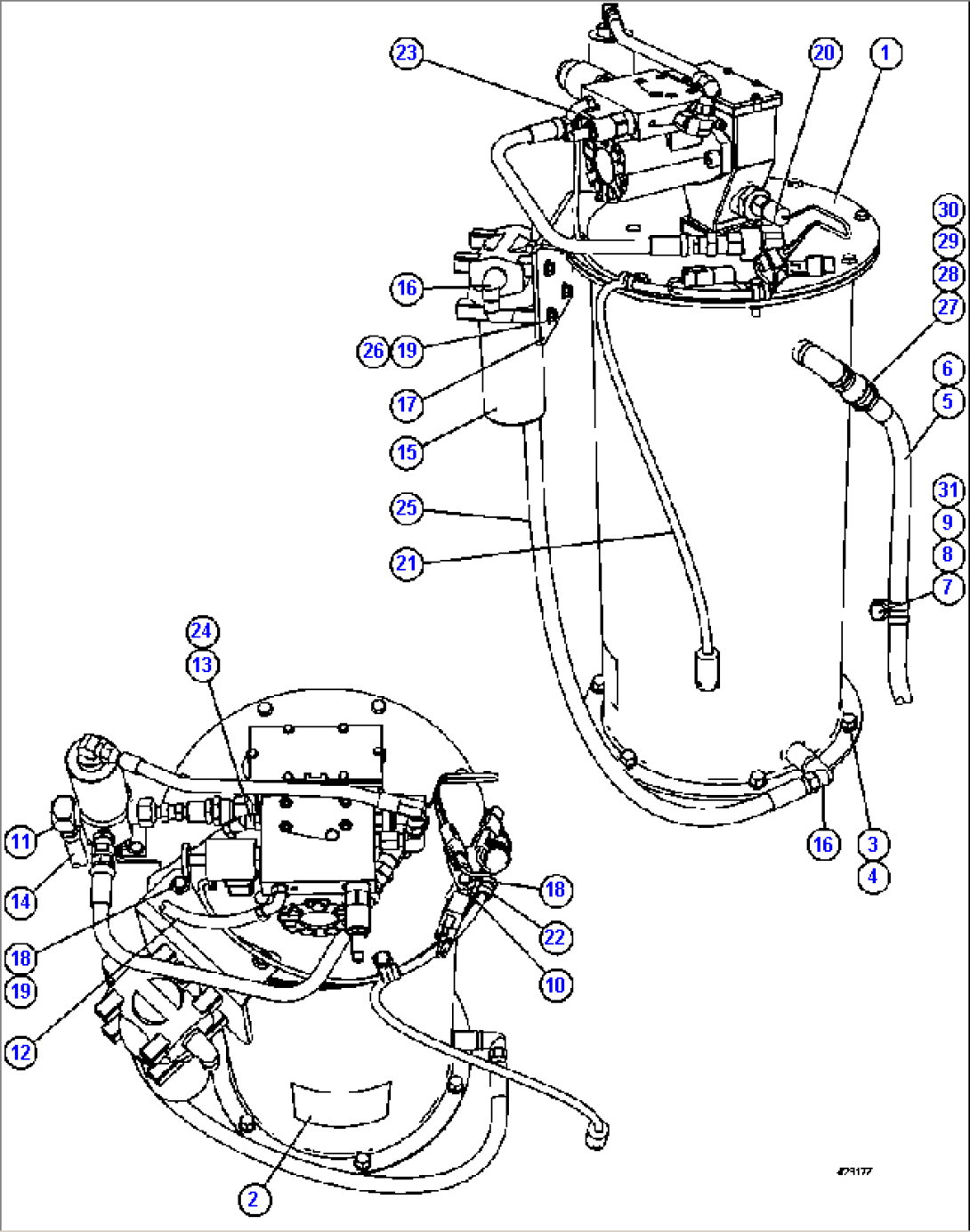

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PC2440 | PUMP/CONTAINER, LUBE (SEE INDEX) | | |
| 2 | WB2763 | DECAL, WARNING | | |
| 3 | TG5722 | CAPSCREW - 7/16" - 14NC X 1 1/4" | | |
| 4 | VC6503 | FLAT WASHER - 7/16" | | |
| 5 | EJ1518 | HOSE | | |
| 6 | CD8419 | CLAMP, WORM DRIVE | | |
| 7 | WB3096 | CLAMP, CUSHION - 1 1/4" | | |
| 8 | MM0461 | FLAT WASHER - M10 | | |
| 9 | MM0178 | NUT - M10 X 1.50 | | |
| 10 | 08193-20012 | CLIP | | |
| 11 | WB0466 | FITTING, STRAIGHT | | |
| 12 | HA7480 | HOSE (OIL PRESSURE INLET) | | |
| 13 | HA7881 | HOSE (OIL DRAIN TO TANK) | | |
| 13 | WB0582 | FITTING, STRAIGHT | | |
| 14 | HA3658 | HOSE (SEE REF. NO. 7 ON FOLLOWING PAGE) | | |
| 15 | PC0811 | FILTER, HYDRAULIC (SEE INDEX) | | |
| 16 | WB0268 | FITTING, ELBOW - 90 DEG | | |
| 17 | EJ0966 | BRACKET, MOUNTING | | |
| 18 | C1604 | CAPSCREW - 3/8" - 16NC X 1 1/2" | | |
| 19 | WA4726 | FLAT WASHER - 3/8" | | |
| 20 | PC2434 | SWITCH, PRESSURE | | |
| 21 | EM5618 | HARNESS, LUBE | | |
| 22 | WB3098 | CLAMP, CUSHION - 3/8" | | |
| 23 | WB0499 | FITTING, ELBOW - 90 DEG | | |
| 24 | WB0535 | FITTING, ELBOW - 45 DEG | | |
| 25 | HA5843 | HOSE | | |
| 26 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | | |
| 27 | F4037 | FITTING, PIPE | | |
| 28 | SD5214 | FITTING, PIPE | | |
| 29 | TG9242 | CONNECTOR | | |
| 30 | E2579 | NIPPLE | | |
| 31 | MM0471 | LOCKWASHER - M10 | | |
| NS|33 | | NOTE: NS = NOT SHOWN | | |
| NS|34 | WB0501 | FITTING, ELBOW - 90 DEG (CENTER PORT, REAR ACCUM) | | |
