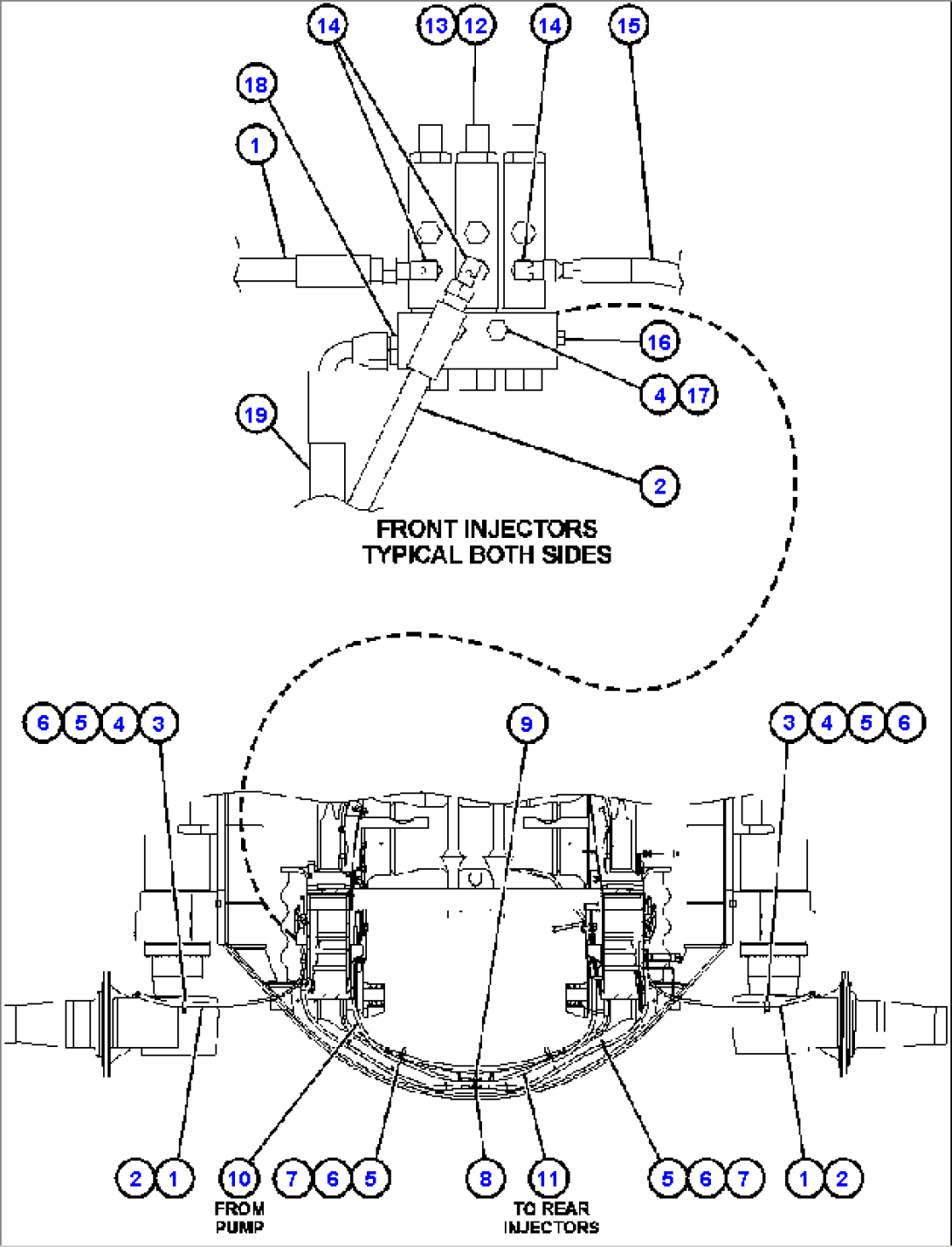

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HA0101 | HOSE | ||
| 2 | HA0516 | HOSE | ||
| 3 | TC6058 | CLAMP - 1 1/2" I.D. | ||
| 4 | MM0713 | FLAT WASHER - M10 | ||
| 5 | MM0471 | LOCKWASHER - M10 | ||
| 6 | MM0178 | NUT - M10 X 1.50 | ||
| 7 | TG2568 | CLAMP - 7/8" I.D. | ||
| 8 | WB0391 | FITTING, TEE | ||
| 9 | WB0418 | FITTING, TEE | ||
| 10 | HA7554 | HOSE | ||
| 11 | HA7288 | HOSE | ||
| 12 | TA4410 | INJECTOR (3 PIECE) (1) | ||
| 13 | VW7990 | CAP, PROTECTIVE | ||
| 14 | WB0252 | FITTING, ELBOW - 90 DEG | ||
| 15 | TA1968 | HOSE | ||
| 16 | C5770 | PLUG, PIPE | ||
| 17 | MM0064 | CAPSCREW - M10 X 1.50 X 45 | ||
| 18 | WB0462 | FITTING, STRAIGHT | ||
| 19 | HA5583 | HOSE | ||
| NS|20 | NOTE: (1) FOR SINGLE INJECTOR, ORDER VS1947. |
