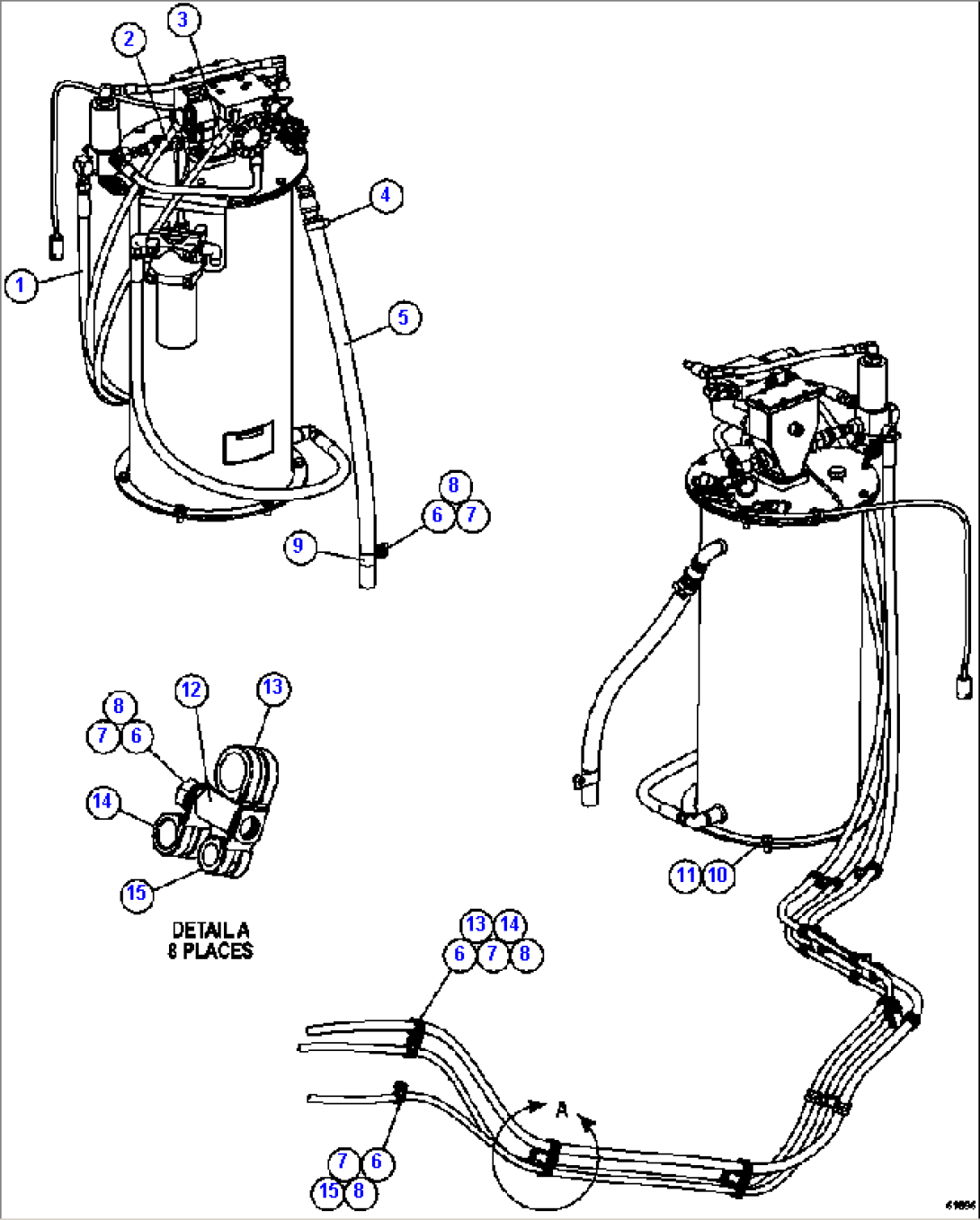

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HA5843 | HOSE | ||
| 2 | HA7321 | HOSE | ||
| 3 | HA8445 | HOSE | ||
| 4 | CD8419 | CLAMP, WORM DRIVE | ||
| 5 | EJ1518 | HOSE | ||
| 6 | MM0178 | NUT - M10 X 1.50 | ||
| 7 | MM0471 | LOCKWASHER - M10 | ||
| 8 | MM0461 | FLAT WASHER - M10 | ||
| 9 | TR9441 | CLAMP, VINYL - 1 1/4" I.D. | ||
| 10 | TG5722 | CAPSCREW - 7/16" - 14NC X 1" | ||
| 11 | VC6503 | FLAT WASHER - 7/16" | ||
| 12 | TY8375 | SPACER | ||
| 13 | WB3092 | CLAMP, CUSHIONED - 7/8" | ||
| 14 | WB1300 | CLAMP, CUSHIONED - 5/8" | ||
| 15 | WB3097 | CLAMP, CUSHIONED - 1/2" |
