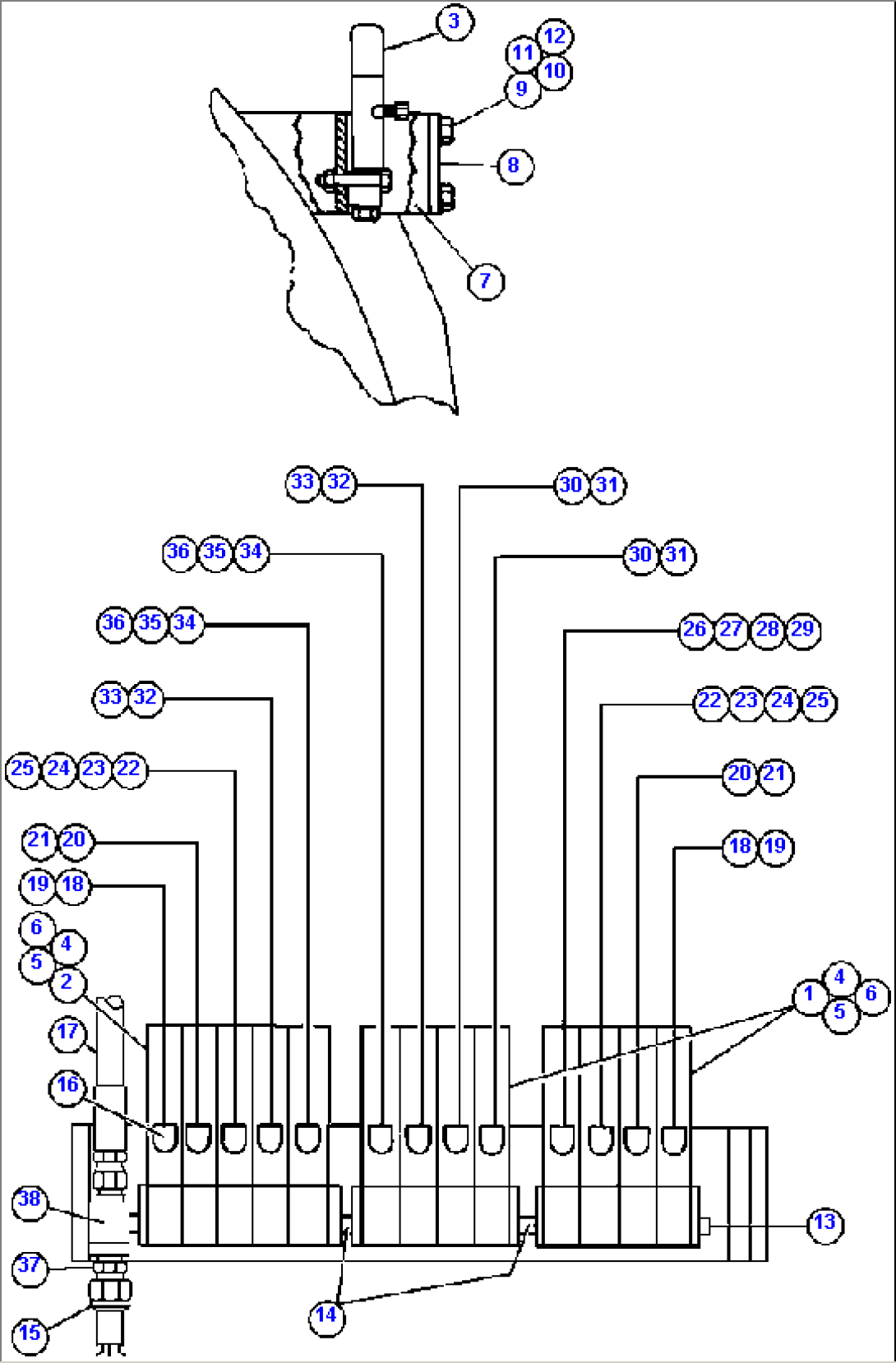

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VW7989 | INJECTOR (4 PIECE) (1) | | |
| 1 | XA2520 | NIPPLE AND CAP ASSEMBLY | | |
| 2 | TA4411 | INJECTOR (5 PIECE) (1) | | |
| 2 | XA2520 | NIPPLE AND CAP ASSEMBLY | | |
| 3 | VW7990 | CAP, PROTECTIVE | | |
| 4 | H0595 | CAPSCREW - 3/8" - 16NC X 2-1/4" | | |
| 5 | MM0471 | LOCKWASHER - M10 | | |
| 6 | MM0178 | NUT, HEX - M10 X 1.50 | | |
| 7 | TY9709 | MOUNT, INJECTORS | | |
| 8 | TA4407 | PLATE, COVER | | |
| 9 | TA1232 | SPACER | | |
| 10 | C1613 | CAPSCREW - 1/2" - 13NC X 1-1/4" | | |
| 11 | C1624 | CAPSCREW - 1/2" - 13NC X 4" | | |
| 12 | C1540 | LOCKWASHER - 1/2" | | |
| 13 | C5770 | PLUG, PIPE | | |
| 14 | TB8803 | NIPPLE | | |
| 15 | PC1295 | SWITCH, PRESSURE | | |
| 16 | WB0252 | FITTING, 90 DEG ELBOW | | |
| 17 | HA0478 | HOSE, GREASE SUPPLY (SEE REF. NO. 1 ON PRECEDING PAGE) | | |
| 18 | VW8099 | HOSE (TO BOTTOM OF REAR SUSPENSIONS) | | |
| 19 | WB0252 | FITTING, 90 DEG ELBOW (AT BOTTOM OF REAR SUSPENSIONS) | | |
| 20 | HA1517 | HOSE (TO TOP OF HOIST CYLINDERS) | | |
| 21 | WB0454 | FITTING, STRAIGHT ADAPTER (AT TOP OF HOIST CYLINDERS) | | |
| 22 | HA0994 | HOSE (TO BOTTOM OF HOIST CYLINDERS) | | |
| 23 | CD3705 | NIPPLE (AT BOTTOM OF HOIST CYLINDERS) | | |
| 24 | C1231 | COUPLING (AT BOTTOM OF HOIST CYLINDERS) | | |
| 25 | WB0252 | FITTING, 90 DEG ELBOW (AT BOTTOM OF HOIST CYLINDERS) | | |
| 26 | HA2995 | HOSE (TO DRIVE AXLE PIVOT PIN) | | |
| 27 | CD3705 | NIPPLE (AT DRIVE AXLE PIVOT PIN) | | |
| 28 | C1231 | COUPLING (AT DRIVE AXLE PIVOT PIN) | | |
| 29 | WB0252 | FITTING, 90 DEG ELBOW (AT DRIVE AXLE PIVOT PIN) | | |
| 30 | HA1413 | HOSE (TO ANTI-SWAY BARS) | | |
| 31 | WB0252 | FITTING, 90 DEG ELBOW (AT ANTI-SWAY BARS) | | |
| 32 | HA1416 | HOSE (TO TOP OF REAR SUSPENSIONS) | | |
| 33 | WB0252 | FITTING, 90 DEG ELBOW (AT TOP OF REAR SUSPENSIONS) | | |
| 34 | VD4661 | HOSE (TO BODY PIVOT PINS) | | |
| 35 | HC1580 | BUSHING (AT BODY PIVOT PINS) | | |
| 36 | WB0252 | FITTING, 90 DEG ELBOW (AT BODY PIVOT PINS) | | |
| 37 | R0086 | BUSHING, PIPE | | |
| 38 | PB8791 | TEE | | |
| NS|41 | | NOTE: (1) FOR SINGLE INJECTOR, ORDER VS1947. | | |
