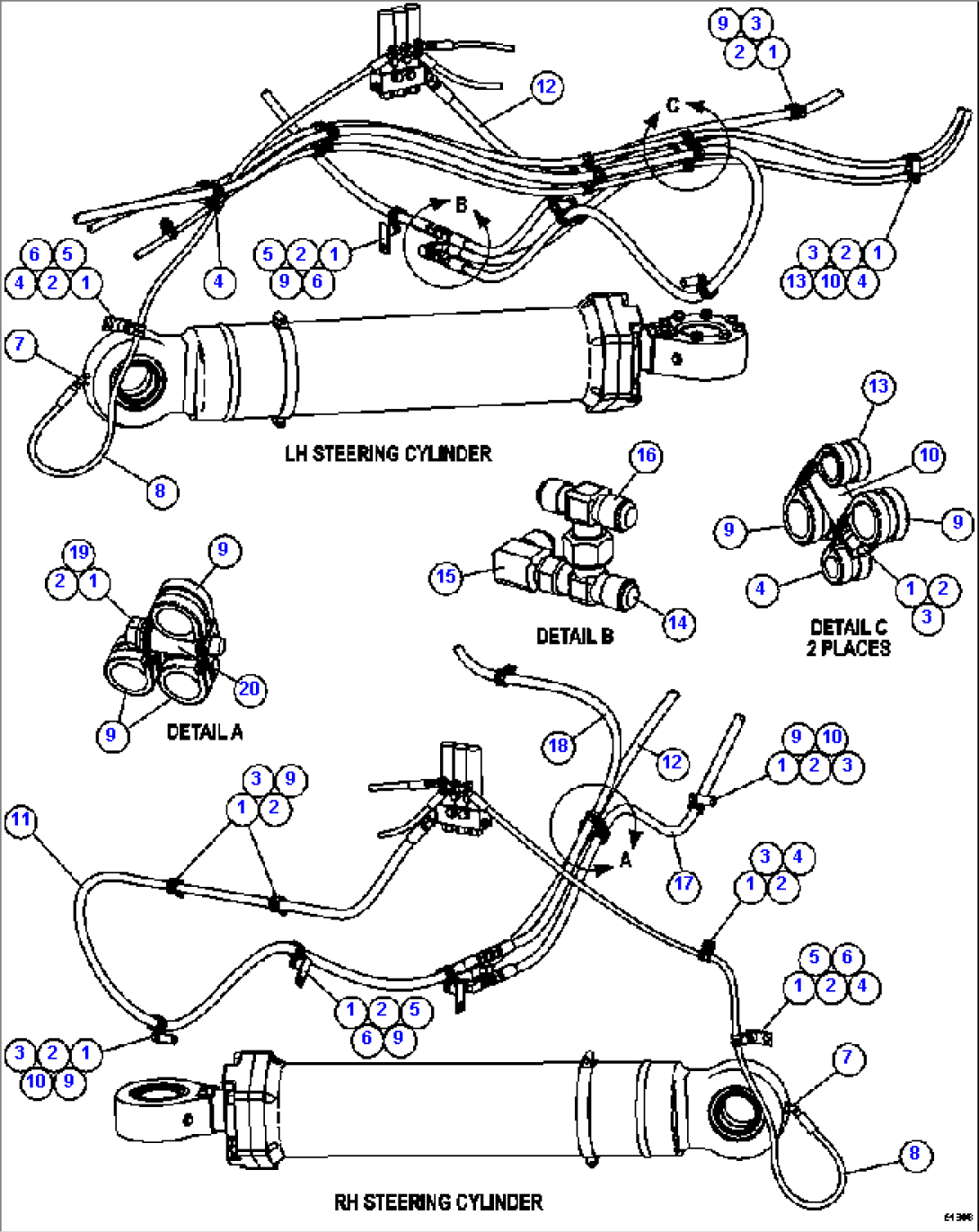

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | MM0178 | NUT - M10 X 1.50 | ||
| 2 | MM0471 | LOCKWASHER - M10 | ||
| 3 | MM0461 | FLAT WASHER - M10 | ||
| 4 | WB3097 | CLAMP, CUSHIONED - 1/2" | ||
| 5 | 426-06-11570 | BRACKET, CLAMP | ||
| 6 | MM0604 | CAPSCREW - M10 X 1.50 X 20 | ||
| 7 | WB0531 | FITTING, ELBOW - 45 DEG | ||
| 8 | HA0570 | HOSE | ||
| 9 | WB3092 | CLAMP, CUSHIONED - 7/8" | ||
| 10 | TY8375 | SPACER | ||
| 11 | HA6752 | HOSE | ||
| 12 | HA5677 | HOSE | ||
| 13 | WB1300 | CLAMP, CUSHIONED - 5/8" | ||
| 14 | WB0418 | FITTING, TEE | ||
| 15 | WB0375 | FITTING, ELBOW - 90 DEG | ||
| 16 | WB0391 | FITTING, TEE | ||
| 17 | HA8248 | HOSE | ||
| 18 | HA8452 | HOSE | ||
| 19 | EM1398 | SPACER | ||
| 20 | MM0610 | CAPSCREW - M10 X 1.50 X 50 |
