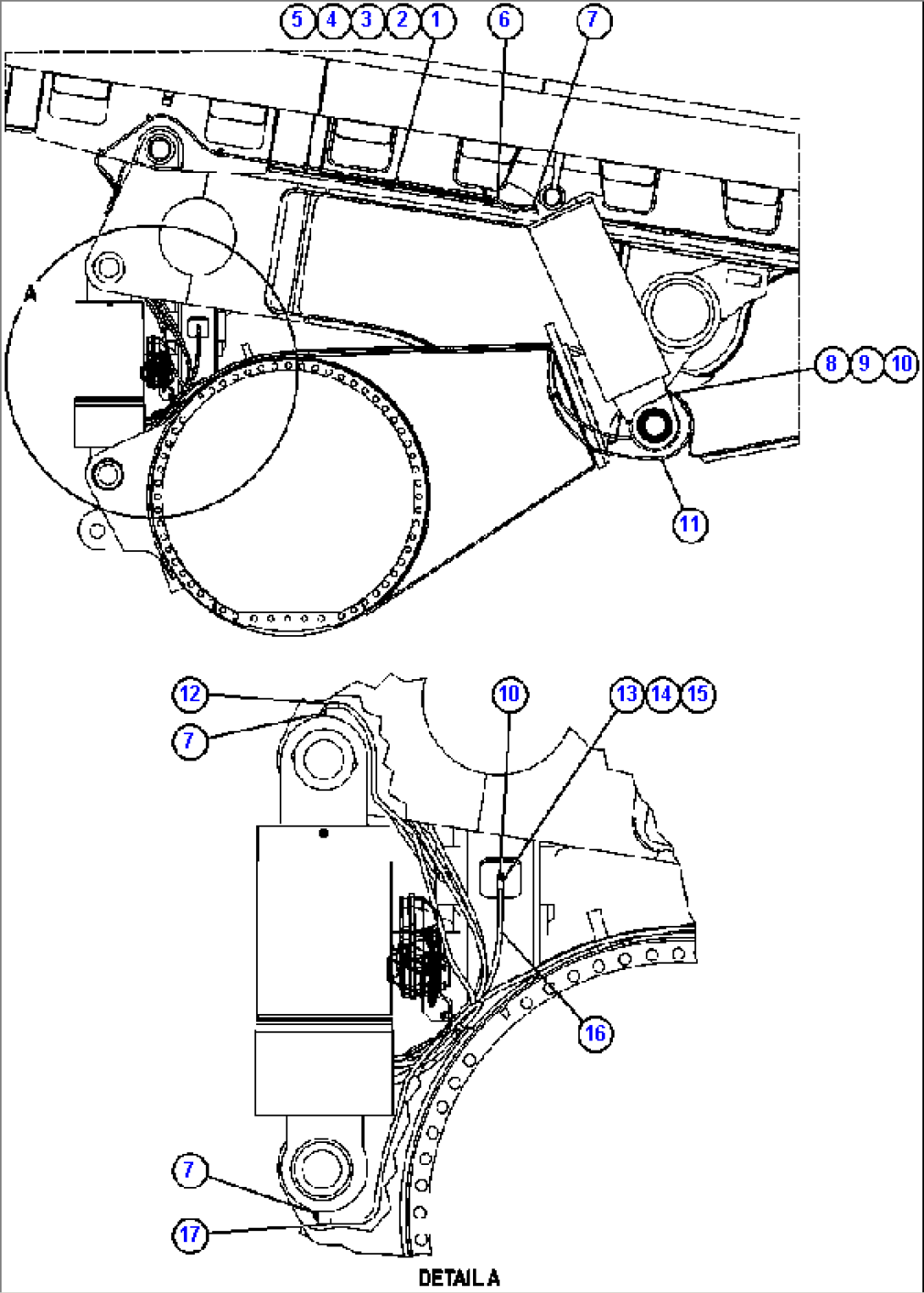

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VN9907 | CLAMP, VINYL - 5/8" | ||
| 2 | MM0471 | LOCKWASHER - M10 | ||
| 3 | MM0178 | NUT - M10 X 1.50 | ||
| 4 | MM0713 | FLAT WASHER - M10 (HARDENED) (ZINC) | ||
| 5 | MM0042 | CAPSCREW - M10 X 1.50 X 25 | ||
| 6 | HA1517 | HOSE | ||
| 7 | WB0454 | FITTING, 37 DEG FLARE, STRAIGHT ADAPTER | ||
| 8 | DC5608 | NIPPLE | ||
| 9 | TZ9849 | COUPLING, PIPE | ||
| 10 | WB0252 | FITTING, 37 DEG FLARE, 90 DEG ELBOW | ||
| 11 | HA3434 | HOSE | ||
| 12 | HA1190 | HOSE | ||
| 13 | WB0281 | FITTING, 37 DEG FLARE, 45 DEG ELBOW | ||
| 14 | C1231 | COUPLING, PIPE | ||
| 15 | D9862 | NIPPLE, LONG | ||
| 16 | HA1413 | HOSE | ||
| 17 | HA0989 | HOSE |
