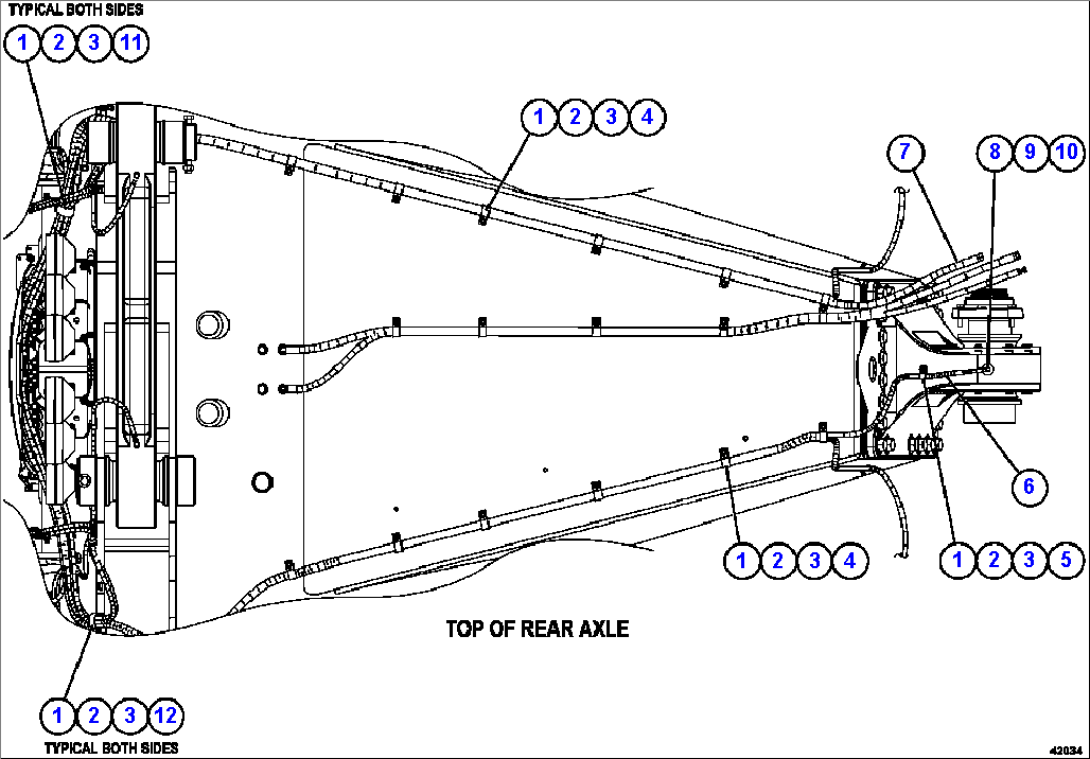

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | MM0461 | FLAT WASHER - M10 | ||
| 2 | MM0178 | NUT, HEX - M10 X 1.50 | ||
| 3 | MM0471 | LOCKWASHER - M10 | ||
| 4 | WB3096 | CLAMP, CUSHIONED - 1 1/4" | ||
| 5 | TF6925 | CLAMP, VINYL - 3/4" I.D. | ||
| 6 | HA8283 | HOSE | ||
| 7 | HA0478 | HOSE | ||
| 8 | WB0252 | FITTING, ELBOW - 90 DEG | ||
| 9 | C1231 | COUPLING, PIPE | ||
| 10 | WB0454 | FITTING, STRAIGHT ADAPTER | ||
| 11 | WB3100 | CLAMP, CUSHIONED - 2 7/16" | ||
| 12 | WB1307 | CLAMP, CUSHIONED - 2" |
