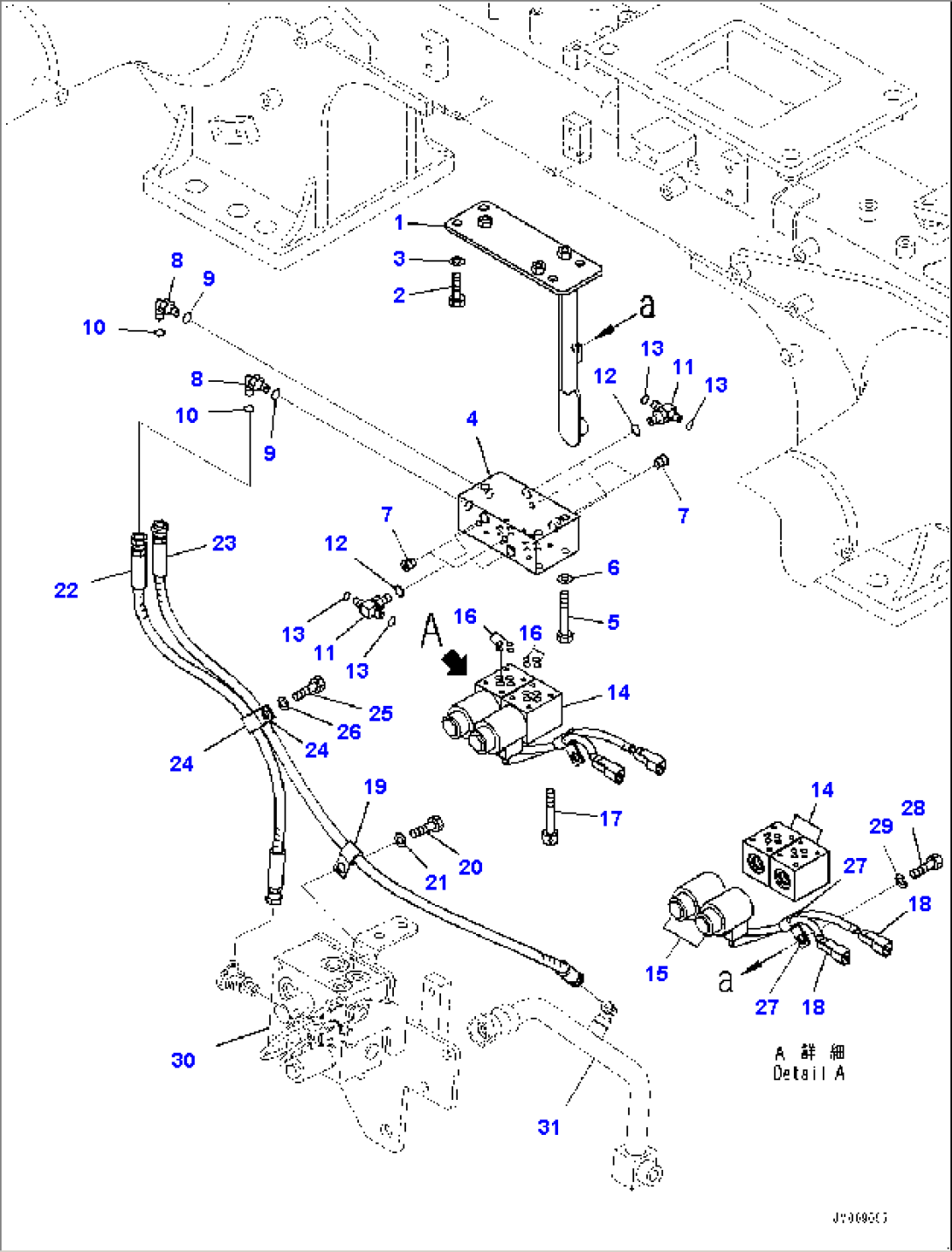

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-44-8L590 | Bracket | 50001- | |
| 2 | 01010-81020 | Bolt | 50001- | |
| 3 | 01643-31032 | Washer | 50001- | |
| 4 | 569-44-87110 | Block | 50001- | |
| 5 | 01010-81075 | Bolt | 50001- | |
| 6 | 01643-31032 | Washer | 50001- | |
| 7 | 07043-00108 | Plug, Taper | 50001- | |
| 8 | 02782-10210 | Elbow | 50001- | |
| 9 | 07002-21423 | O-ring | 50001- | |
| 10 | 02896-21008 | O-ring | 50001- | |
| 11 | 11Y-62-12250 | Tee | 50001- | |
| 12 | 07002-21423 | O-ring | 50001- | |
| 13 | 02896-21008 | O-ring | 50001- | |
| 13 | 569-43-85110 | Valve, Solenoid | 50001- | |
| 14 | Body | 50001- | ||
| 15 | 22T-60-13611 | Solenoid Assembly | 50001- | |
| 15 | 07000-12018 | O-ring | 50001- | |
| 16 | 07000-11009 | O-ring | 50001- | |
| 17 | 01252-70545 | Bolt, Hexagon Socket Head | 50001- | |
| 18 | Connector Body Assembly | 50001- | ||
| 19 | 04434-51312 | Clip | 50001- | |
| 20 | 01010-81220 | Bolt | 50001- | |
| 21 | 01643-31232 | Washer | 50001- | |
| 22 | 02774-00210 | Hose | 50001- | |
| 23 | 02774-00206 | Hose, Face Seal Type | 50001- | |
| 24 | 04434-51312 | Clip | 50001- | |
| 25 | 01010-81220 | Bolt | 50001- | |
| 26 | 01643-31232 | Washer | 50001- | |
| 27 | 04434-51012 | Clip | 50001- | |
| 28 | 01010-81220 | Bolt | 50001- | |
| 29 | 01643-31232 | Washer | 50001- | |
| 30 | (56D-43-32100) | Valve, EPC | - | |
| 31 | (566-61-8M930) | Tube | - |
