| Item | Part No. | Part Name | Qty | Serial No. |

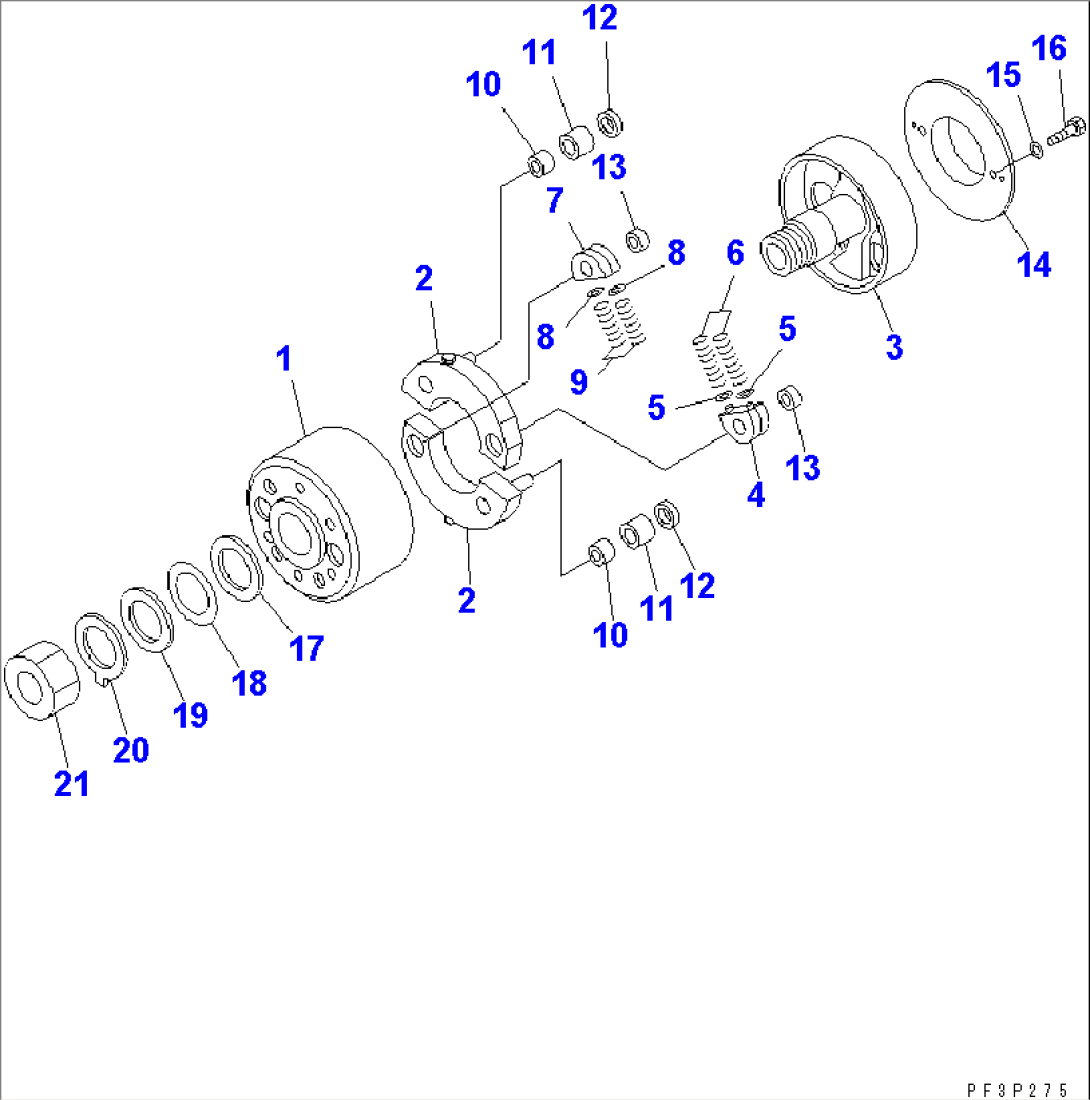

| 6162-73-1290 | TIMER ASS'Y | 10794- | ||
| 1 | DK156430-0020 | HOUSING,TIMER | 10794- | |
| 2 | DK156435-0320 | FLYWEIGHT | 10794- | |
| 3 | DK156432-0020 | FLANGE | 10794- | |
| 4 | DK156440-0120 | SEAT,SPRING | 10794- | |
| 5 | DK139408-0300 | SHIM, 0.10MM | 10794- | |
| 5 | DK029310-8520 | SHIM, 0.2MM | 10794- | |
| 5 | DK139408-0000 | SHIM, 0.30MM | 10794- | |
| 5 | DK029310-8530 | SHIM, 0.4MM | 10794- | |
| 5 | DK029310-8540 | SHIM, 0.5MM | 10794- | |
| 5 | DK029310-8550 | SHIM, 0.6MM | 10794- | |
| 5 | DK029310-8560 | SHIM, 0.7MM | 10794- | |
| 5 | DK139408-0100 | SHIM, 0.80MM | 10794- | |
| 5 | DK139408-0200 | SHIM, 0.90MM | 10794- | |
| 5 | DK029310-8680 | SHIM, 1.0MM | 10794- | |
| 5 | DK139408-0500 | SHIM, 1.5MM | 10794- | |
| 5 | DK139408-0600 | SHIM, 2.0MM | 10794- | |
| 6 | DK156441-0300 | SPRING,TIMER | 10794- | |
| 7 | DK156440-0120 | SEAT,SPRING | 10794- | |
| 8 | DK139408-0300 | SHIM, 0.10MM | 10794- | |
| 8 | DK029310-8520 | SHIM, 0.2MM | 10794- | |
| 8 | DK139408-0000 | SHIM, 0.30MM | 10794- | |
| 8 | DK029310-8530 | SHIM, 0.4MM | 10794- | |
| 8 | DK029310-8540 | SHIM, 0.5MM | 10794- | |
| 8 | DK029310-8550 | SHIM, 0.6MM | 10794- | |
| 8 | DK029310-8560 | SHIM, 0.7MM | 10794- | |
| 8 | DK139408-0100 | SHIM, 0.80MM | 10794- | |
| 8 | DK139408-0200 | SHIM, 0.90MM | 10794- | |
| 8 | DK029310-8680 | SHIM, 1.0MM | 10794- | |
| 8 | DK139408-0500 | SHIM, 1.5MM | 10794- | |
| 8 | DK139408-0600 | SHIM, 2.0MM | 10794- | |
| 9 | DK156441-0300 | SPRING,TIMER | 10794- | |
| 10 | DK156448-0000 | BUSHING | 10794- | |
| 11 | DK156447-0000 | ROLLER, 30.9MM | 10794- | |
| 11 | DK156447-0100 | ROLLER, 31MM | 10794- | |
| 11 | DK156447-0200 | ROLLER, 31.1MM | 10794- | |
| 11 | DK156447-0300 | ROLLER, 31.2MM | 10794- | |
| 12 | DK156442-0400 | WASHER | 10794- | |
| 13 | DK156449-0000 | RETAINER | 10794- | |
| 14 | DK156438-0000 | COVER | 10794- | |
| 15 | DK156615-1900 | WASHER | 10794- | |
| 16 | DK156439-0000 | BOLT | 10794- | |
| 17 | DK156442-0500 | WASHER | 10794- | |
| 18 | DK156446-0000 | SHIM, 0.1MM | 10794- | |
| 18 | DK156446-0100 | SHIM, 0.12MM | 10794- | |
| 18 | DK156446-0200 | SHIM, 0.15MM | 10794- | |
| 18 | DK156446-0300 | SHIM, 0.2MM | 10794- | |
| 18 | DK156446-0400 | SHIM, 0.3MM | 10794- | |
| 19 | DK156442-0300 | WASHER | 10794- | |
| 20 | DK156443-0100 | PLATE,LOCK | 10794- | |
| 21 | DK156444-0000 | NUT | 10794- |
