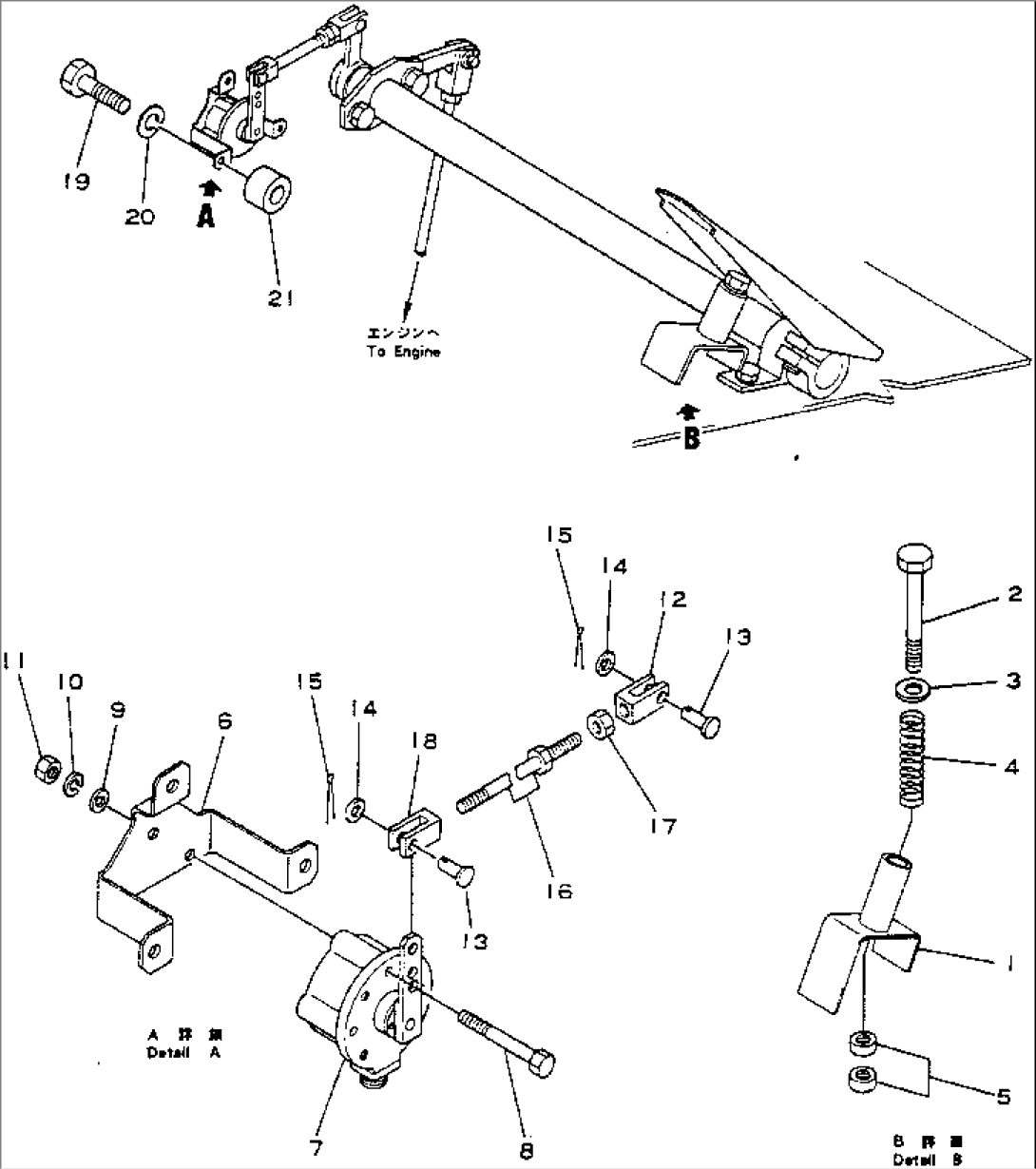

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-17-18530 | BRACKET | 1002- | |
| 2 | 01011-51400 | BOLT | 1002- | |
| 2 | 01011-51410 | BOLT | 1000-1000 | |
| 3 | 01643-31445 | WASHER | 1002- | |
| 4 | 569-43-11170 | SPRING | 1002- | |
| 4 | (\2\566-17-18540) | SPRING | (1000-1000) | |
| 5 | 01580-11411 | NUT | 1002- | |
| 6 | 566-17-18521 | BRACKET | 1002- | |
| 7 | 287-17-18901 | SENSOR ASS'Y | 1002- | |
| 8 | 01010-50665 | BOLT | 1002- | |
| 9 | 01640-20610 | WASHER | 1002- | |
| 10 | 01602-20619 | WASHER | 1002- | |
| 11 | 01580-10605 | NUT | 1002- | |
| 12 | 04211-20844 | YOKE | 1002- | |
| 13 | 04205-10825 | PIN | 1002- | |
| 14 | 01641-20825 | WASHER | 1002- | |
| 15 | 04050-12015 | PIN | 1002- | |
| 16 | 04248-30808 | ROD | 1002- | |
| 17 | 01580-10806 | NUT | 1002- | |
| 18 | 04221-20844 | YOKE | 1002- | |
| 19 | 01010-51020 | BOLT | 1002- | |
| 20 | 01602-21030 | WASHER | 1002- | |
| 21 | 01571-01016 | SEAT | 1002- |
