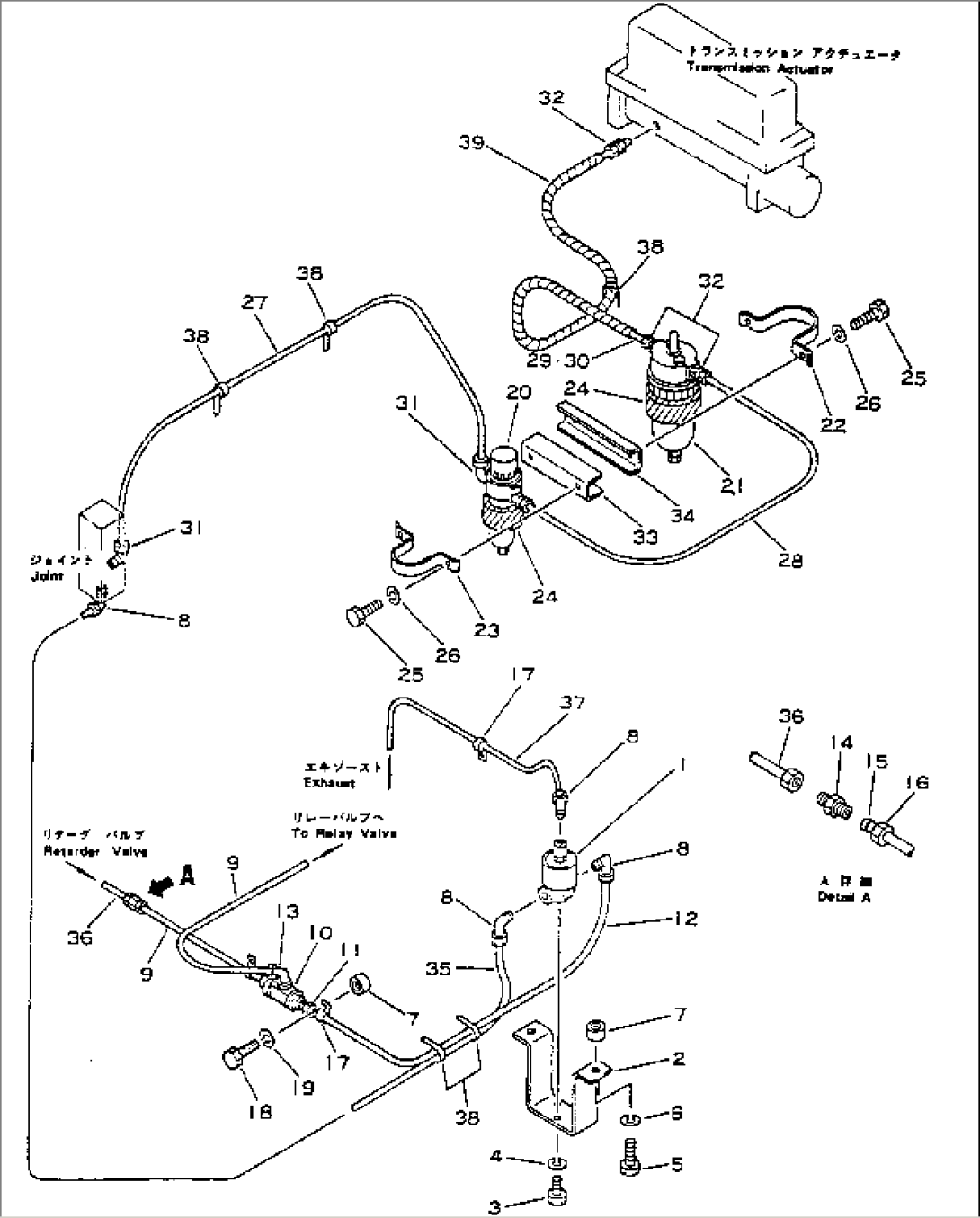

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-35-11410 | SOLENOID VALVE ASS'Y,SOLENOID | 1002- | |
| 1 | 566-91-11310 | VALVE,SOLENOID | 1002- | |
| 2 | 566-91-11320 | BRACKET | 1002- | |
| 3 | 01010-50616 | BOLT | 1002- | |
| 4 | 01602-20619 | WASHER | 1002- | |
| 5 | 01010-51025 | BOLT | 1002- | |
| 6 | 01602-21030 | WASHER | 1002- | |
| 7 | 01571-01016 | SEAT | 1002- | |
| 8 | 281-35-19340 | ELBOW | 1002- | |
| 8 | 07831-00612 | SLEEVE | 1002- | |
| 8 | 07832-00614 | NUT | 1002- | |
| 8 | 07834-00613 | ELBOW | 1002- | |
| 9 | 07822-00636 | TUBE | 1002- | |
| 9 | 07822-00605 | TUBE | 1000-1000 | |
| 10 | 281-34-12300 | VALVE ASS'Y,CHECK | 1002- | |
| 11 | 281-35-19290 | CONNECTOR | 1002- | |
| 11 | 07831-00612 | SLEEVE | 1002- | |
| 11 | 07832-00614 | NUT | 1002- | |
| 11 | 07836-00617 | CONNECTOR | 1002- | |
| 12 | 07822-00605 | TUBE | 1002- | |
| 12 | 07822-00602 | TUBE | 1000-1000 | |
| 13 | 281-35-19330 | ELBOW | 1002- | |
| 13 | 07831-00612 | SLEEVE | 1002- | |
| 13 | 07832-00614 | NUT | 1002- | |
| 13 | 07834-00617 | ELBOW | 1002- | |
| 14 | 07837-00614 | CONNECTOR | 1002- | |
| 15 | 07831-00612 | SLEEVE | 1002- | |
| 16 | 07832-00614 | NUT | 1002- | |
| 17 | 08036-21814 | CLIP | 1002- | |
| 17 | 08036-11214 | CLIP | 1000-1000 | |
| 18 | 01010-51016 | BOLT | 1002- | |
| 19 | 01602-21030 | WASHER | 1002- | |
| 281-34-12701 | MIST SEPARATOR ASS'Y | 1002- | ||
| 20 | 281-34-12710 | CARTRIDGE | 1002- | |
| 21 | 281-34-12901 | OILER ASS'Y | 1002- | |
| 22 | 281-35-11342 | CLAMP | 1002- | |
| 23 | 281-35-11361 | CLAMP | 1002- | |
| 24 | 281-35-11380 | PAD | 1002- | |
| 25 | 01010-50820 | BOLT | 1002- | |
| 26 | 01602-20825 | WASHER | 1002- | |
| 27 | 07822-00613 | TUBE | 1002- | |
| 27 | 07822-00611 | TUBE | 1000-1000 | |
| 28 | 07822-00604 | TUBE | 1002- | |
| 28 | 07822-00603 | TUBE | 1000-1000 | |
| 29 | 07822-00609 | TUBE | 1002- | |
| 29 | 07822-00610 | TUBE | 1000-1000 | |
| 30 | 566-35-13830 | TUBE | 1002- | |
| 31 | 281-35-19340 | ELBOW | 1002- | |
| 31 | 07831-00612 | SLEEVE | 1002- | |
| 31 | 07832-00614 | NUT | 1002- | |
| 31 | 07834-00613 | ELBOW | 1002- | |
| 32 | 281-35-19380 | CONNECTOR | 1002- | |
| 32 | 07831-00612 | SLEEVE | 1002- | |
| 32 | 07832-00614 | NUT | 1002- | |
| 32 | 07836-00613 | CONNECTOR | 1002- | |
| 33 | 566-17-18550 | BRACKET | 1002- | |
| 34 | 281-35-11331 | BRACKET | 1002- | |
| 35 | 07822-00607 | TUBE | 1002- | |
| 35 | 07822-00605 | TUBE | 1000-1000 | |
| 36 | 07822-00616 | TUBE | 1002- | |
| 37 | 07822-00607 | TUBE | 1002- | |
| 38 | 281-06-16760 | BAND | 1002- | |
| 39 | 281-40-13480 | TUBE | 1002- |
