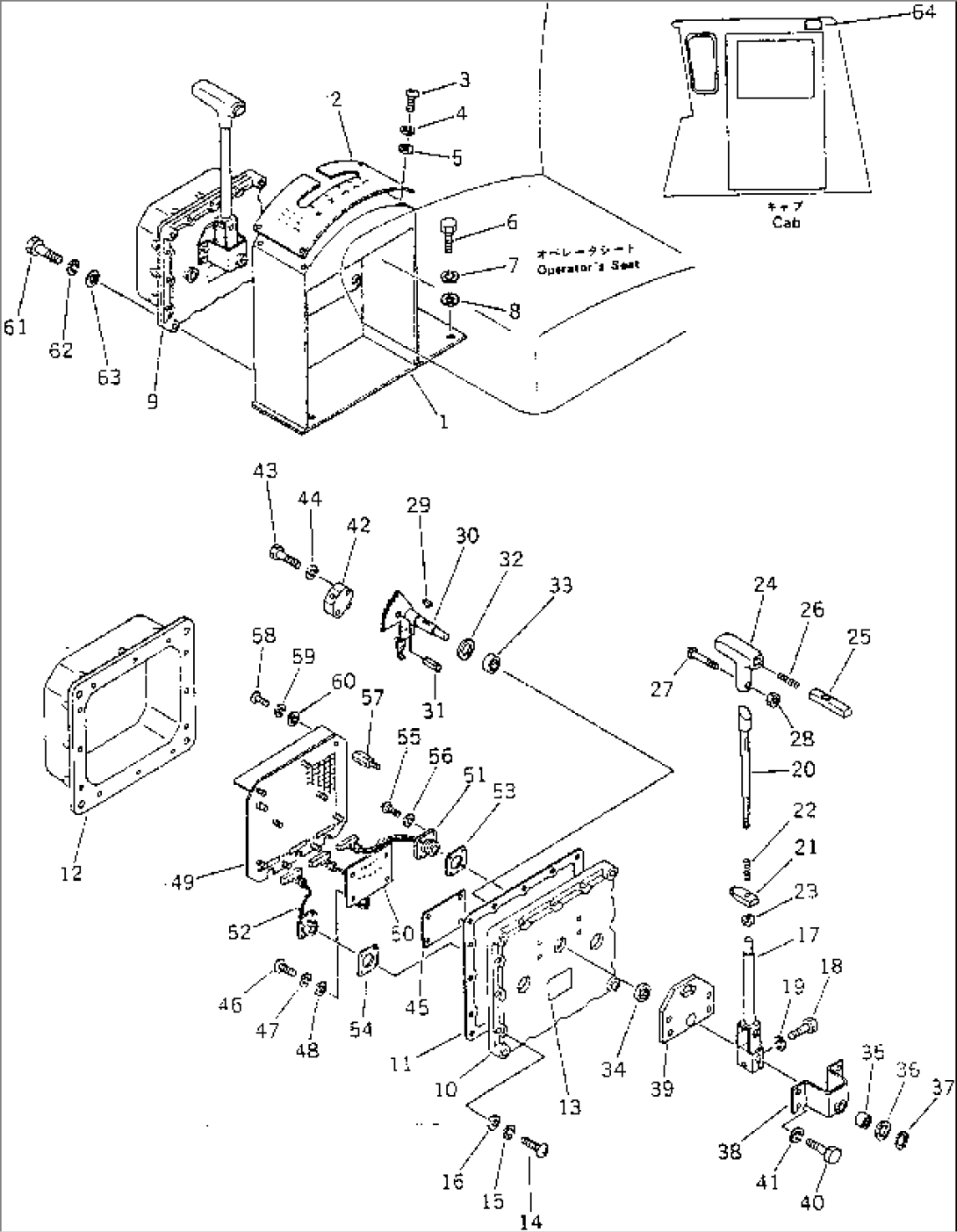

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-17-18510 | CONSOLE | 1002- | |
| 2 | 287-43-13160 | PLATE | 1002- | |
| 3 | 01220-40610 | SCREW | 1002- | |
| 4 | 01602-20619 | WASHER | 1002- | |
| 5 | 01641-20608 | WASHER | 1002- | |
| 6 | 01010-51225 | BOLT | 1002- | |
| 7 | 01602-21236 | WASHER | 1002- | |
| 8 | 01643-21232 | WASHER | 1002- | |
| 9 | 566-17-21103 | CONTROLLER ASS'Y | .- | |
| 9 | \0\566-17-21102 | CONTROLLER ASS'Y | 1002-. | |
| 9 | (\2\566-17-21101) | CONTROLLER ASS'Y | (1060-1132) | |
| 9 | (\2\566-17-21100) | CONTROLLER ASS'Y | (1002-1059) | |
| 10 | 287-17-21110 | BASE | 1002- | |
| 11 | 287-17-21120 | GASKET | 1002- | |
| 12 | 287-17-21130 | COVER | 1002- | |
| 13 | 287-17-21190 | PLATE | 1002- | |
| 14 | 01220-40620 | SCREW | 1002- | |
| 15 | 01602-20619 | WASHER | 1002- | |
| 16 | 01641-20608 | WASHER | 1002- | |
| 569-17-11200 | SHIFT LEVER ASS'Y | 1002- | ||
| 17 | 569-17-11220 | LEVER | 1002- | |
| 18 | 01010-50625 | BOLT | 1002- | |
| 19 | 01602-20619 | WASHER | 1002- | |
| 20 | 569-17-11230 | SHAFT | 1002- | |
| 21 | 287-17-11530 | PIN | 1002- | |
| 22 | 569-17-11240 | SPRING | 1002- | |
| 23 | 01580-10605 | NUT | 1002- | |
| 569-17-11210 | HANDLE | 1002- | ||
| 24 | \6\ | KNOB | 1002- | |
| 25 | \6\ | BUTTON | 1002- | |
| 26 | \6\ | SPRING | 1002- | |
| 27 | 569-17-11250 | SCREW | 1002- | |
| 28 | 569-17-11260 | NUT | 1002- | |
| 29 | 04010-00516 | KEY | 1002- | |
| 30 | 287-17-21220 | LEVER | 1002- | |
| 31 | 04025-01020 | PIN | 1002- | |
| 32 | 287-17-19710 | WASHER | 1002- | |
| 33 | 287-17-19440 | BEARING | 1002- | |
| 34 | 287-17-21390 | SEAL | 1002- | |
| 35 | 287-17-19430 | BEARING | 1002- | |
| 36 | 01642 21216 | WASHER | 1002- | |
| 37 | 04064-01210 | RING | 1002- | |
| 38 | 287-17-11261 | BRACKET | 1002- | |
| 39 | 287-17-11540 | PLATE | 1002- | |
| 40 | 01010-50620 | BOLT | 1002- | |
| 41 | 01602-20619 | WASHER | 1002- | |
| 42 | 287-17-11280 | DETENT | 1002- | |
| 43 | 01010-50620 | BOLT | 1002- | |
| 44 | 01602-20619 | WASHER | 1002- | |
| 45 | 287-17-11290 | SEAT | 1002- | |
| 46 | 01220-40410 | SCREW | 1002- | |
| 47 | 01601-20410 | WASHER | 1002- | |
| 48 | 01641-20405 | WASHER | 1002- | |
| 49 | 566-17-21312 | CARD | .- | |
| 49 | \0\566-17-21311 | CARD | 1002-. | |
| 50 | 287-17-21340 | SENSOR | 1002- | |
| 51 | 287-17-21360 | HARNESS | 1002- | |
| 52 | 287-17-21350 | HARNESS | 1002- | |
| 53 | 287-17-11170 | GASKET | 1002- | |
| 54 | 287-17-11180 | GASKET | 1002- | |
| 55 | 01220-40310 | SCREW | 1002- | |
| 56 | 01601-20307 | WASHER | 1002- | |
| 57 | 287-17-21370 | SCREW | 1002- | |
| 58 | 01220-50310 | SCREW | 1002- | |
| 59 | 01601-40307 | WASHER | 1002- | |
| 60 | 01641-40305 | WASHER | 1002- | |
| 61 | 01010-51045 | BOLT | 1002- | |
| 62 | 01602-21030 | WASHER | 1002- | |
| 63 | 01640-21016 | WASHER | 1002- | |
| 64 | 566-93-13840 | PLATE, OPERATING,(JAPANESE-ENGLISH) | 1002- | |
| 64 | 566-93-15840 | PLATE, CAUTION,(FRENCH) | 1002- | |
| 64 | 566-93-16840 | PLATE, CAUTION,(ARABIC) | 1002- | |
| 64 | 566-93-19840 | PLATE,(SPANISH) | 1002- |
