| Item | Part No. | Part Name | Qty | Serial No. |

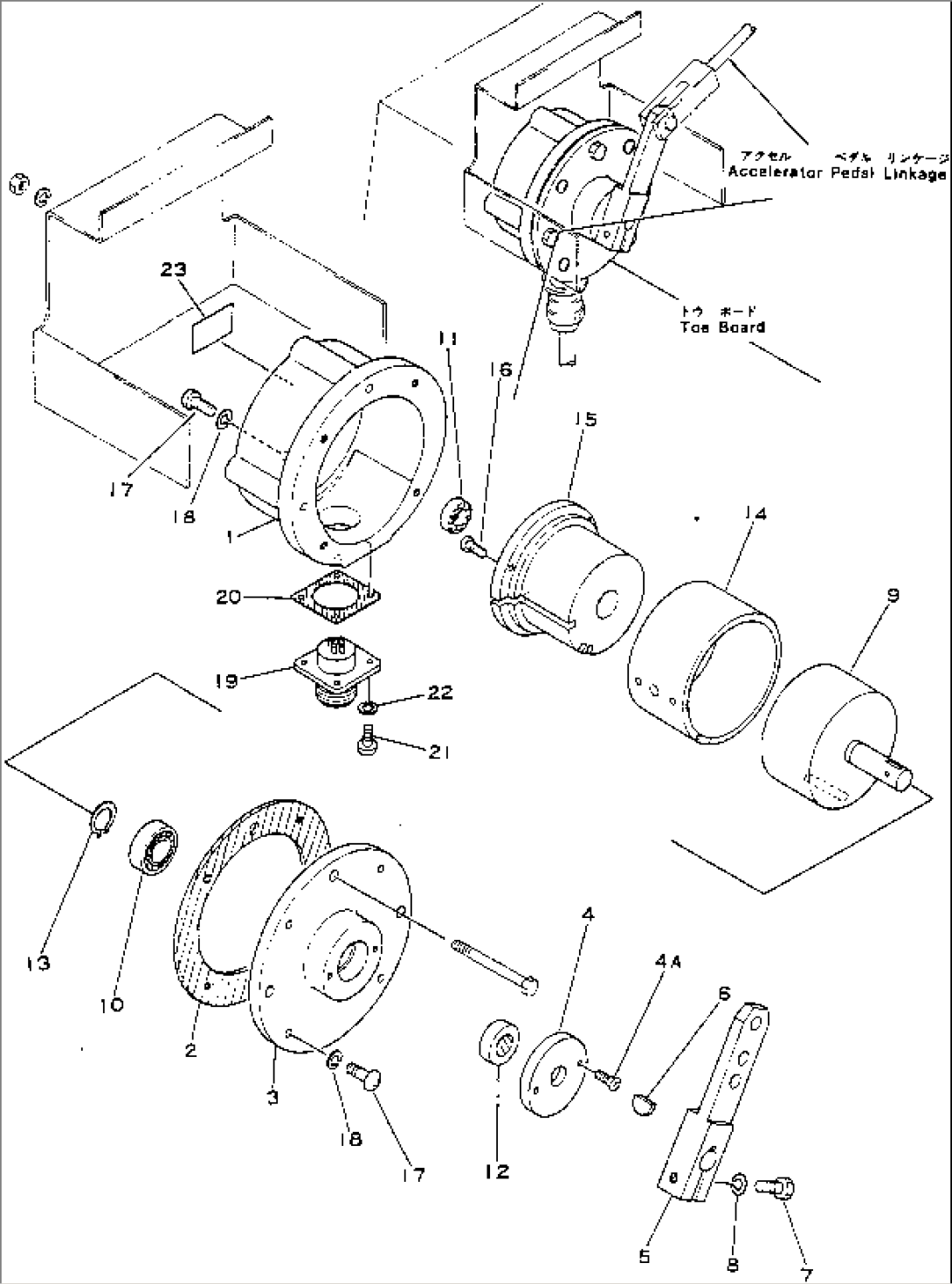

| 287-17-18901 | SENSOR ASS'Y,THROTTLE | 1002- | ||
| 1 | 287-17-18911 | HOUSING | 1002- | |
| 2 | 287-17-18920 | GASKET | 1002- | |
| 3 | 287-17-18931 | COVER | 1002- | |
| 4 | 287-17-18941 | WASHER | 1002- | |
| 4A | 01224-30306 | SCREW | 1002- | |
| 5 | 287-17-18951 | LEVER | 1002- | |
| 6 | 04010-00310 | KEY | 1002- | |
| 7 | 01010-50625 | BOLT | 1002- | |
| 8 | 01602-20619 | WASHER | 1002- | |
| 9 | 287-17-18981 | SHAFT | 1002- | |
| 10 | 06000-06001 | BEARING | 1002- | |
| 11 | 06000-00626 | BEARING | 1002- | |
| 12 | 287-17-19730 | SEAL | 1002- | |
| 13 | 04064-01210 | RING | 1002- | |
| 14 | 287-17-17911 | SWITCH ASS'Y | 1002- | |
| 15 | 287-17-18971 | HOLDER | 1002- | |
| 16 | 287-17-19740 | SCREW | 1002- | |
| 17 | 01220-40412 | SCREW | 1002- | |
| 18 | 01601-20410 | WASHER | 1002- | |
| 19 | 566-06-12760 | RECEPTACLE | 1002- | |
| 20 | 566-06-12660 | GASKET | 1002- | |
| 21 | 01220-40310 | SCREW | 1002- | |
| 22 | 01601-20307 | WASHER | 1002- |
