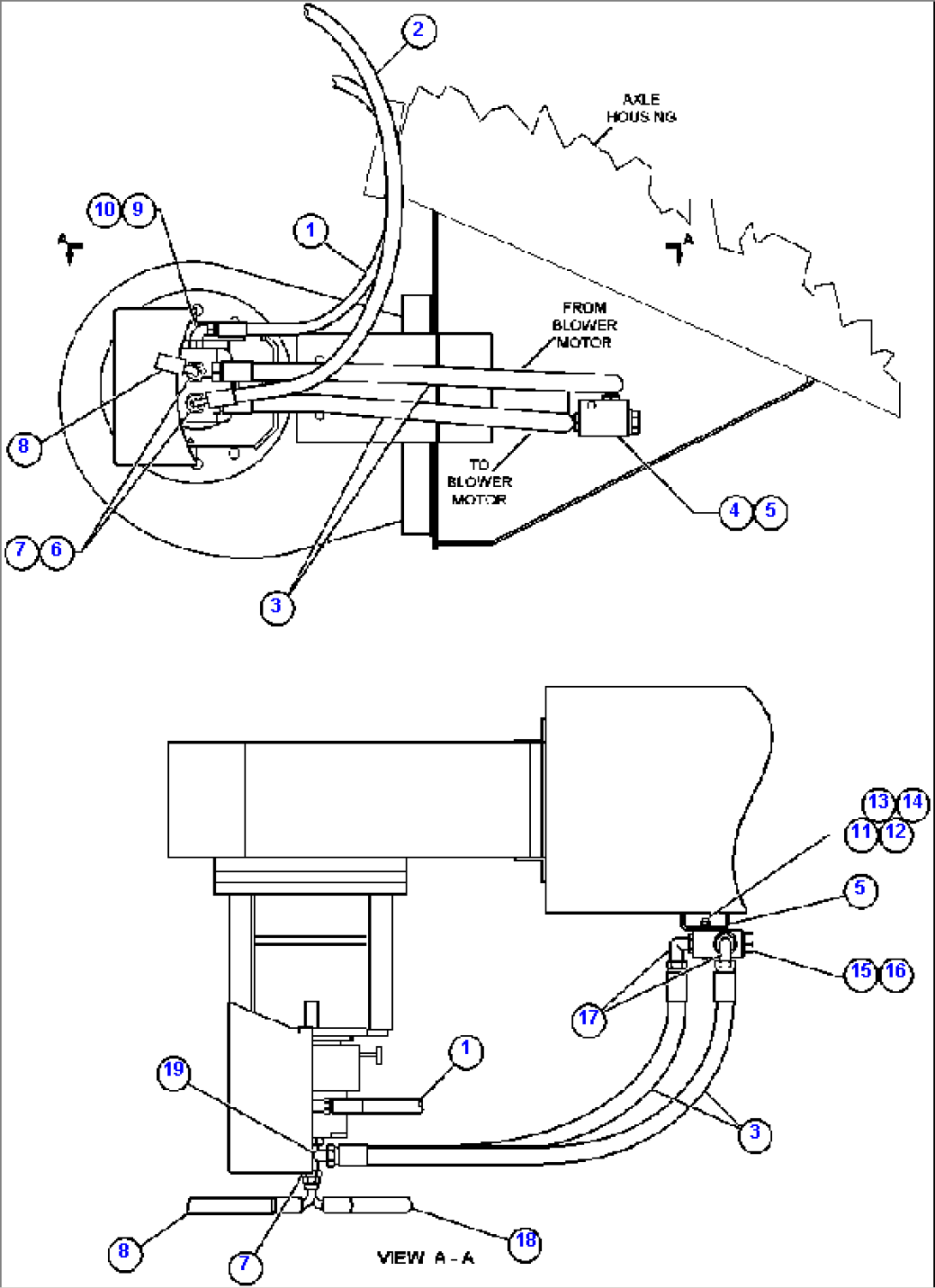

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HA7465 | HOSE - TO TANK | ||
| 2 | TV5648 | HOSE - TO MANIFOLD HEAT EXCHANGER | ||
| 3 | HA7464 | HOSE | ||
| 4 | PB9921 | VALVE, CHECK | ||
| 5 | EG2630 | PLATE, BENT | ||
| 6 | EG2631 | PLATE, BENT | ||
| 7 | WB0364 | FITTING, STRAIGHT ADAPTOR | ||
| 8 | HA2802 | HOSE - FROM FILTER "TOP PORT" | ||
| 9 | WB0588 | FITTING, STRAIGHT ADAPTOR | ||
| 10 | WB0376 | FITTING, 90 DEG. | ||
| 11 | C8558 | CAPSCREW - 3/8" - 16NC X 3 1/4" | ||
| 12 | TR4436 | FLAT WASHER - 3/8" | ||
| 13 | C0312 | LOCKWASHER - 3/8" | ||
| 14 | C1521 | NUT - 3/8" - 16NC | ||
| 15 | PB9921 | VALVE, CHECK | ||
| 16 | C5769 | PLUG, PIPE | ||
| 17 | WB0523 | FITTING - 90 DEG. | ||
| 18 | TV5648 | HOSE | ||
| 19 | WB0561 | TEE |
