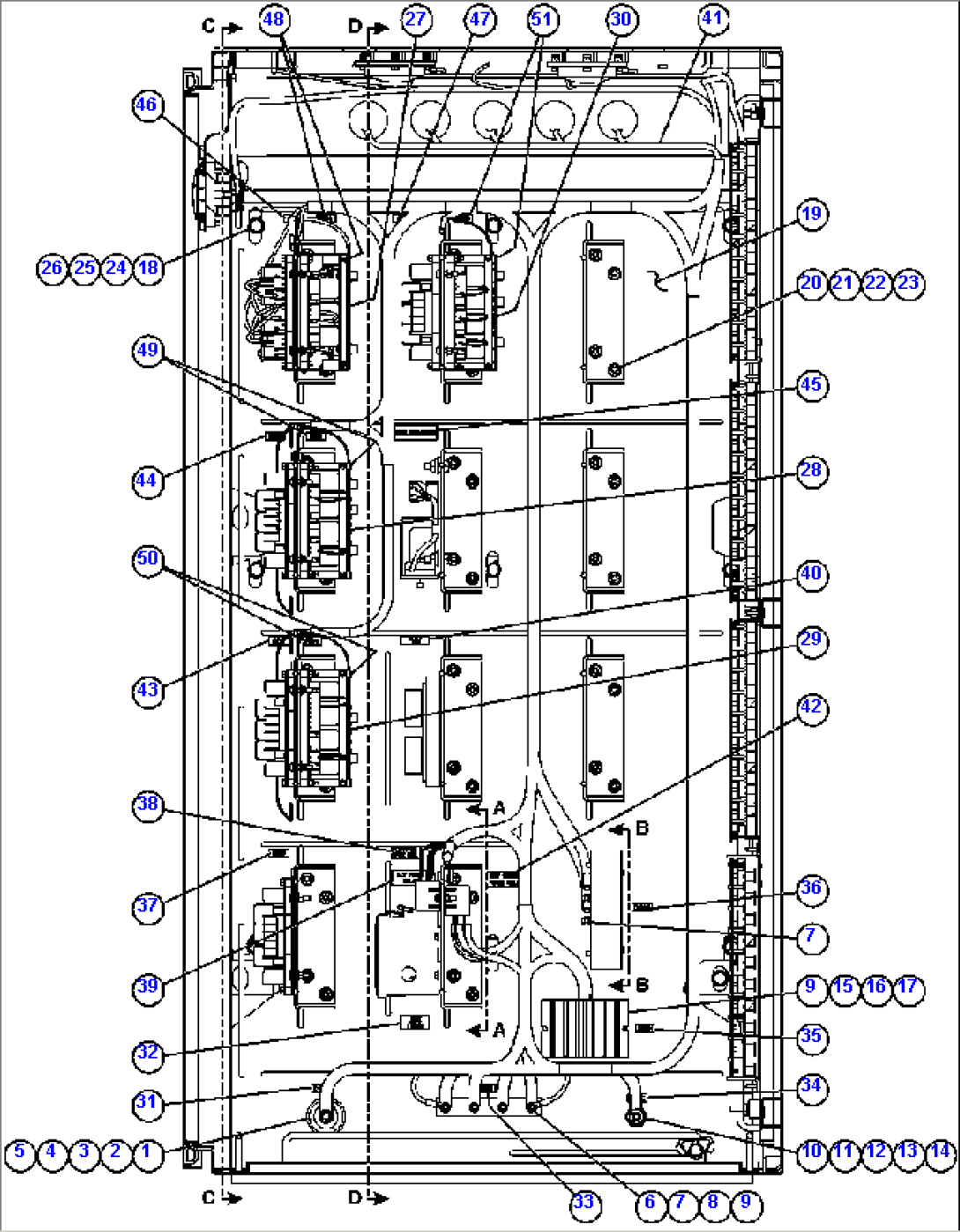

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PB7202 | INSULATOR | ||
| 2 | ED7468 | ROD, THREADED - 5/16" | ||
| 3 | SC4174 | LOCKWASHER - 5/16" | ||
| 4 | TD1684 | NUT - 5/16" - 18NC | ||
| 5 | TV0177 | FLAT WASHER - 5/16" | ||
| 6 | EK0731 | ROD, THREADED - M6 | ||
| 7 | MM0176 | NUT - M6 X 1.00 | ||
| 8 | MM0469 | LOCKWASHER - M6 | ||
| 9 | MM0459 | FLAT WASHER - M6 | ||
| 10 | TA7409 | INSULATOR, STAND-OFF | ||
| 11 | ED0913 | ROD, THREADED - 1/4" | ||
| 12 | TD1549 | NUT - 1/4" - 20NC | ||
| 13 | DC3584 | LOCKWASHER - 1/4" | ||
| 14 | TR1307 | FLAT WASHER - 1/4" | ||
| 15 | PC1615 | CONVERTER | ||
| 16 | MM0373 | NUT - M5 X .8 | ||
| 17 | MM0379 | LOCKWASHER - M5 (EXTERNAL TOOTH) | ||
| 18 | EL0312 | MOUNTING BRACKET ASSEMBLY | ||
| 19 | EL0311 | MOUNT, BRACKET | ||
| 20 | EK9239 | BRACKET | ||
| 21 | MM0470 | LOCKWASHER - M8 | ||
| 22 | MM0177 | NUT - M8 X 1.25 | ||
| 23 | MM0460 | FLAT WASHER - M8 | ||
| 24 | TC1234 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 25 | TC1231 | LOCKWASHER - 3/8" | ||
| 26 | TR4436 | FLAT WASHER - 3/8" | ||
| 27 | EK3808 | RELAY BOARD ASSEMBLY - RB1 (SEE FIG 55612) | ||
| 28 | EK3803 | RELAY BOARD ASSEMBLY - RB3 (SEE FIG 55612) | ||
| 29 | EK3806 | RELAY BOARD ASSEMBLY - RB4 (SEE FIG 55612) | ||
| 30 | EK3811 | RELAY BOARD ASSEMBLY - RB5 (SEE FIG 55612) | ||
| 31 | TZ7377 | NAME PLATE - 24 VDC | ||
| 32 | WB2281 | NAME PLATE - LUBE TIMER | ||
| 33 | WB2303 | NAME PLATE - GB31 | ||
| 34 | TZ7378 | NAME PLATE - 12 VDC | ||
| 35 | WB3239 | NAME PLATE - 12 VCN | ||
| 36 | WB3238 | NAME PLATE - DOKG | ||
| 37 | WB3237 | NAME PLATE - RB9 | ||
| 38 | WB2836 | NAME PLATE - 12V POWER RELAY | ||
| 39 | WB2289 | NAME PLATE - CONTROL POWER RELAY | ||
| 40 | EH3010 | NAME PLATE - PVM | ||
| 41 | EM1468 | HARNESS, GE/AUX BOX INTERFACE | ||
| 42 | WB2835 | NAME PLATE - KEY SWITCH POWER RELAY | ||
| 43 | WB2280 | NAME PLATE - RB7 | ||
| 44 | EC8824 | NAME PLATE - RB6 | ||
| 45 | EL7628 | NAME PLATE - INCLINOMETER | ||
| 46 | EC8825 | NAME PLATE - DB1 | ||
| 47 | WB2733 | NAME PLATE - RB8 | ||
| 48 | EC8819 | NAME PLATE - RB1 | ||
| 49 | EC8821 | NAME PLATE - RB3 | ||
| 50 | EC8822 | NAME PLATE - RB4 | ||
| 51 | EC8823 | NAME PLATE - RB5 | ||
| 51 | (FOR VIEWS A-A THROUGH D-D, SEE FOLLOWING PAGE.) |
