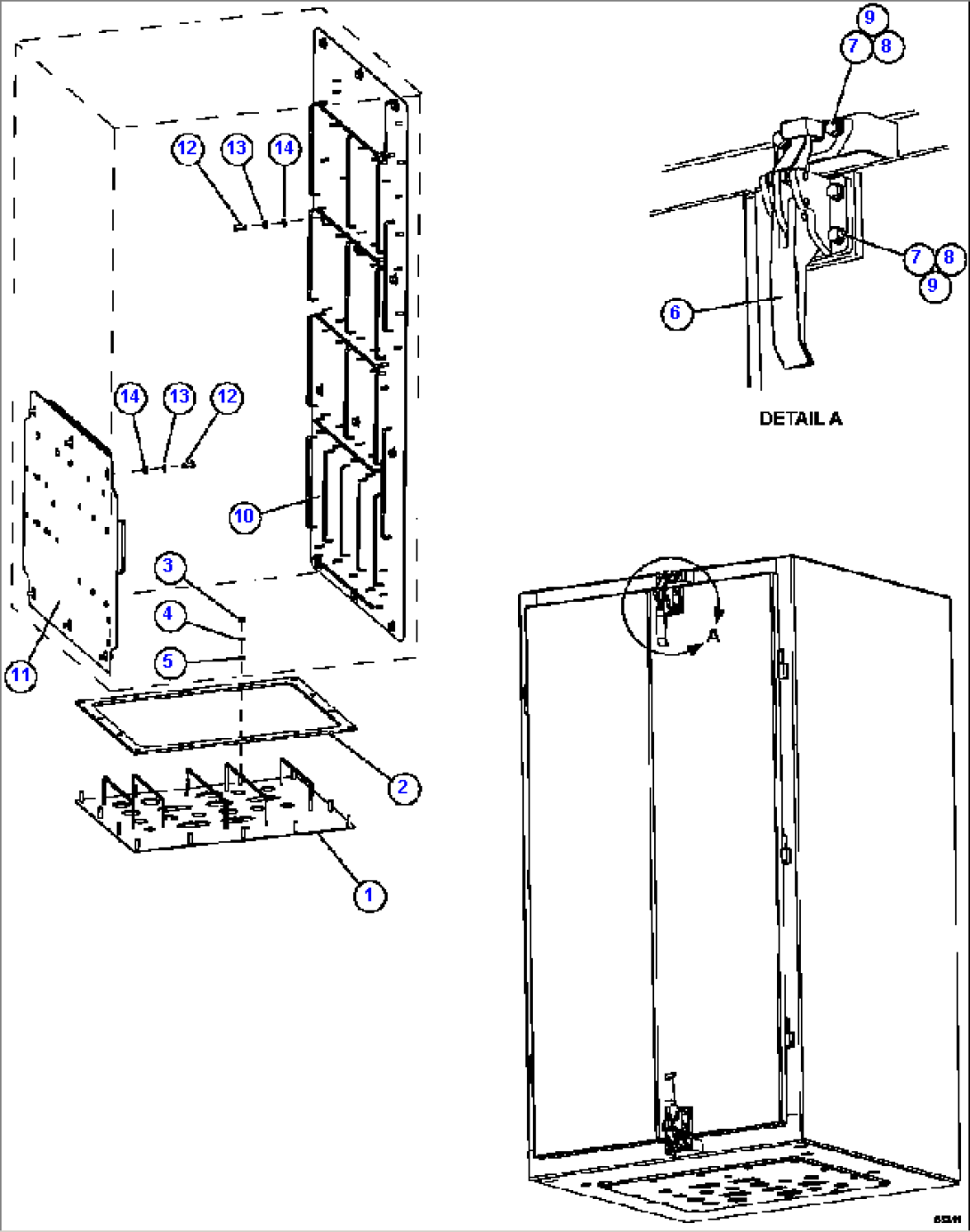

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XB5218 | PLATE, BOTTOM | ||
| 2 | EL0923 | GASKET | ||
| 3 | MM0177 | NUT - M8 X 1.25 | ||
| 4 | MM0470 | LOCKWASHER - M8 | ||
| 5 | MM0460 | FLAT WASHER - M8 | ||
| 6 | PB1006 | LATCH/KEEPER SET | ||
| 7 | MM0019 | CAPSCREW - M6 X 1.00 X 16 | ||
| 8 | MM0469 | LOCKWASHER - M6 | ||
| 9 | MM0459 | FLAT WASHER - M6 | ||
| 10 | XB3981 | PLATE, MOUNTING | ||
| 11 | XB4045 | BRACKET, MOUNTING | ||
| 12 | MM0042 | CAPSCREW - M10 X 1.50 X 25 | ||
| 13 | MM0471 | LOCKWASHER - M10 | ||
| 14 | MM0713 | FLAT WASHER - M10 (HARDENED) |
