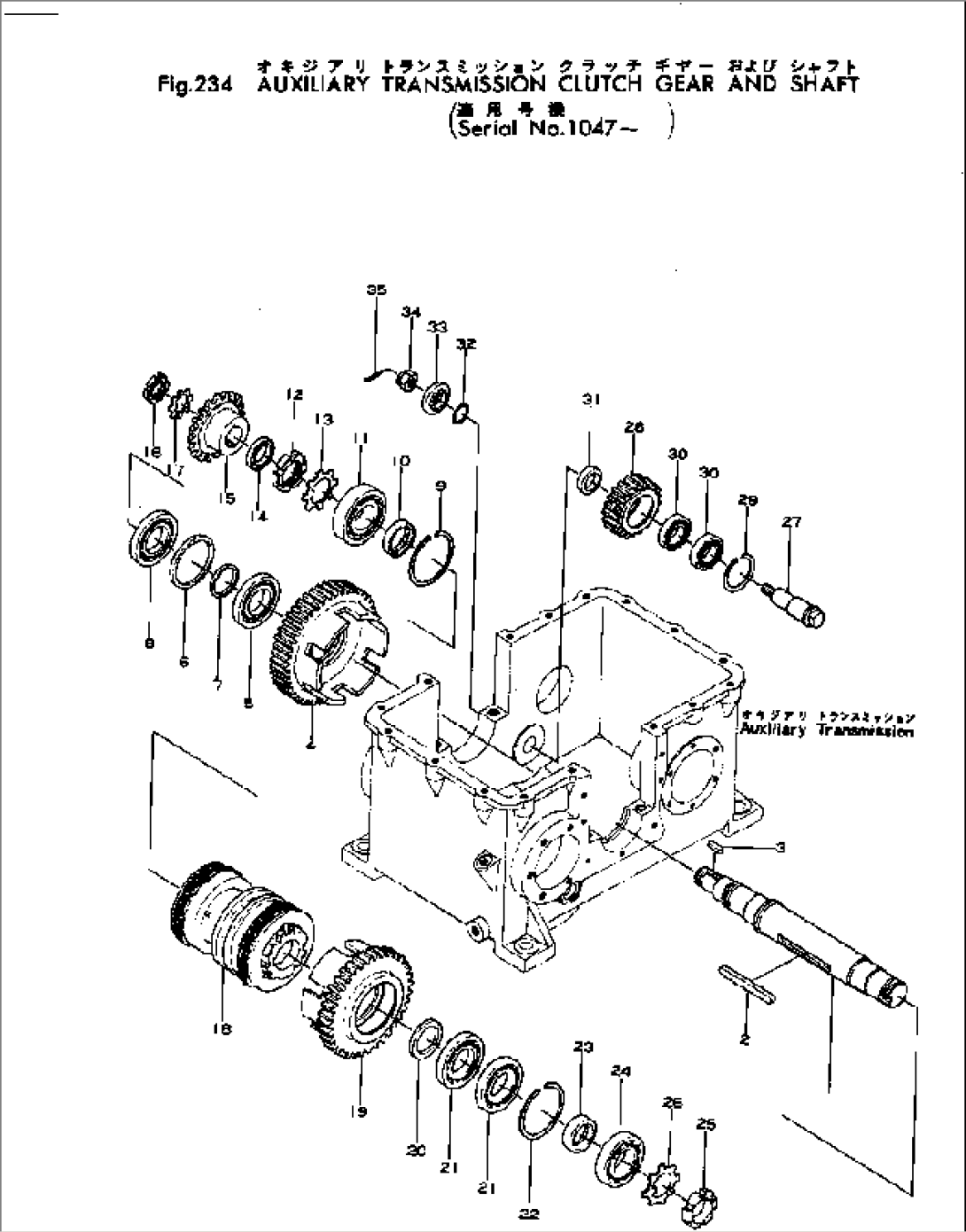

| Item | Part No. | Part Name | Qty | Serial No. |
| (267-30-10002) | TRANSMISSION ASS'Y | 1137- | ||
| (267-30-10001) | TRANSMISSION ASS'Y | 1057-1136 | ||
| (267-30-10000) | TRANSMISSION ASS'Y | 1047-1056 | ||
| 267-30-13102 | SHAFT ASS'Y | 1207- | ||
| \0\267-30-13101 | SHAFT ASS'Y | 1047-1206 | ||
| 1 | 267-30-13111 | SHAFT | 1047- | |
| 2 | 04000-01200 | KEY | 1207- | |
| 267-30-13180 | KEY | 1047-1206 | ||
| 3 | 04000-00722 | KEY | 1047- | |
| 4 | 267-30-13171 | GEAR | 1047- | |
| 5 | 267-30-11610 | BEARING | 1047- | |
| 6 | 267-30-13190 | SPACER | 1047- | |
| 7 | 267-30-13210 | SPACER | 1047- | |
| 8 | 267-30-11610 | BEARING | 1047- | |
| 9 | 265-08-85000 | RING | 1047- | |
| 10 | 267-30-13221 | SPACER | 1047- | |
| 11 | 06000-06308 | BEARING | 1047- | |
| 12 | 265-06-08000 | NUT | 1047- | |
| 13 | 265-07-08000 | WASHER | 1047- | |
| 14 | 266-98-50235 | SEAL | 1047- | |
| 15 | 267-30-13230 | SPROCKET | 1047- | |
| 16 | 265-06-06000 | NUT | 1047- | |
| 17 | 265-07-06000 | WASHER | 1047- | |
| 18 | 267-30-13160 | CLUTCH | 1047- | |
| 19 | 267-30-13141 | GEAR | 1047- | |
| 20 | 267-30-13150 | SPACER | 1047- | |
| 21 | 267-30-11610 | BEARING | 1047- | |
| 22 | 265-08-85000 | RING | 1047- | |
| 23 | 267-30-13131 | SPACER | 1047- | |
| 24 | 06000-06208 | BEARING | 1047- | |
| 25 | 265-06-08000 | NUT | 1047- | |
| 26 | 265-07-08000 | WASHER | 1047- | |
| 27 | 267-30-14410 | SHAFT | 1047- | |
| 28 | 267-30-14420 | GEAR | 1047- | |
| 29 | 265-08-55000 | RING | 1047- | |
| 30 | 08000-06006 | BATTERY | 1047- | |
| 31 | 267-30-14430 | SPACER | 1047- | |
| 32 | 07000-03025 | O-RING | 1047- | |
| 33 | 267-30-14440 | WASHER | 1047- | |
| 34 | 01510-01416 | NUT | 1047- | |
| 35 | 04050-03028 | PIN | 1047- |
