| Item | Part No. | Part Name | Qty | Serial No. |

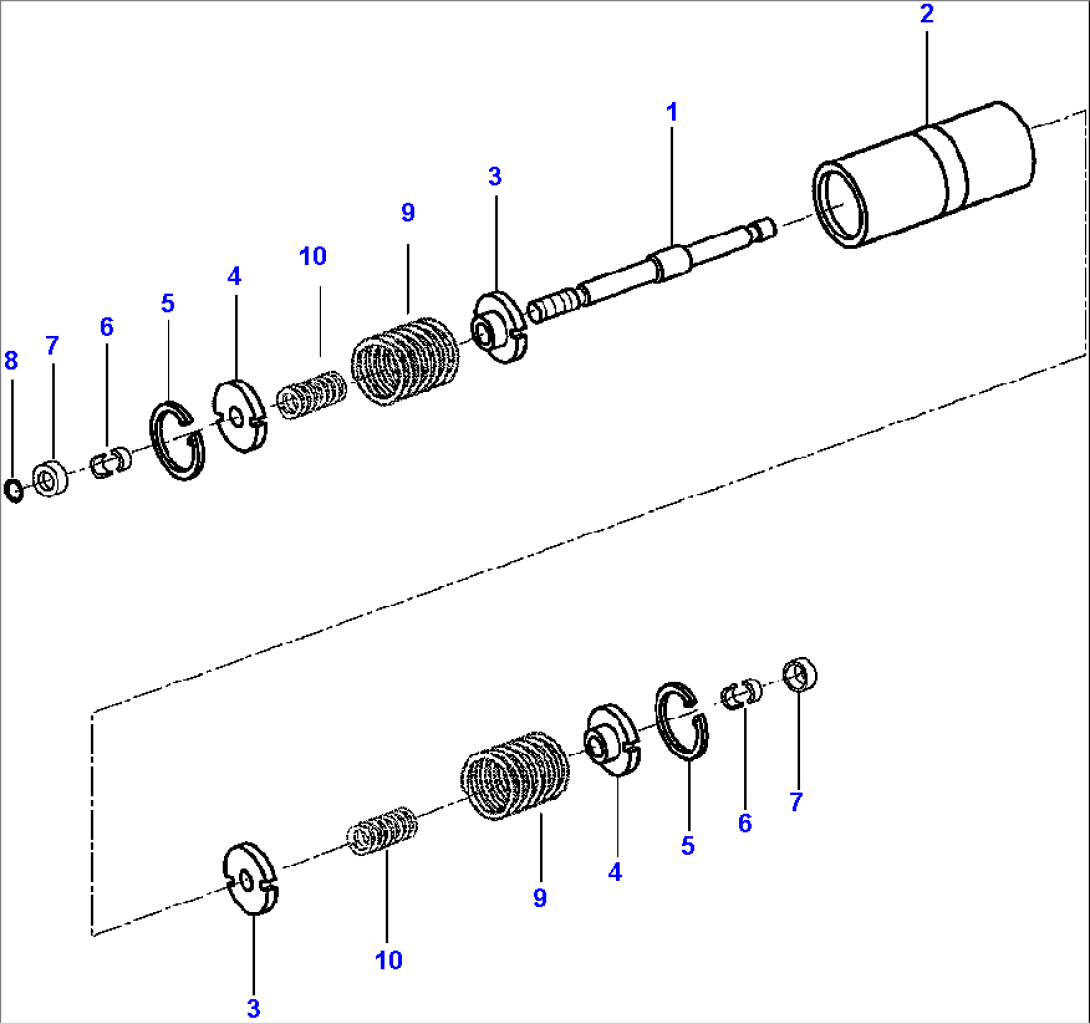

| 1440 654 H92 | PISTON ASSEMBLY, AWD PUMP STROKING | | |
| 1 | 1440 103 H1 | ROD | | |
| 2 | 1440 104 H1 | PISTON | | |
| 3 | 1440 106 H1 | COLLAR, SPRING | | |
| 4 | 1440 105 H1 | COLLAR, SPRING | | |
| 5 | 934 429 R1 | RING, RETAINING | | |
| 6 | 1440 112 H1 | KEEPERS - 8.00 MM | | |
| 1440 111 H1 | KEEPERS - 7.85 MM | | |
| 1440 110 H1 | KEEPERS - 7.90 MM | | |
| 1440 109 H1 | KEEPERS - 7.95 MM | | |
| 1440 108 H1 | KEEPERS - 8.05 MM | | |
| 1440 107 H1 | KEEPERS - 8.10 MM | | |
| 7 | 1440 113 H1 | RETAINER | | |
| 8 | 382 997 R1 | O-RING | | |
| 9 | 1440 114 H1 | SPRING | | |
| 10 | 1440 115 H1 | SPRING | | |
| | | | |
| | F1 - SELECT THE CORRECT KEEPER TO SET THE RETAINING PLATE POSITION | | |
| | | | |
| | | | |
| | F2 - INCLUDED IN THE FOLLOWING: | | |
| 1438 667 H91 | KIT, SEAL | | |
