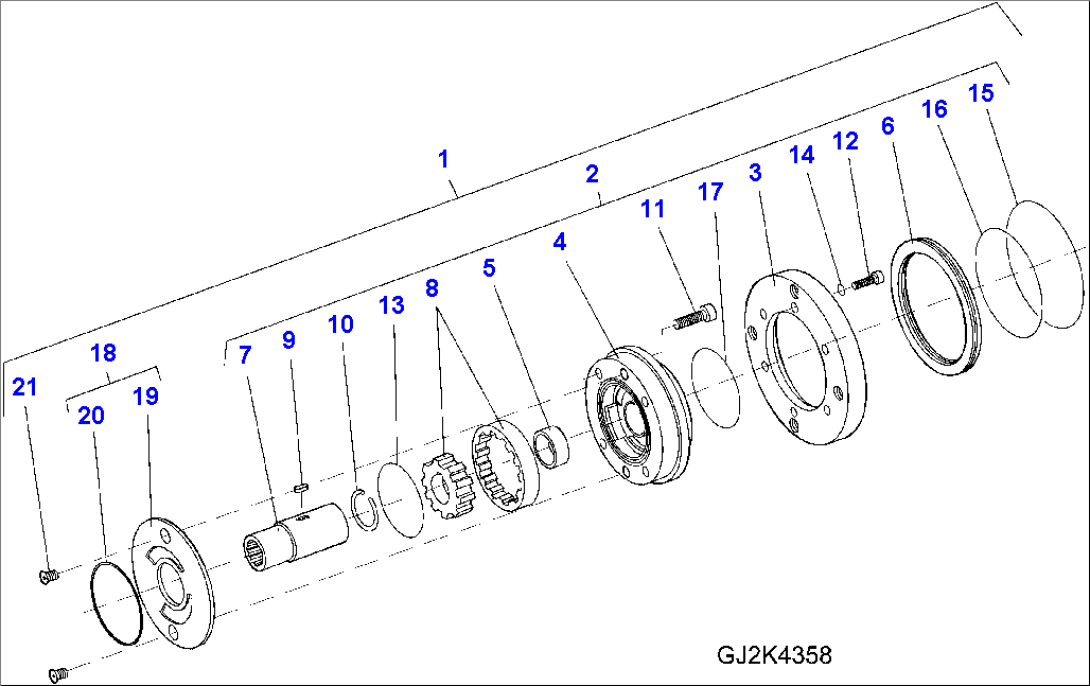

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42R-17-H0P04 | GEAR PUMP ASSEMBLY | ||
| 2 | 42W-17-H0P83 | GEAR PUMP | ||
| 3 | 42R-17-H0P88 | FLANGE | ||
| 4 | 42W-17-H0P84 | PUMP COVER | ||
| 5 | 42R-17-H0P72 | LINER ASSEMBLY | ||
| 6 | 42R-17-H0P90 | RING | ||
| 7 | 42R-17-H0P91 | DRIVE SHAFT | ||
| 8 | 42T-17-H0P81 | GEAR | ||
| 9 | 42R-17-H0P92 | KEY PARALLEL | ||
| 10 | 42R-17-H0P93 | SNAP RING | ||
| 11 | 42R-17-H0P94 | SCREW | ||
| 12 | 42U-09-H3880 | SCREW | ||
| 13 | 42R-17-H0P96 | O-RING | ||
| 14 | 42R-17-H0P97 | SEAL | ||
| 15 | 42R-17-H0P98 | O-RING | ||
| 16 | 42R-17-H0P99 | O-RING | ||
| 17 | 42R-17-H0R01 | O-RING | ||
| 18 | 42T-17-H0P78 | WEAR PLATE | ||
| 19 | 42T-17-H0P84 | WEAR PLATE | ||
| 20 | 42R-17-H0P96 | O-RING | ||
| 21 | 42T-17-H0P91 | GUIDE SLEEVE |
