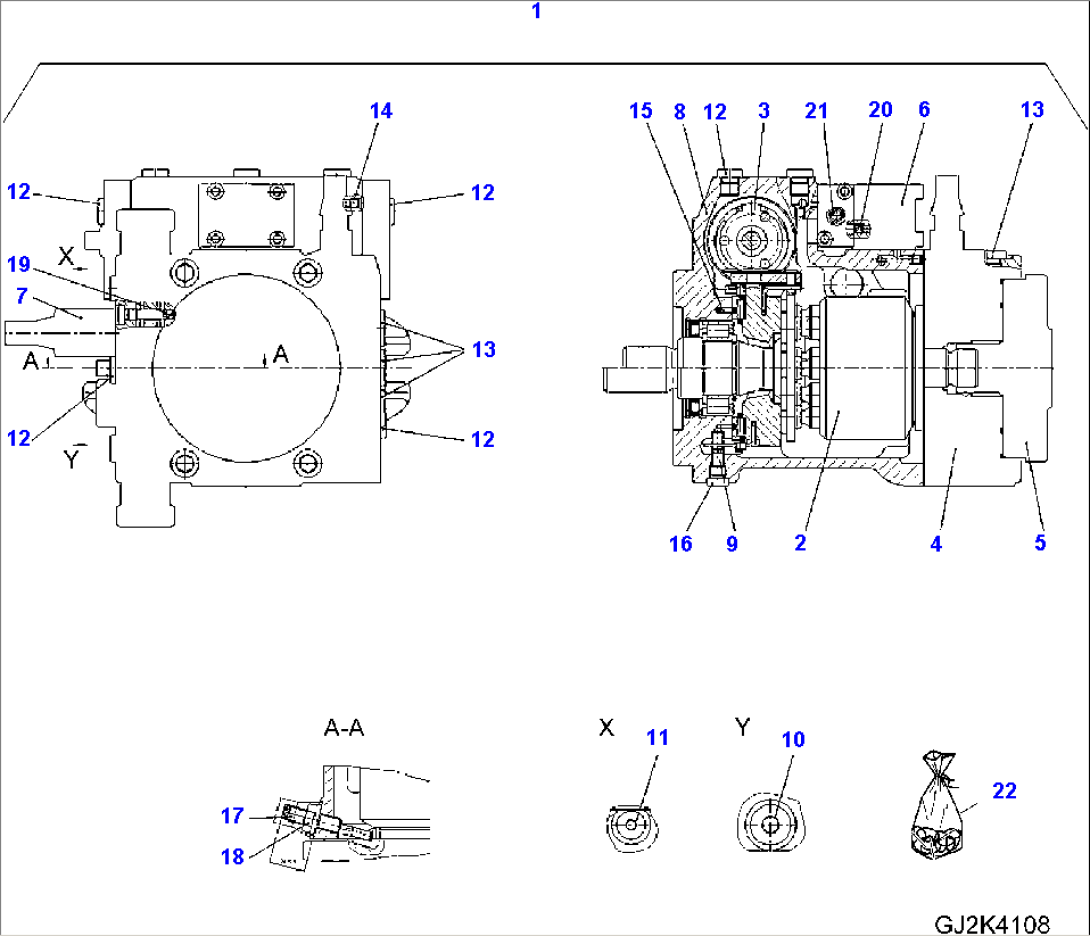

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42T-17-21140 | AXIAL PISTON PUMP | ||
| 2 | 42T-17-H0P00 | PUMP | ||
| 3 | 42U-17-H0S76 | VARIATOR | ||
| 4 | 42T-17-H0P13 | VALVE BLOCK | ||
| 5 | 42U-17-H0S18 | GEAR PUMP ASSEMBLY | ||
| 6 | 42U-17-H0S77 | SOLENOID VALVE | ||
| 7 | 42U-17-H0S19 | THROTTLE VALVE | ||
| 8 | 42U-17-H0S20 | HOUSING | ||
| 9 | 42T-17-H0P03 | LINK PIN | ||
| 10 | 42R-17-H0P15 | PLUG | ||
| 11 | 42R-17-H0P10 | PLUG | ||
| 12 | 42R-17-H0P11 | PLUG | ||
| 13 | 42R-17-H0P18 | PLUG | ||
| 14 | 42R-17-H0P12 | PLUG | ||
| 15 | 42R-17-H0P13 | DOWEL PIN | ||
| 16 | 42R-17-H0P14 | PLUG | ||
| 17 | 42U-17-H0P93 | ADJUSTING SCREW | ||
| 18 | 42R-17-H0P83 | NUT | ||
| 19 | 42U-17-H0S21 | NOZZLE | ||
| 20 | 42R-17-H0P20 | NOZZLE | ||
| 21 | 42R-17-H0T20 | CONTROL | ||
| 22 | * | NOT USED |
