| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42R-17-H0S89 | VARIATOR | ||
| 2 | 42R-17-H0S93 | PISTON ASSEMBLY | ||
| 3 | 42R-17-H0P42 | COVER | ||
| 4 | 42R-17-H0P43 | COVER | ||
| 5 | 42R-17-H0P44 | NUT | ||
| 6 | 42R-17-H0P45 | SCREW | ||
| 7 | 42R-17-H0P46 | O-RING | ||
| 8 | 42R-17-H0P47 | GUIDE BUSH | ||
| 9 | 42R-17-H0P48 | SEAL |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa80 5 s/n h50051 up (30km/h)
- Windshield wiper washer system, canopy
- Axial piston pump, with speed control
Поиск по каталогу

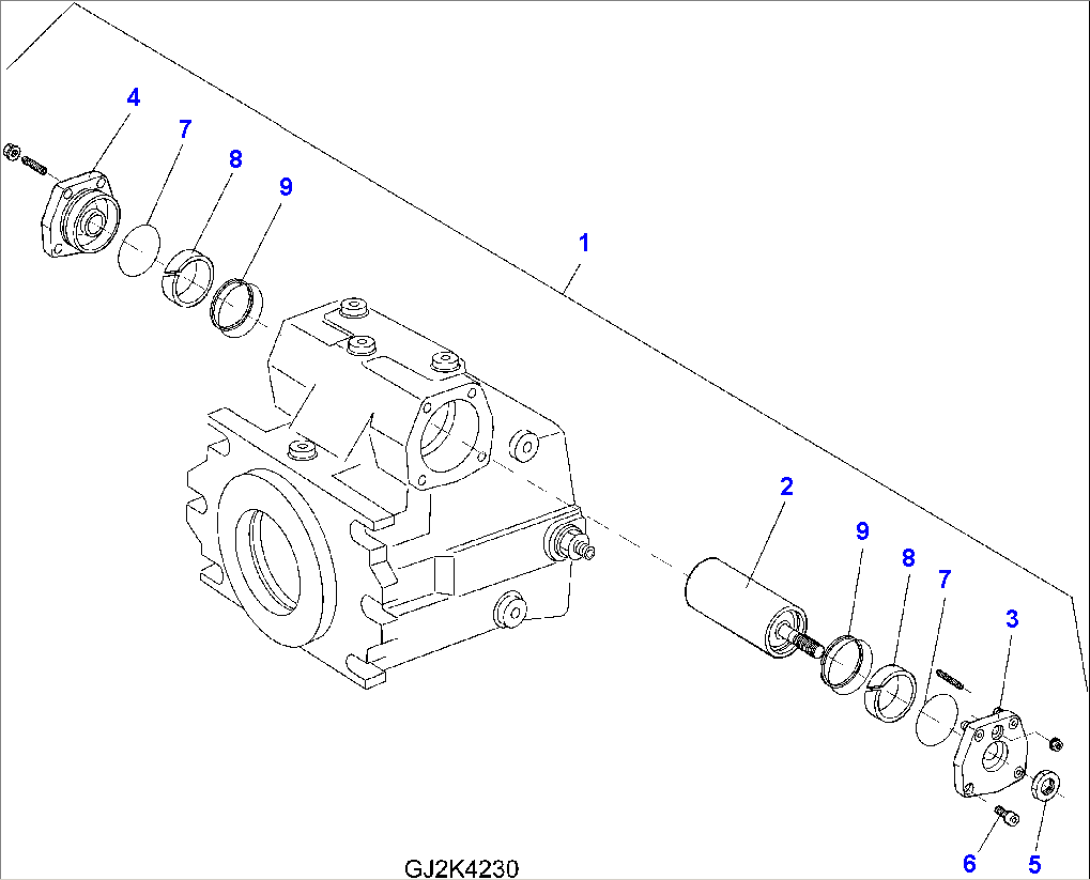

AXIAL PISTON PUMP, WITH SPEED CONTROL
