| Item | Part No. | Part Name | Qty | Serial No. |

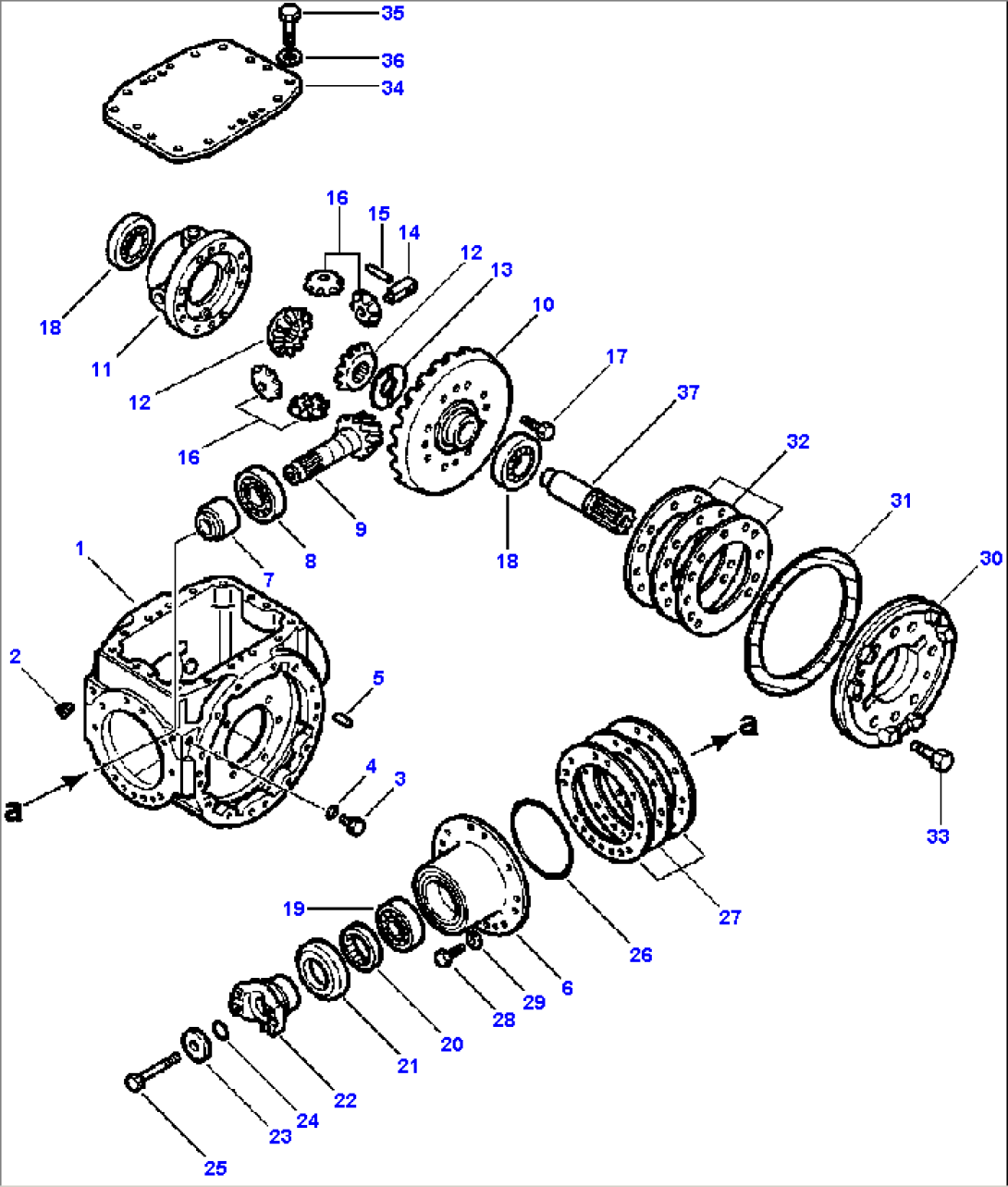

| 416-23-11030 | DIFFERENTIAL ASSEMBLY, REAR | |||
| 1 | 417-23-13112 | HOUSING, REAR DIFFERENTIAL | ||
| 2 | 07043-50211 | PLUG | ||
| 3 | 07040-11209 | PLUG | ||
| 4 | 07002-01223 | O-RING | ||
| 5 | 04020-01228 | PIN, DOWEL | ||
| 6 | 417-23-11132 | CAGE | ||
| 7 | 417-22-11860 | SPACER | ||
| 8 | 417-22-11810 | BEARING | ||
| 417-22-11204 | PINION AND GEAR ASSEMBLY | |||
| 9 | (NSS) | PINION | ||
| 10 | (NSS) | GEAR | ||
| 11 | 417-22-11513 | CARRIER | ||
| 12 | 417-22-11432 | GEAR | ||
| 13 | 417-22-11530 | WASHER | ||
| 14 | 417-22-11410 | SHAFT | ||
| 15 | 417-22-11442 | PIN | ||
| 16 | 417-22-11420 | PINION | ||
| 17 | 01010-61645 | BOLT | ||
| 18 | 417-22-11850 | BEARING | ||
| 19 | 417-22-11820 | BEARING | ||
| 20 | 07012-00065 | SEAL, OIL | ||
| 21 | 417-22-11310 | RETAINER | ||
| 22 | 417-22-11231 | COUPLING | ||
| 23 | 417-15-13770 | HOLDER | ||
| 24 | 07000-03035 | O-RING | ||
| 25 | 01011-61615 | BOLT | ||
| 26 | 07000-05160 | O-RING | ||
| 27 | 417-22-11360 | SHIM (0.05mm) | ||
| 417-22-11370 | SHIM (0.2mm) | |||
| 417-22-11380 | SHIM (0.3mm) | |||
| 417-22-11390 | SHIM (0.8mm) | |||
| 28 | 01010-61235 | BOLT | ||
| 29 | 01643-31232 | WASHER | ||
| 30 | 417-22-11162 | CARRIER | ||
| 31 | 417-33-11430 | RING | ||
| 32 | 417-22-11461 | SHIM (0.07mm) | ||
| 417-22-11471 | SHIM (0.2mm) | |||
| 417-22-11481 | SHIM (0.3mm) | |||
| 417-22-11491 | SHIM (0.8mm) | |||
| 33 | 01010-61230 | BOLT, CARRIER | ||
| 34 | 417-22-13121 | COVER | ||
| 35 | 01010-61230 | BOLT, COVER | ||
| 36 | 01643-31232 | WASHER | ||
| 37 | SHAFT (SEE PG 03-020) |
