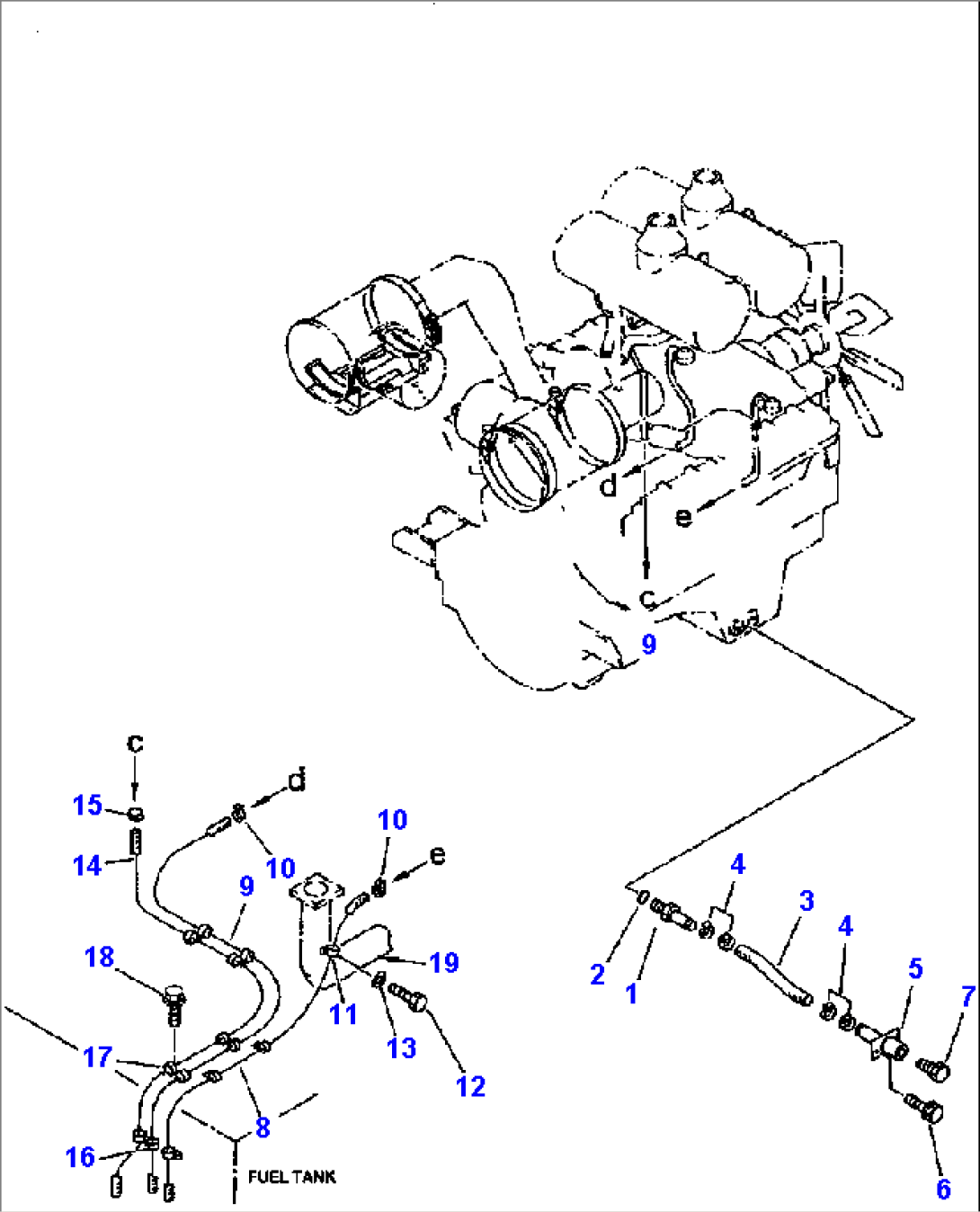

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-01-A1180 | TUBE | A50001-- | |
| 2 | 427-01-A1220 | O-RING | A50001-- | |
| 3 | 424-01-11140 | HOSE, OIL DRAIN | A50001-- | |
| 4 | CD 8 419 | CLAMP | A50001-- | |
| 5 | 426-01-11231 | TUBE, OIL DRAIN | A50001-- | |
| 6 | 01435-01030 | BOLT | A50001-- | |
| 7 | 424-01-11110 | PLUG | A50001-- | |
| 8 | 07287-01915 | HOSE, BREATHER | A50001-- | |
| 9 | 07287-01921 | HOSE, BREATHER | A50001-- | |
| 10 | 07285-00220 | CLIP | A50001-- | |
| 11 | 08036-02514 | CLIP | A50001-- | |
| 12 | 01010-81016 | BOLT | A50001-- | |
| 13 | 01643-31032 | WASHER | A50001-- | |
| 14 | 07287-01020 | HOSE, BREATHER | A50001-- | |
| 15 | 07280-01620 | CLAMP | A50001-- | |
| 16 | 08036-02514 | CLIP | A50001-- | |
| 17 | 08036-01814 | CLIP | A50001-- | |
| 18 | 01435-01016 | BOLT | A50001-- | |
| 19 | TUBE (SEE FIG. C0120-01A0 ) | A50001-- |
