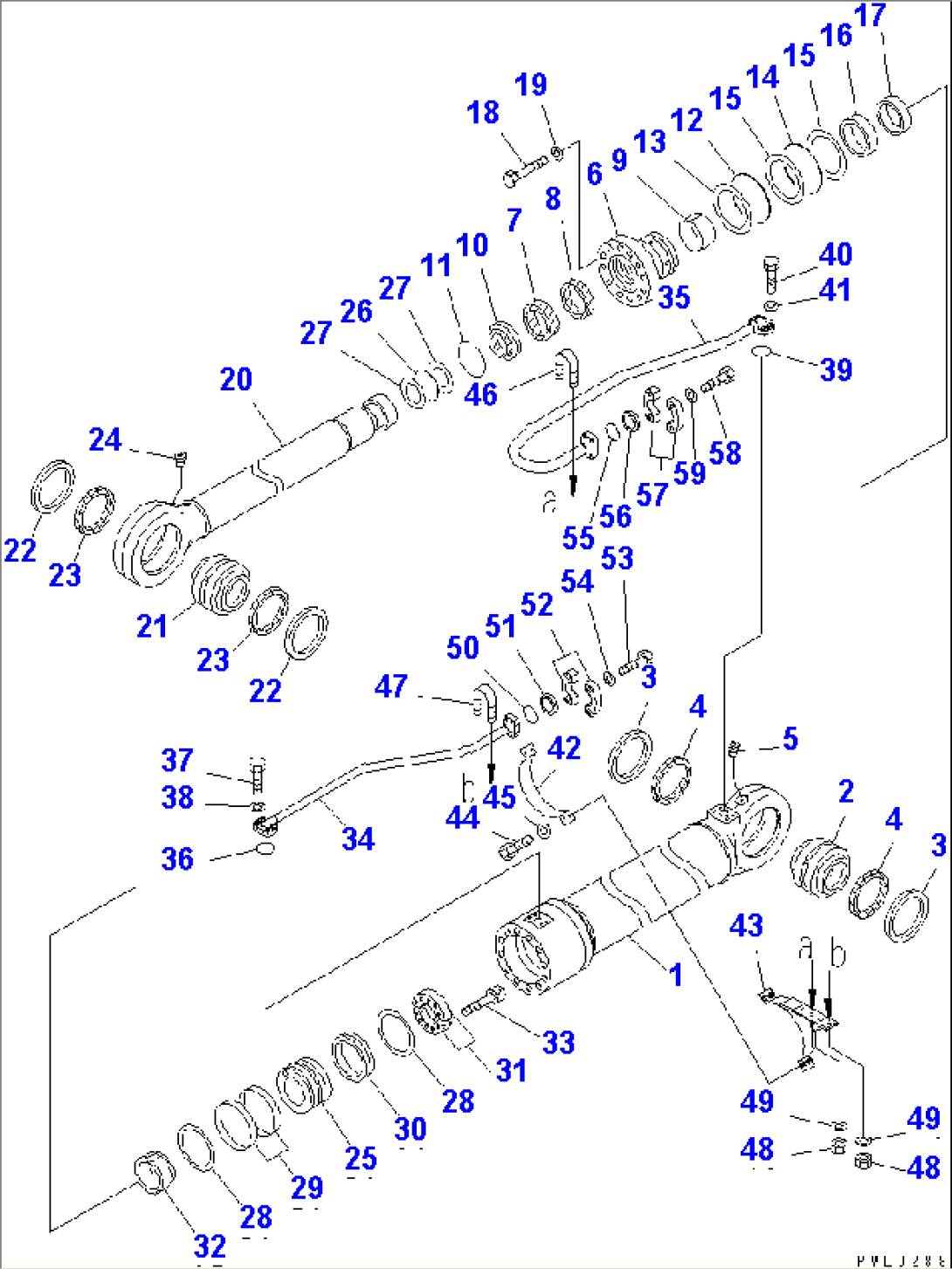

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\707-01-XZ530) | CYLINDER GROUP,L.H. (FINAL COATING) | 20001- | |
| G-2 | (\8\707-01-XZ540) | CYLINDER GROUP,R.H. (FINAL COATING) | 20001- | |
| ==================== | ||||
| 21N-63-03100 | CYLINDER ASS'Y | 20001- | ||
| 1 | 21N-63-56340 | CYLINDER | 20001- | |
| 2 | 707-46-14010 | BUSHING | 20001- | |
| 3 | 21T-72-15860 | BUSHING | 20001- | |
| 4 | 21T-72-15870 | SEAL,DUST (KIT) | 20001- | |
| 5 | 07043-00108 | PLUG | 20001- | |
| 6 | 707-28-22710 | HEAD,CYLINDER | 20001- | |
| 7 | 707-51-16030 | PACKING,ROD (KIT) | 20001- | |
| 8 | 707-51-16630 | RING,BUFFER (KIT) | 20001- | |
| 9 | 707-52-91350 | BUSHING | 20001- | |
| 10 | 566-63-22241 | SEAL,DUST (KIT) | 20001- | |
| 11 | 07179-14180 | RING,SNAP | 20001- | |
| 12 | 07000-15220 | O-RING (KIT) | 20001- | |
| 13 | 707-35-92300 | RING,BACK-UP | 20001- | |
| 14 | 07000-15220 | O-RING (KIT) | 20001- | |
| 15 | 07001-05220 | RING,BACK-UP (KIT) | 20001- | |
| 16 | 707-71-31820 | COLLAR | 20001- | |
| 17 | 707-71-11750 | RING | 20001- | |
| 18 | 01011-83010 | BOLT | 20001- | |
| 19 | 01643-33080 | WASHER | 20001- | |
| 20 | 21N-63-56320 | ROD,PISTON | 20001- | |
| 21 | 707-46-14010 | BUSHING | 20001- | |
| 22 | 21T-72-15860 | BUSHING | 20001- | |
| 23 | 21T-72-15870 | SEAL,DUST (KIT) | 20001- | |
| 24 | 07043-00108 | PLUG | 20001- | |
| 25 | 707-36-22300 | PISTON | 20001- | |
| 26 | 07000-15135 | O-RING (KIT) | 20001- | |
| 27 | 707-35-91440 | RING,BACK-UP (KIT) | 20001- | |
| 28 | 707-44-22920 | RING | 20001- | |
| 29 | 707-39-22820 | RING,WEAR (KIT) | 20001- | |
| 30 | 707-44-22280 | RING,PISTON (KIT) | 20001- | |
| 31 | 707-40-22870 | SPACER | 20001- | |
| 32 | 707-71-51750 | PLUNGER | 20001- | |
| 33 | 01252-61670 | BOLT | 20001- | |
| 34 | 21N-63-56370 | TUBE,L.H. | 20001- | |
| 21N-63-56470 | TUBE,R.H. | 20001- | ||
| 35 | 21N-62-13110 | TUBE,L.H. | 20001- | |
| 21N-62-13120 | TUBE,R.H. | 20001- | ||
| 36 | 07000-13038 | O-RING (KIT) | 20001- | |
| 37 | 01010-81245 | BOLT | 20001- | |
| 38 | 01643-31232 | WASHER | 20001- | |
| 39 | 07000-13048 | O-RING (KIT) | 20001- | |
| 40 | 01010-81450 | BOLT | 20001- | |
| 41 | 01643-31445 | WASHER | 20001- | |
| 42 | 21N-62-18440 | BAND | 20001- | |
| 43 | 21N-62-13150 | BRACKET | 20001- | |
| 44 | 01010-81240 | BOLT | 20001- | |
| 45 | 01643-31232 | WASHER | 20001- | |
| 46 | 07283-23442 | CLIP | 20001- | |
| 47 | 07283-24346 | CLIP | 20001- | |
| 48 | 01599-01011 | NUT | 20001- | |
| 49 | 01643-31032 | WASHER | 20001- | |
| 50 | 07000-13038 | O-RING | 20001- | |
| 51 | 07378-11210 | HEAD | 20001- | |
| 52 | 07371-51260 | FLANGE | 20001- | |
| 53 | 01010-81245 | BOLT | 20001- | |
| 54 | 01643-31232 | WASHER | 20001- | |
| 55 | 07000-13048 | O-RING | 20001- | |
| 56 | 07378-11410 | HEAD | 20001- | |
| 57 | 07371-51470 | FLANGE | 20001- | |
| 58 | 01010-81455 | BOLT | 20001- | |
| 59 | 01643-31445 | WASHER | 20001- | |
| ==================== | ||||
| K | 707-99-78700 | SERVICE KIT | 20001- |
