| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-20990 | HOSE | ||
| 2 | 07281-00197 | CLAMP | ||
| 3 | 04434-51910 | CLIP | ||
| 4 | 01010-81016 | BOLT | ||
| 5 | 01643-31032 | WASHER | ||
| 6 | 07283-34346 | U-BOLT | ||
| 7 | 01643-31032 | WASHER | ||
| 8 | 22P-70-12160 | NUT |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 7 s/n a94001 up
- Engine related parts
- B0100 01a1 engine drain piping
Поиск по каталогу

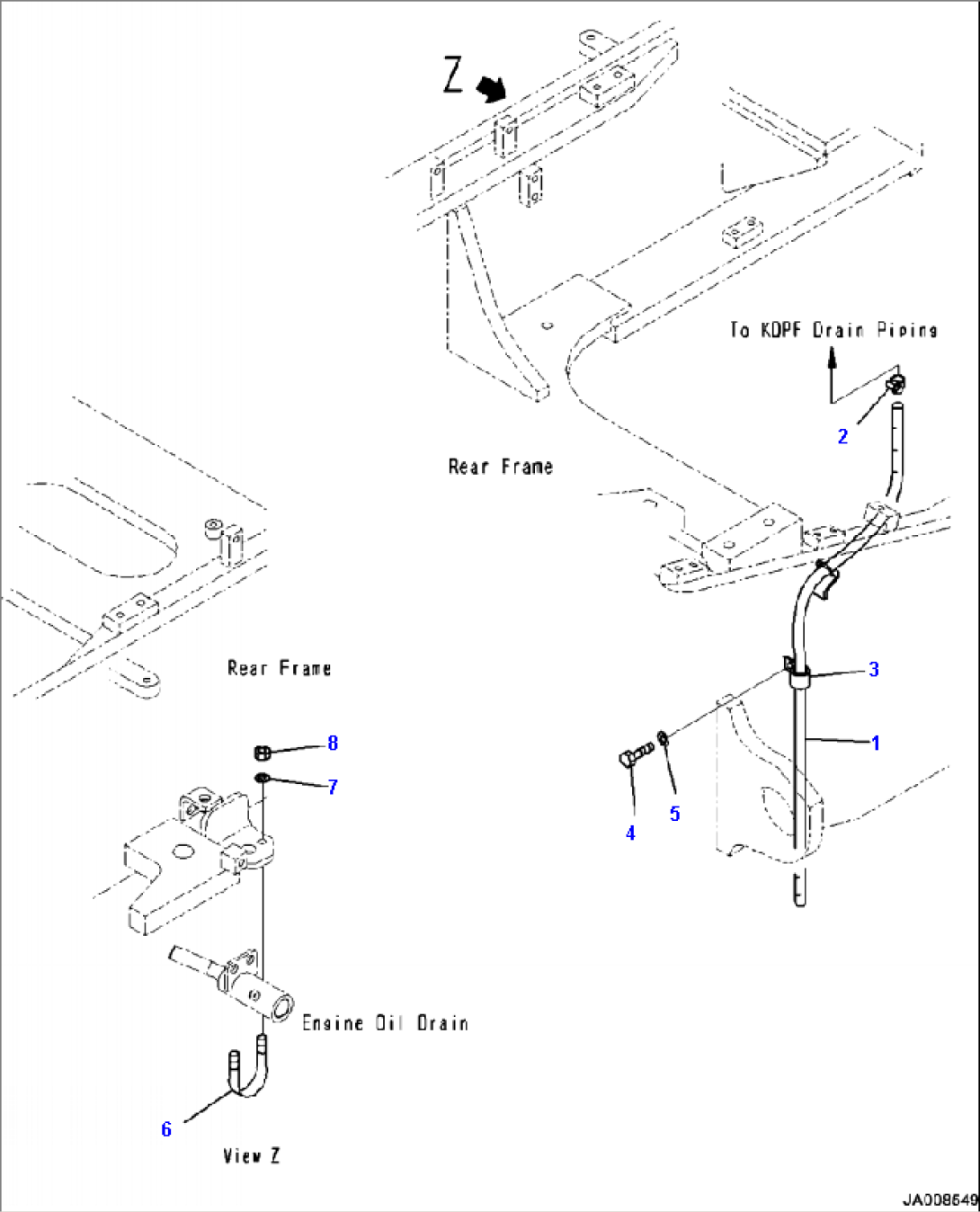

B0100-01A1 ENGINE DRAIN PIPING
