| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-20990 | HOSE | A92001-- | |
| 2 | 07285-00155 | CLIP | A92001-- | |
| 3 | 04434-53412 | CLIP | A92001-- | |
| 4 | 01010-81020 | BOLT | A92001-- | |
| 5 | 01643-31032 | WASHER | A92001-- | |
| 6 | 01010-81025 | BOLT | A92001-- | |
| 7 | 01643-31032 | WASHER | A92001-- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 6 s/n a92001 a93000
- Engine related parts
- B0100 02a0 engine oil drain line mounting
Поиск по каталогу

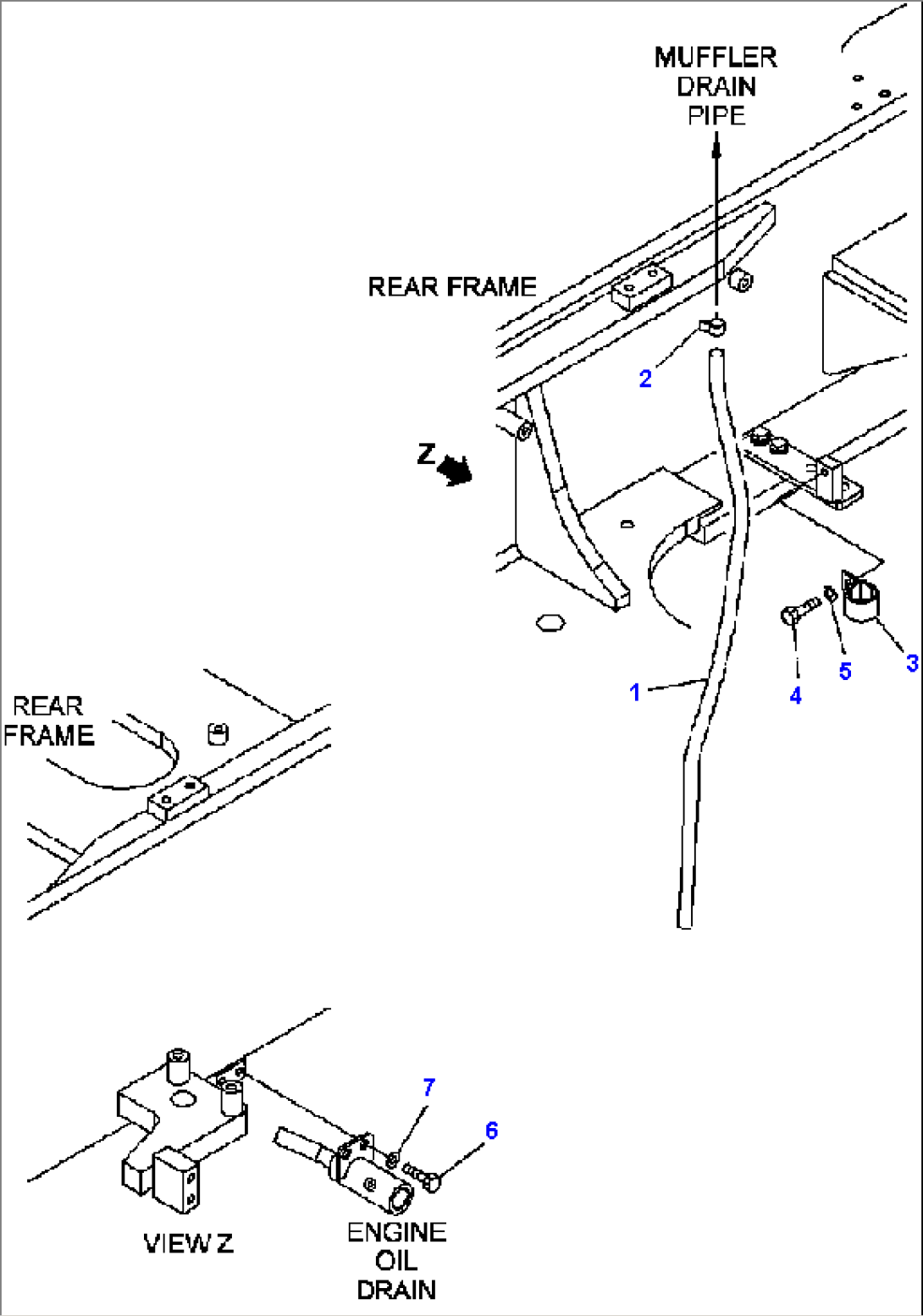

B0100-02A0 ENGINE OIL DRAIN LINE MOUNTING
