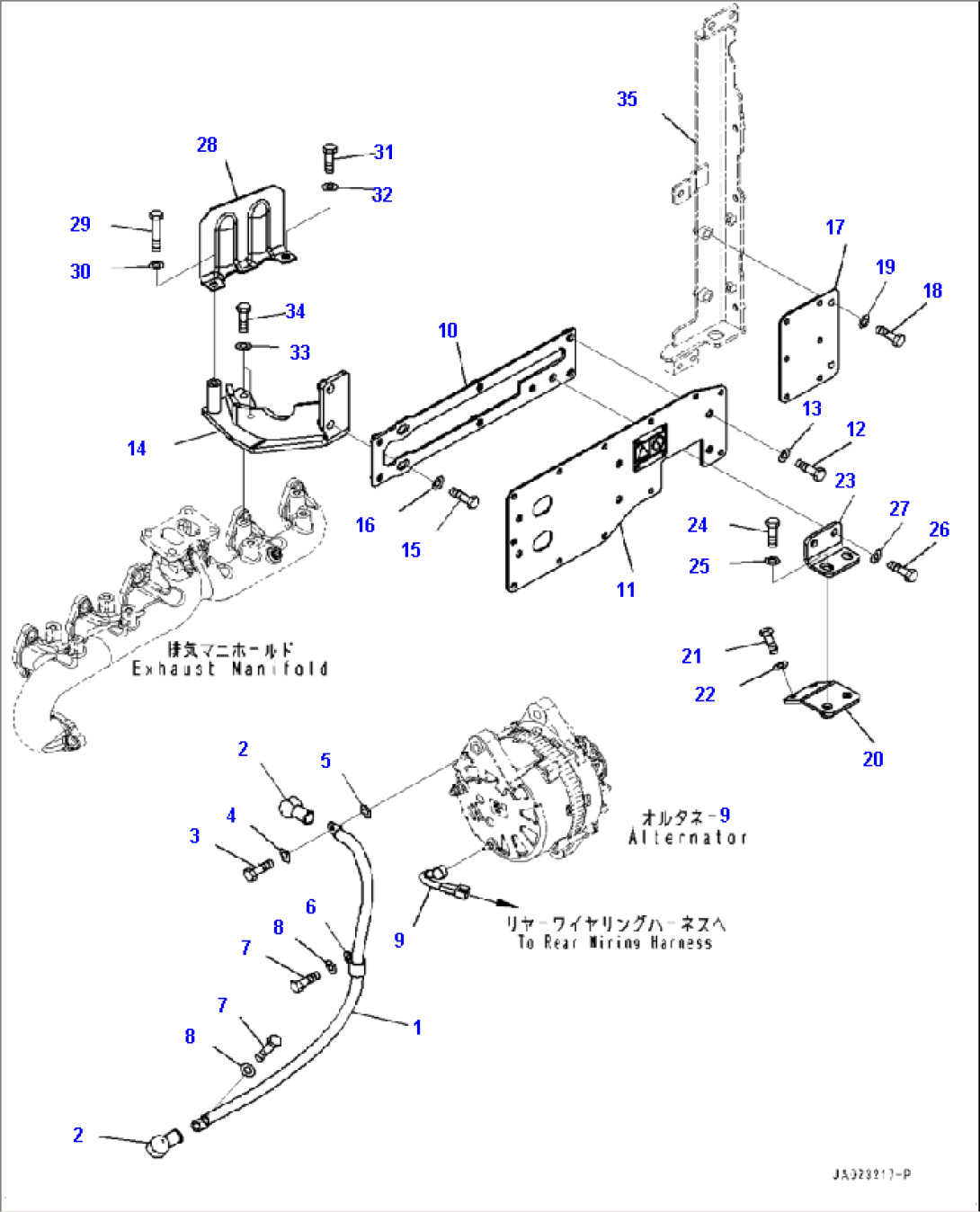

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-Z91-5240 | CABLE | ||
| 2 | 08038-04030 | CAP | ||
| 3 | 01010-80620 | BOLT | ||
| 4 | 01643-30623 | WASHER | ||
| 5 | 7875-32-2110 | WASHER | ||
| 6 | 600-051-2180 | CLIP | ||
| 7 | 01010-81020 | BOLT | ||
| 8 | 01643-31032 | WASHER | ||
| 9 | 419-06-62480 | CABLE | ||
| 10 | 419-01-62411 | BRACKET | ||
| 11 | 419-01-62451 | COVER | ||
| 12 | 01010-81025 | BOLT | ||
| 13 | 01643-31032 | WASHER | ||
| 14 | 419-01-62420 | BRACKET | ||
| 15 | 01010-81230 | BOLT | ||
| 16 | 01643-31232 | WASHER | ||
| 17 | 419-01-62461 | COVER | ||
| 18 | 01010-81030 | BOLT | ||
| 19 | 01643-31032 | WASHER | ||
| 20 | 423-01-62461 | BRACKET | ||
| 21 | 01010-81030 | BOLT | ||
| 22 | 01643-31032 | WASHER | ||
| 23 | 423-01-62481 | BRACKET | ||
| 24 | 01010-81230 | BOLT | ||
| 25 | 01643-31232 | WASHER | ||
| 26 | 01010-81025 | BOLT | ||
| 27 | 01643-31032 | WASHER | ||
| 28 | 423-01-62440 | COVER | ||
| 29 | 01010-81085 | BOLT | ||
| 30 | 01643-31032 | WASHER | ||
| 31 | 01010-81030 | BOLT | ||
| 32 | 01643-31032 | WASHER | ||
| 33 | 01643-A1032 | WASHER | ||
| 34 | 01010-E1030 | BOLT | ||
| 35 | BRACKET (SEE FIG. M4100-001005 ) |
