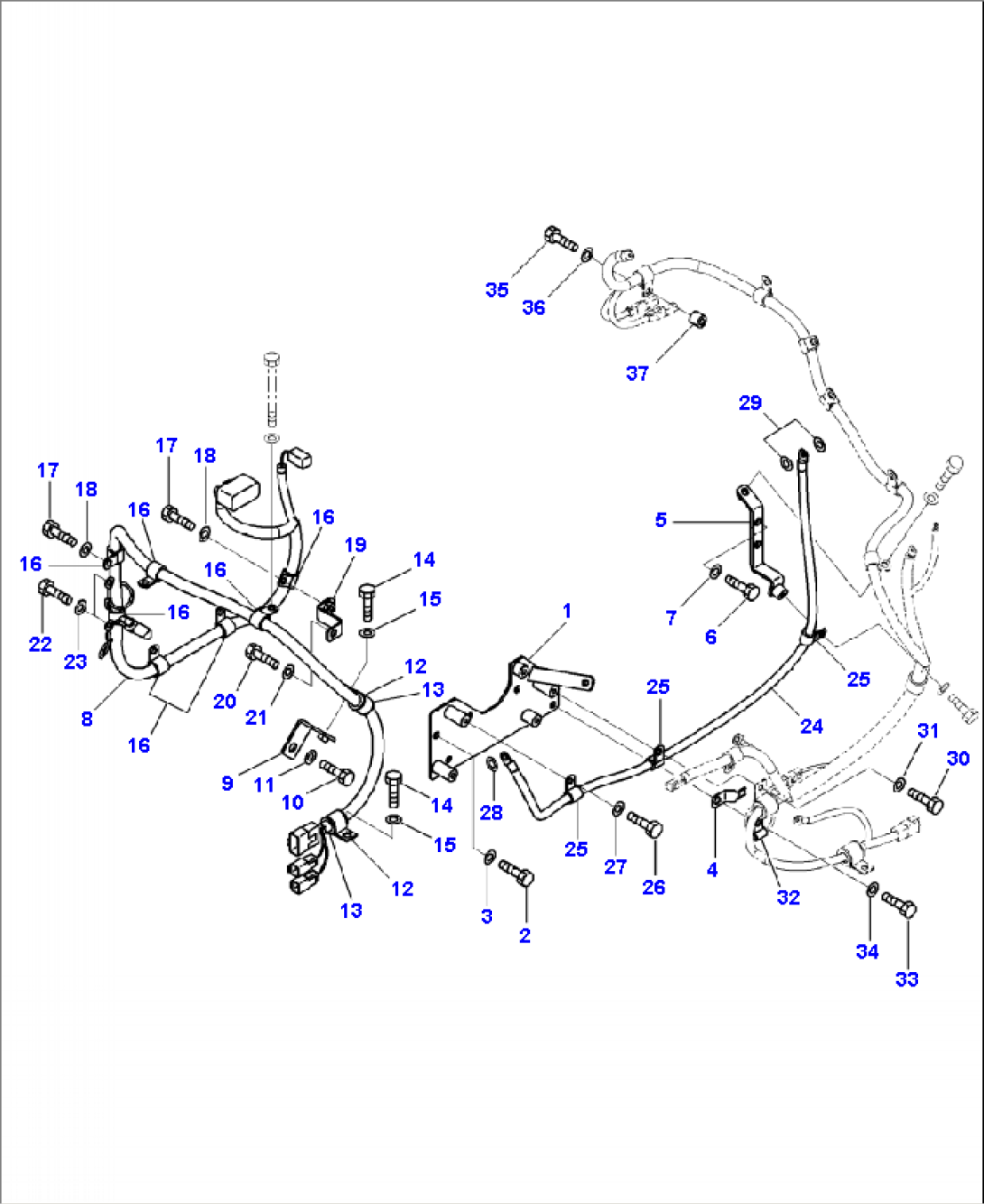

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-42211 | BRACKET | A47001-- | |
| 2 | 01010-81025 | BOLT | A47001-- | |
| 3 | 01643-31032 | WASHER | A47001-- | |
| 4 | 08193-21012 | CLIP | A47001-- | |
| 5 | 421-06-42221 | BRACKET | A47001-- | |
| 6 | 01010-81025 | BOLT | A47001-- | |
| 7 | 01643-31032 | WASHER | A47001-- | |
| 8 | 421-06-42281 | WIRING HARNESS | A47001-- | |
| 9 | 421-06-41350 | PLATE | A47001-- | |
| 10 | 01010-81430 | BOLT | A47001-- | |
| 11 | 01643-31445 | WASHER | A47001-- | |
| 12 | 04434-52512 | CLIP | A47001-- | |
| 13 | 07095-20318 | CUSHION | A47001-- | |
| 14 | 01010-81020 | BOLT | A47001-- | |
| 15 | 01643-31032 | WASHER | A47001-- | |
| 16 | 600-051-2200 | CLIP | A47001-- | |
| 17 | 01010-81020 | BOLT | A47001-- | |
| 18 | 01643-31032 | WASHER | A47001-- | |
| 19 | 421-06-42240 | PLATE | A47001-- | |
| 20 | 01010-81020 | BOLT | A47001-- | |
| 21 | 01643-31032 | WASHER | A47001-- | |
| 22 | 01010-81420 | BOLT | A47001-- | |
| 23 | 01643-31445 | WASHER | A47001-- | |
| 24 | 421-06-42141 | WIRE | A47001-- | |
| 25 | 600-051-2140 | CLIP | A47001-- | |
| 26 | 01010-81020 | BOLT | A47001-- | |
| 27 | 01643-31032 | WASHER | A47001-- | |
| 28 | 01643-31032 | WASHER | A47001-- | |
| 29 | 22W-70-16120 | WASHER | A47001-- | |
| 30 | 01010-81025 | BOLT | A47001-- | |
| 31 | 01643-31032 | WASHER | A47001-- | |
| 32 | 600-051-2060 | CLIP | A47001-- | |
| 33 | 01010-81020 | BOLT | A47001-- | |
| 34 | 01643-31032 | WASHER | A47001-- | |
| 35 | 01010-81040 | BOLT | A47001-- | |
| 36 | 01643-31032 | WASHER | A47001-- | |
| 37 | 175-79-83760 | SPACER | A47001-- |
