| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-02-12310 | HOSE | A11001-- | |
| 2 | 1252 151 H1 | CLAMP, HOSE | A11001-- | |
| 3 | 56D-02-22280 | HOSE | A11001-- | |
| 4 | 07299-00080 | CLAMP, HOSE | A11001-- | |
| 5 | 56D-02-22330 | HOSE | A11001-- | |
| 6 | 07299-00080 | CLAMP, HOSE | A11001-- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm300 2 s/n a11001 up
- Engine related parts
- B0130 02a0 air intake and exhaust connectors
Поиск по каталогу

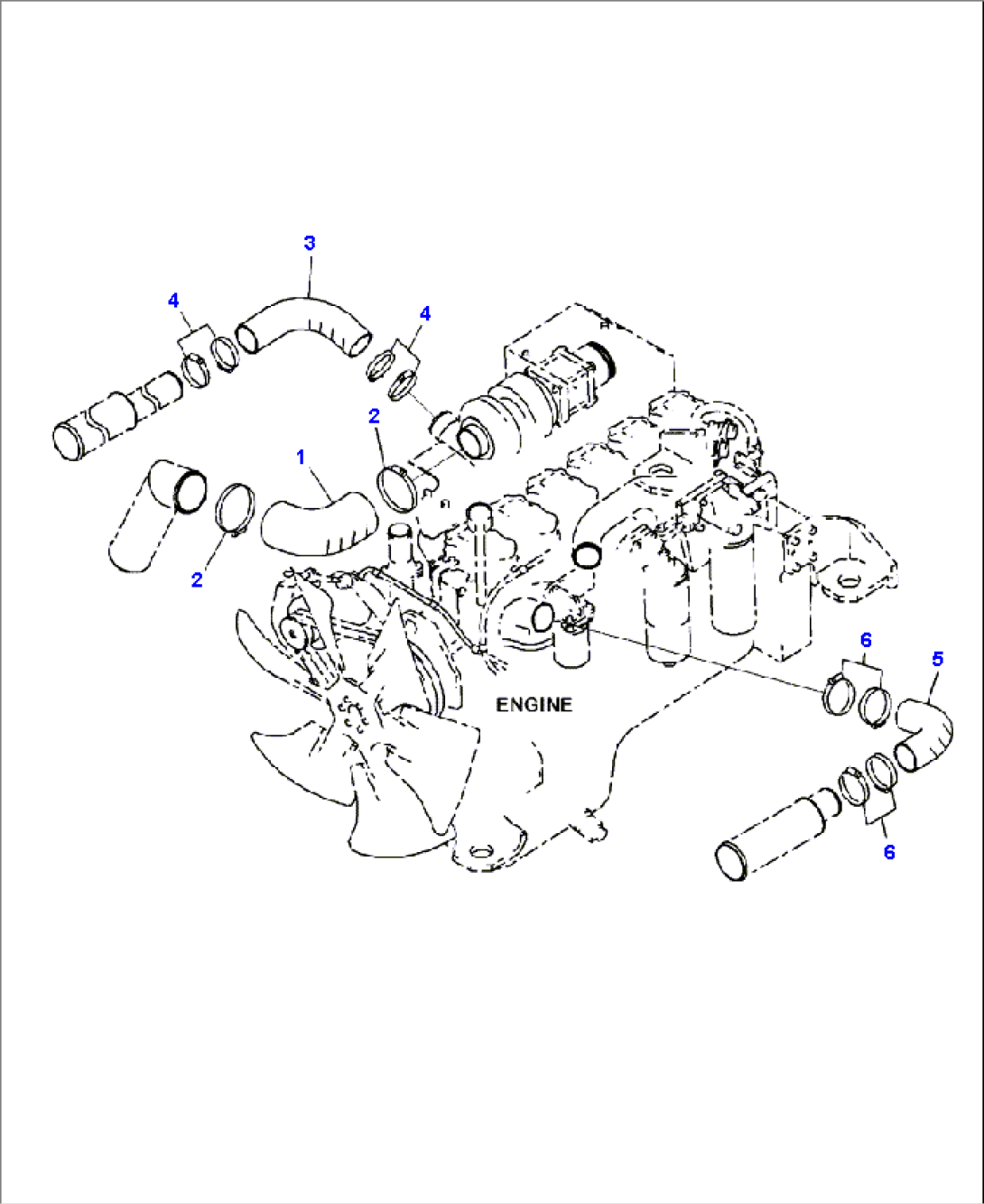

B0130-02A0 AIR INTAKE AND EXHAUST CONNECTORS
