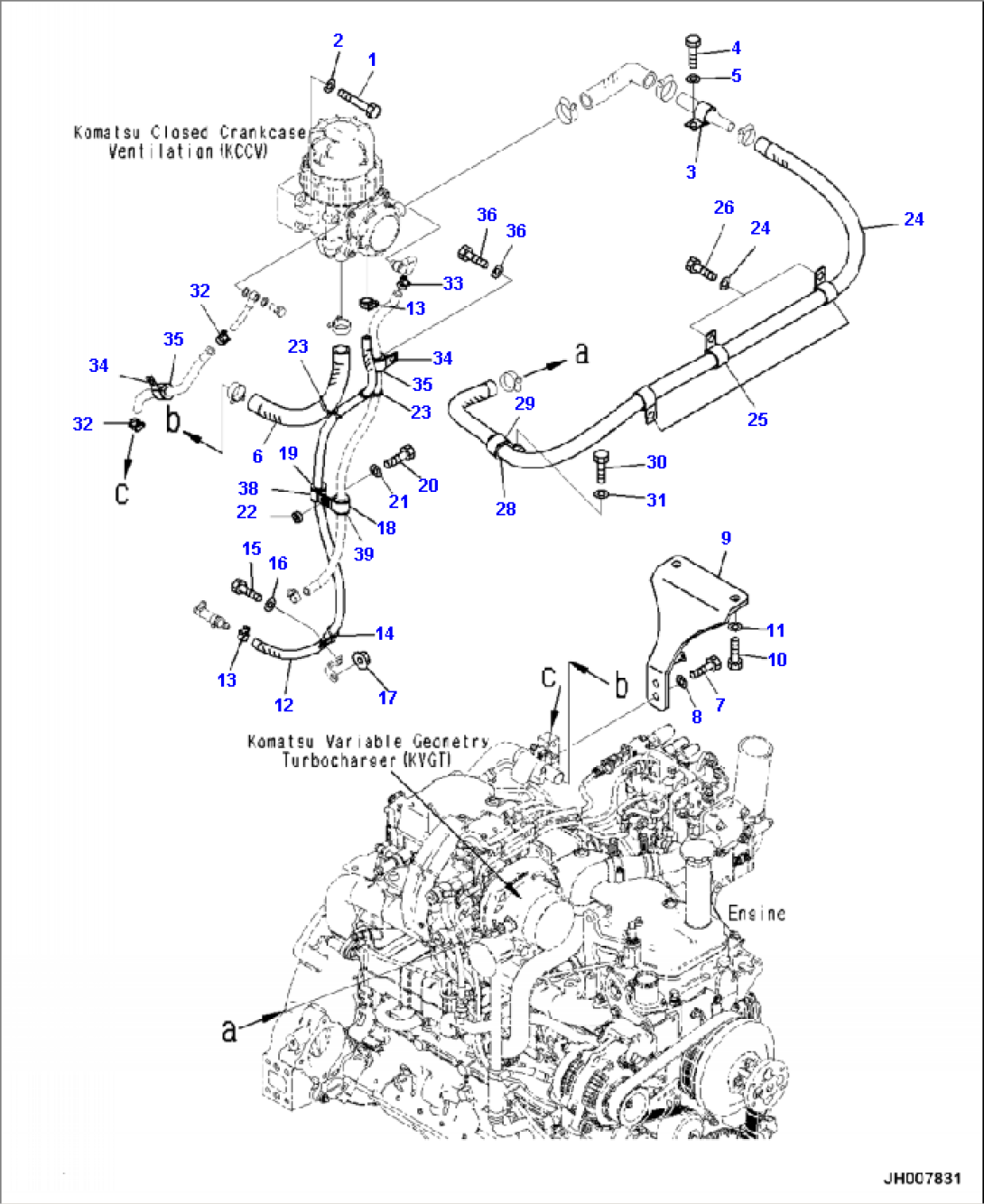

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81070 | BOLT | ||
| 2 | 01643-31032 | WASHER | ||
| 3 | 04434-52512 | CLIP | ||
| 4 | 01010-81230 | BOLT | ||
| 5 | 01643-31232 | WASHER | ||
| 6 | 2A5-01-11814 | HOSE | ||
| 7 | 01010-81230 | BOLT | ||
| 8 | 01643-31232 | WASHER | ||
| 9 | 206-54-31451 | BRACKET | ||
| 10 | 01010-81230 | BOLT | ||
| 11 | 01643-31232 | WASHER | ||
| 12 | 2A5-01-11831 | HOSE | ||
| 13 | 07281-00197 | CLAMP | ||
| 14 | 04434-51608 | CLIP | ||
| 15 | 01010-80825 | BOLT | ||
| 16 | 01643-30823 | WASHER | ||
| 17 | 01584-00806 | NUT | ||
| 18 | 04434-52310 | CLIP | ||
| 19 | 2A5-01-11580 | CUSHION | ||
| 20 | 01010-80825 | BOLT | ||
| 21 | 01643-30823 | WASHER | ||
| 22 | 22N-957-1420 | COLLAR | ||
| 23 | 134-03-61410 | BAND | ||
| 24 | 2A5-01-11821 | HOSE | ||
| 25 | 2A5-01-11210 | CLIP | ||
| 26 | 01010-81230 | BOLT | ||
| 27 | 01643-31232 | WASHER | ||
| 28 | 07095-40627 | CUSHION | ||
| 29 | 04434-53412 | CLIP | ||
| 30 | 01010-81230 | BOLT | ||
| 31 | 01643-31232 | WASHER | ||
| 32 | 07281-00197 | CLAMP | ||
| 33 | 07281-00197 | CLAMP | ||
| 34 | 04434-52312 | CLIP | ||
| 35 | 2A5-01-11580 | CUSHION | ||
| 36 | 01010-81230 | BOLT | ||
| 37 | 01643-31232 | WASHER | ||
| 38 | 04434-52310 | CLIP | ||
| 39 | 2A5-01-11580 | CUSHION |
